KWS 5260..

Flush pull set for glass sliding doors

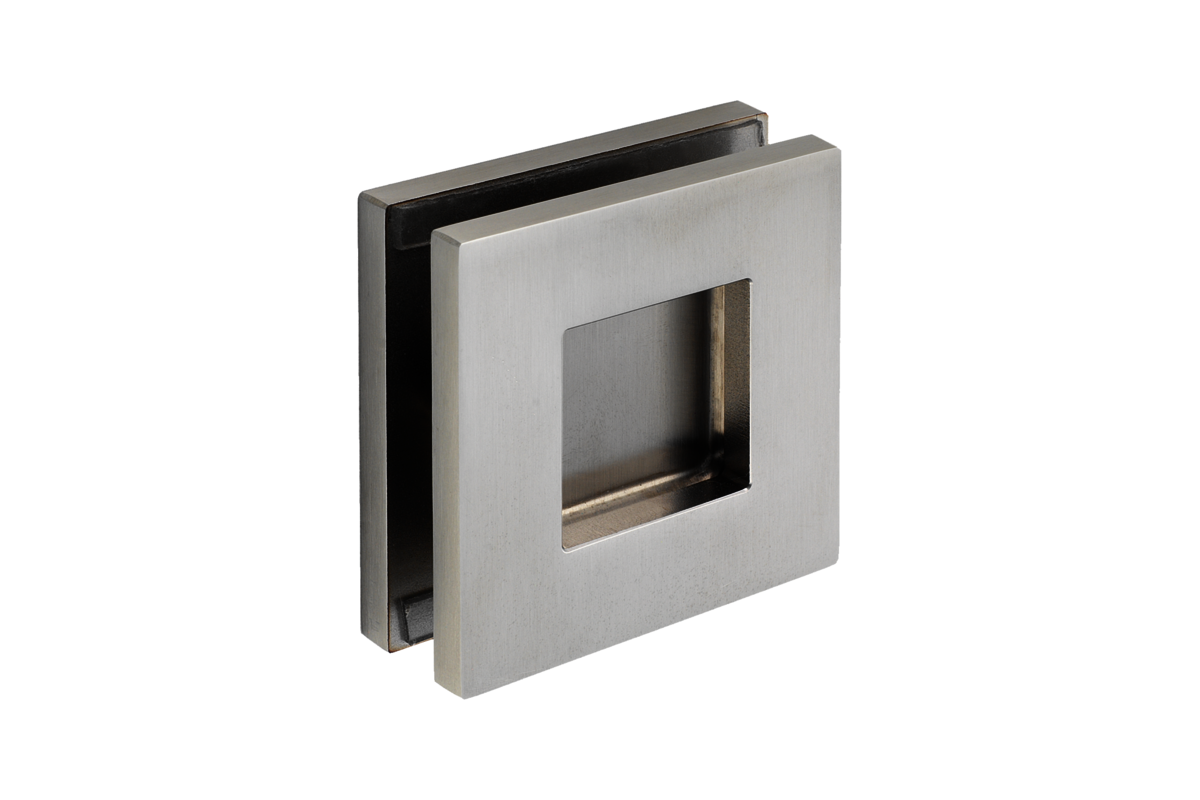

Picture shows KWS 5260.82

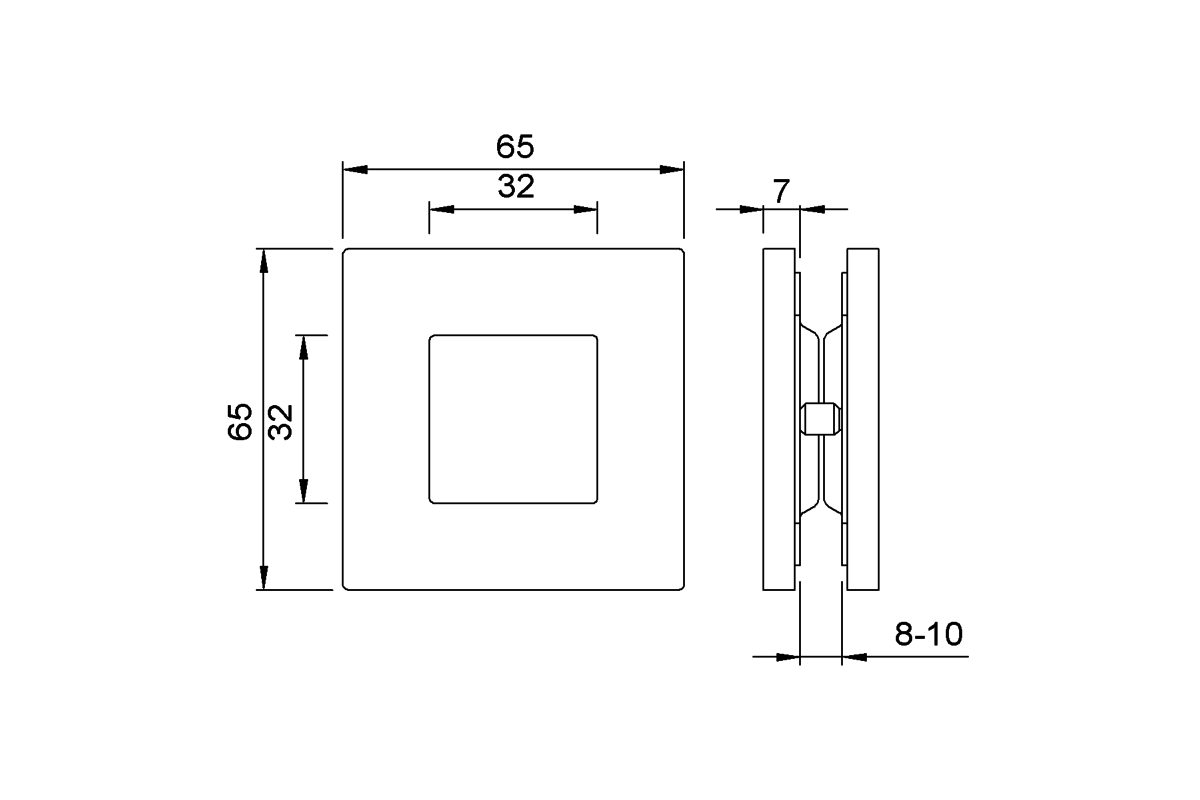

Drawing shows KWS 5260..

Do you have questions regarding the product?
We are happy to advise you!

Dimensions

Please make a new selection.

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 5260..
Flush pull set for glass sliding doors
recessed grip
to be pasted on the door
drilling of the door is required

Material
stainless steel

Dimensions
65 x 65 mm

Door thickness
from 8 to 10 mm

Unit weight
0,333 kg
Installation
Bore diameter: Ø 50 mm
Clean the door (e.g. with special UV cleaner, acetone or isopropanol). Install female part: Remove foil from the adhesive strips, align the flush part angularly (with an angle gauge or auxiliary lines) and stick it on with the bore hole in the centre. Install spindle part: Remove foil from the adhesive strips, align the flush part by the guide pins and stick it on. Press both flush parts firmly, especially on the adhesive strips.
Once attached, the flush parts should not be removed.
The adhesive strips must cure for 24 hours.
Downloads
Product drawing (DWG)
