HELM 98- SP

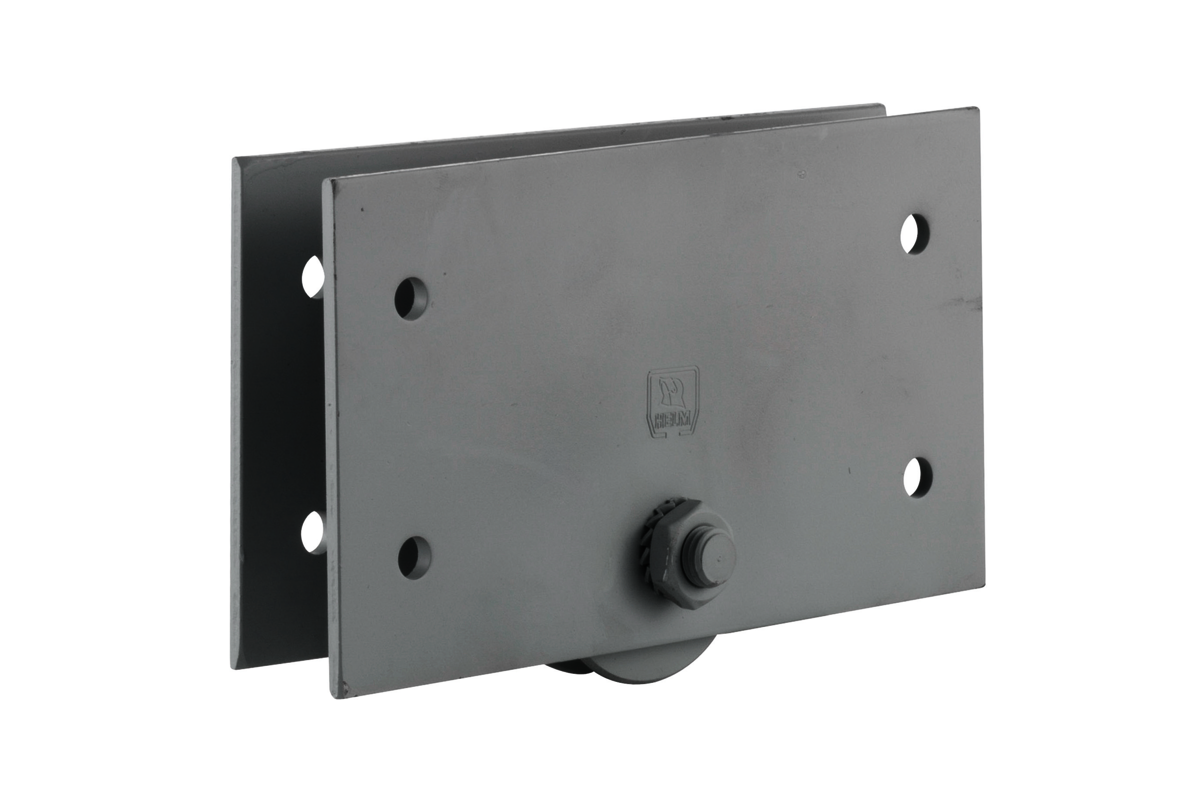

Steel roller with side plates
- for manually operated gates, HELM 984 SP also for electrically operated gates
- bottom running
- with one ball bearing (HELM 981 SP) or two ball bearings (HELM 982 SP / 983 SP / 984 SP)
Material
steel
Load
max. 250 kg (HELM 981 SP / 098112)
max. 375 kg (HELM 982 SP / 098212)
max. 500 kg (HELM 983 SP / 098312)
max. 750 kg (HELM 984 SP / 098412)

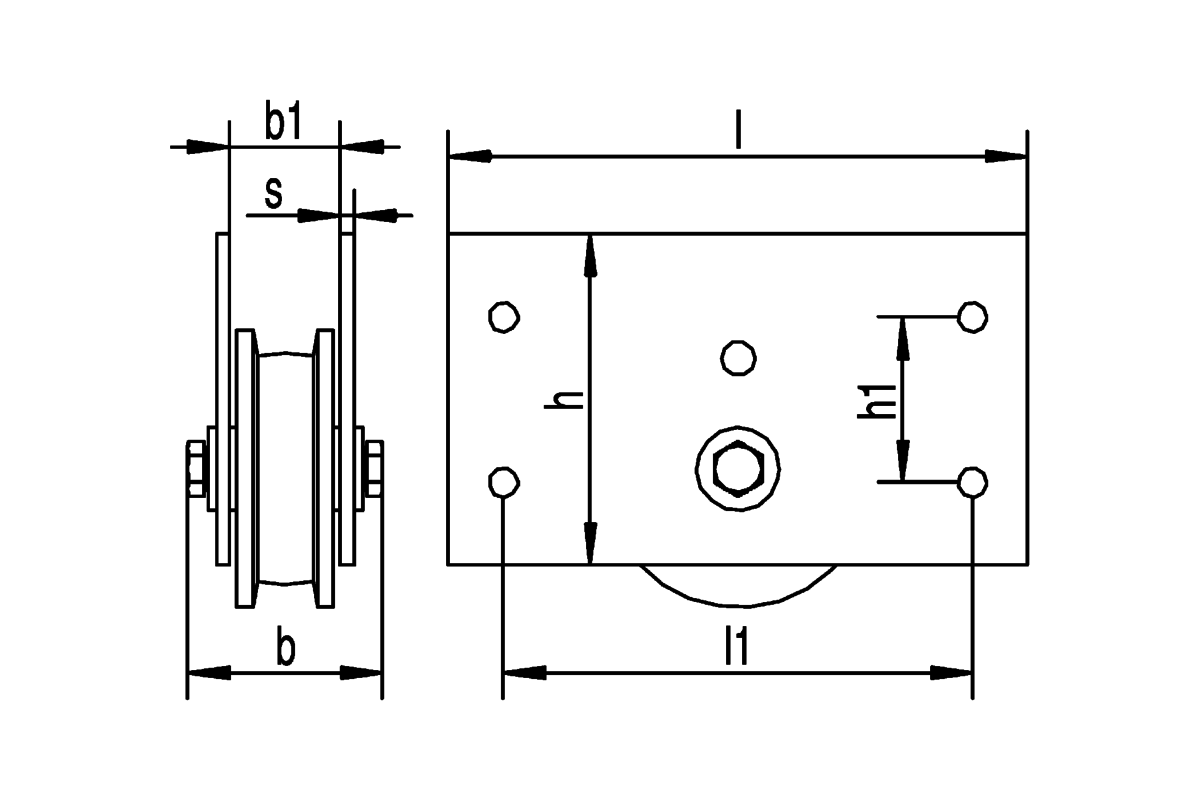

Dimensions (in mm)
| Article Art. no. | HELM 981 SP HELM 098112 | HELM 982 SP HELM 098212 | HELM 983 SP HELM 098312 | HELM 984 SP HELM 098412 |
| b | 59 | 57,2 | 70,6 | 80,6 |
| b1 | 24 | 33 | 40 | 46 |
| d | Ø 8,5 | Ø 8,5 | Ø 10,5 | Ø 10,5 |
| h | 100 | 100 | 120 | 120 |
| h1 | 50 | 50 | 60 | 60 |
| l | 180 | 180 | 210 | 210 |
| l1 | 140 | 140 | 170 | 170 |
| s | 4 | 4 | 5 | 5 |
