HELM 140 Telescopic set timber
for double leaf telescopic systems up to 140 kg/leaf
- for telescopically sliding interior doors made of timber: The leading leaf pulls the following leaf into the desired position by means of latch and spring carriers
- contains parts for two leaves
- note: overlapping of the leaves of 70 mm is required

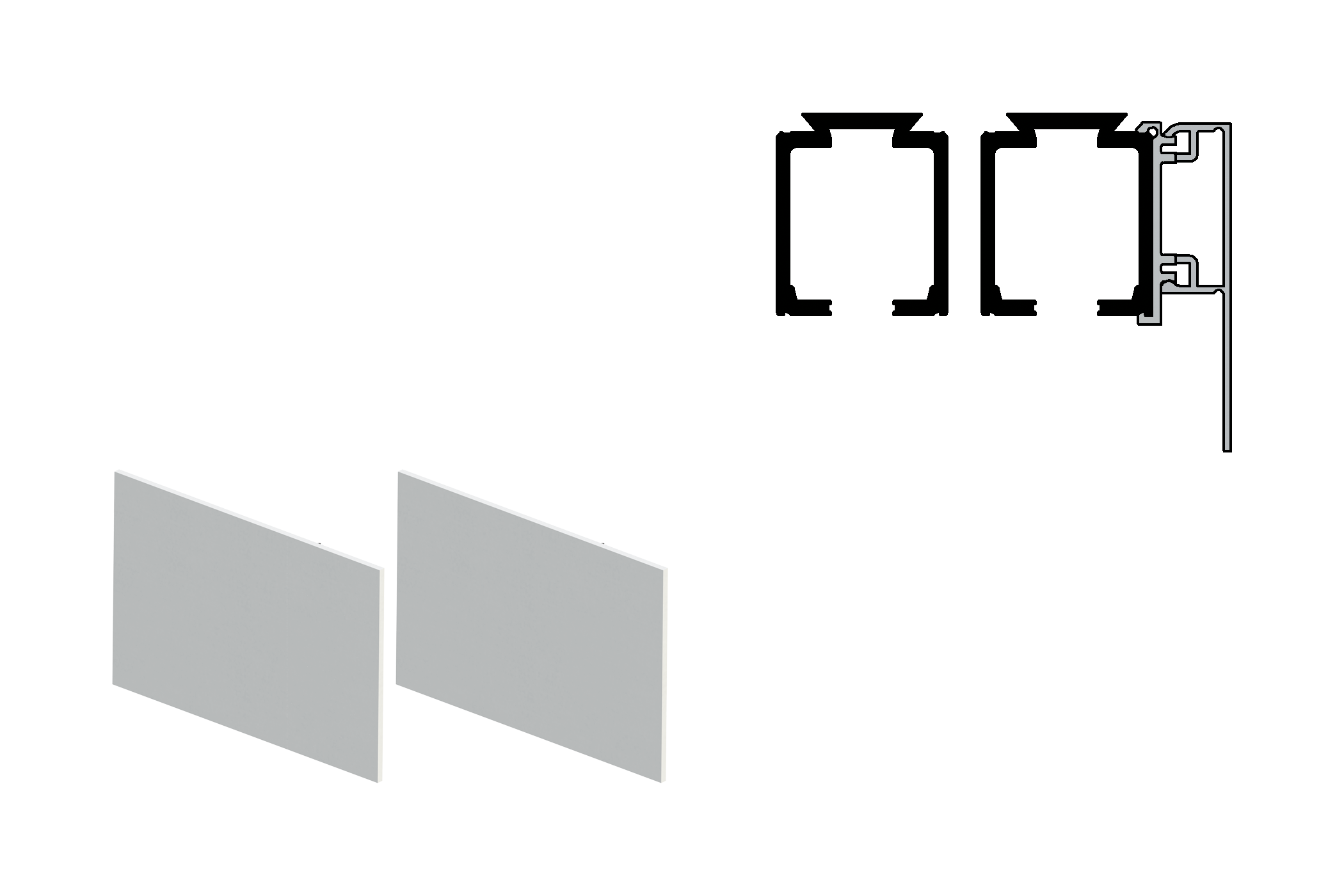

- tracks, clip-on pelmet, end caps and U-tracks available separately
Leaf weight
max. 140 kg
Leaf thickness
from 40 to 50 mm
Set contents
| Quantity | Article |
| 4 pc. | HELM 140-91 trolley with ball bearing, M8 x 45 support screw and flange |
| 1 pc. | HELM spring carrier left |
| 1 pc. | HELM spring carrier right |
| 1 pc. | HELM latch carrier |
| 4 pc. | HELM 140 P door catcher |
| 1 pc. | HELM SmartGuide H 316 S |
| 1 pc. | HELM SmartGuide H 316 S with angle bracket, 45 mm |
