HELM 140 Telescopic set timber
for triple leaf telescopic systems up to 140 kg/leaf
- for telescopically sliding interior doors made of timber: The leading leaf pulls the two following leaves into the desired position by means of latch and spring carriers
- contains parts for three leaves
- note: overlapping of the leaves of 70 mm per leaf is required

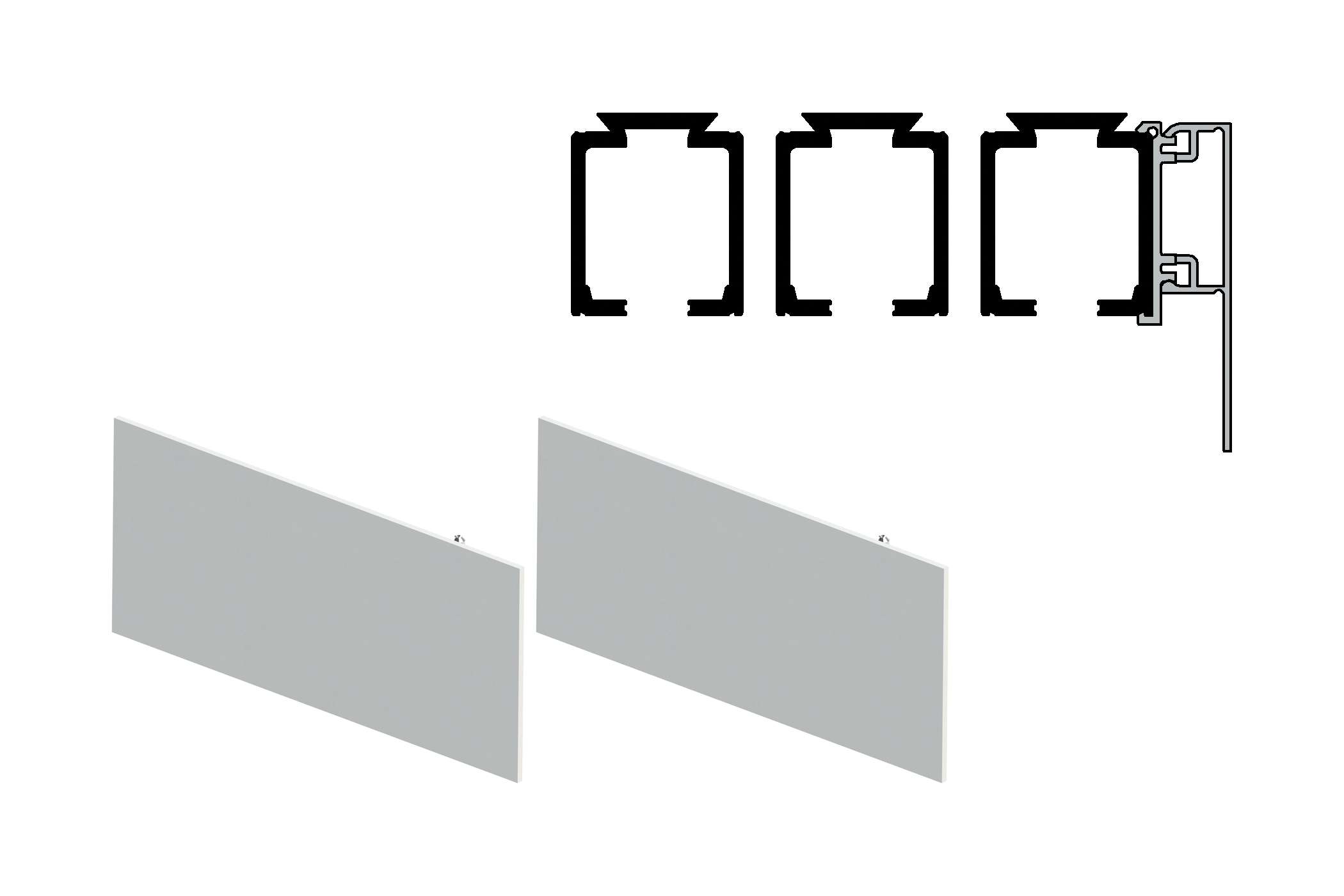

- tracks, clip-on pelmet, end caps and U-tracks available separately
Leaf weight
max. 140 kg
Leaf thickness
from 40 to 50 mm
Set contents
Quantity | Article |
6 pc. | HELM 140-91 trolley with ball bearing, M8 x 45 support screw and flange |
2 pc. | HELM spring carrier left |
2 pc. | HELM spring carrier right |
2 pc. | HELM latch carrier |
6 pc. | HELM 140 P door catcher |
1 pc. | HELM SmartGuide H 316 S |
2 pc. | HELM SmartGuide H 316 S with angle bracket, 45 mm |
