HELM 73 Set glass
for leaves up to 80 kg, 8/8,76 and 10/10,76 mm TSG/LSG
- for interior sliding doors made of tempered safety glass (TSG) and laminated safety glass (LSG)
- contains parts for one leaf
- tested according to DIN EN 1527:2013 (200.000 cycles)
- track available separately
Leaf weight
max. 80 kg
Leaf thickness
8/8,76 and 10/10,76 mm TSG/LSG*

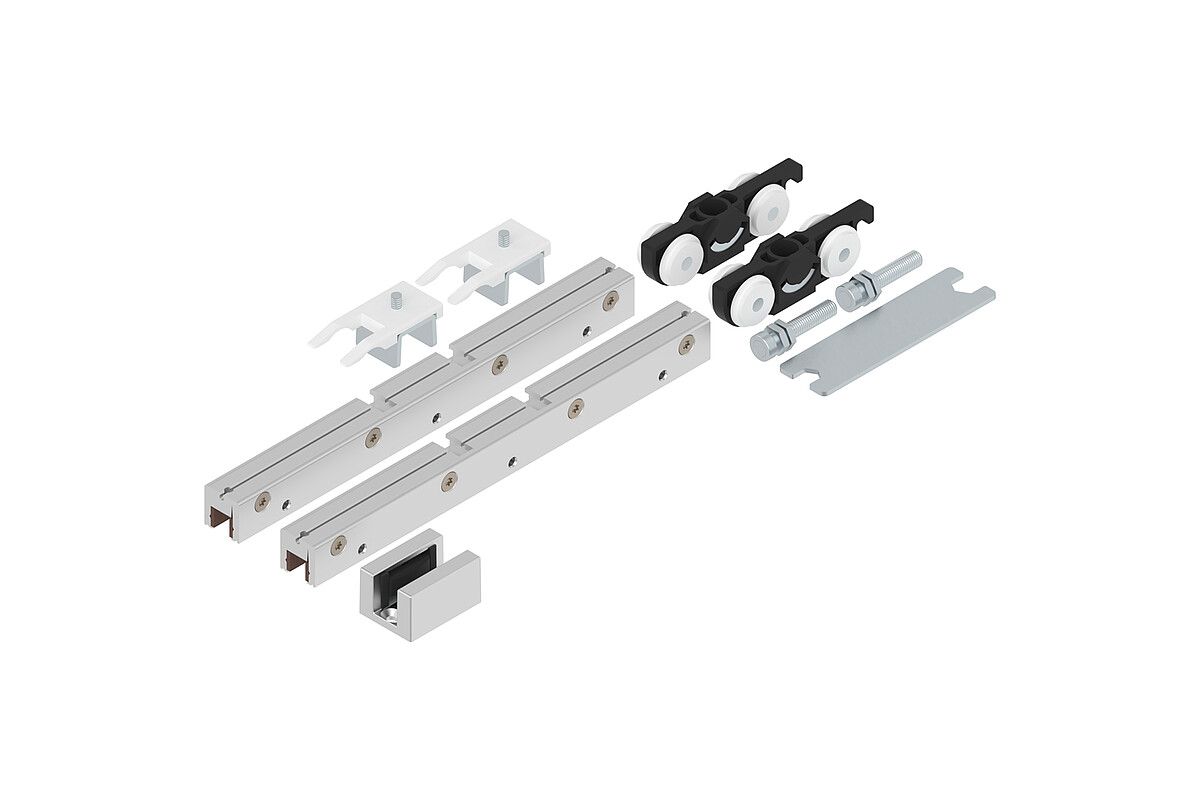

Set contents
| Quantity | Article |
| 2 pc. | HELM 73 trolley with ball bearing and M8 x 30 support screw |
| 2 pc. | HELM glass clamp, 250 x 22 mm, for 8/8,76 and 10/10,76 mm TSG/LSG* |
| 2 pc. | HELM 65 P door catcher |
| 1 pc. | HELM SmartGuide G |
*when using LSG the glass clamp must be glued on with two-component adhesive (not included in the set)
