HELM MK-L 80 G 111
Sliding door system for leaves up to 80 kg, 8/10 mm TSG, wall installation with wall brackets
- for interior sliding doors made of tempered safety glass (TSG)
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 80 kg
Leaf thickness
8/10 mm TSG
Leaf width
min. 650 mm (with damper and soft closing device on one side)
min. 860 mm (with damper and soft closing device on both sides)

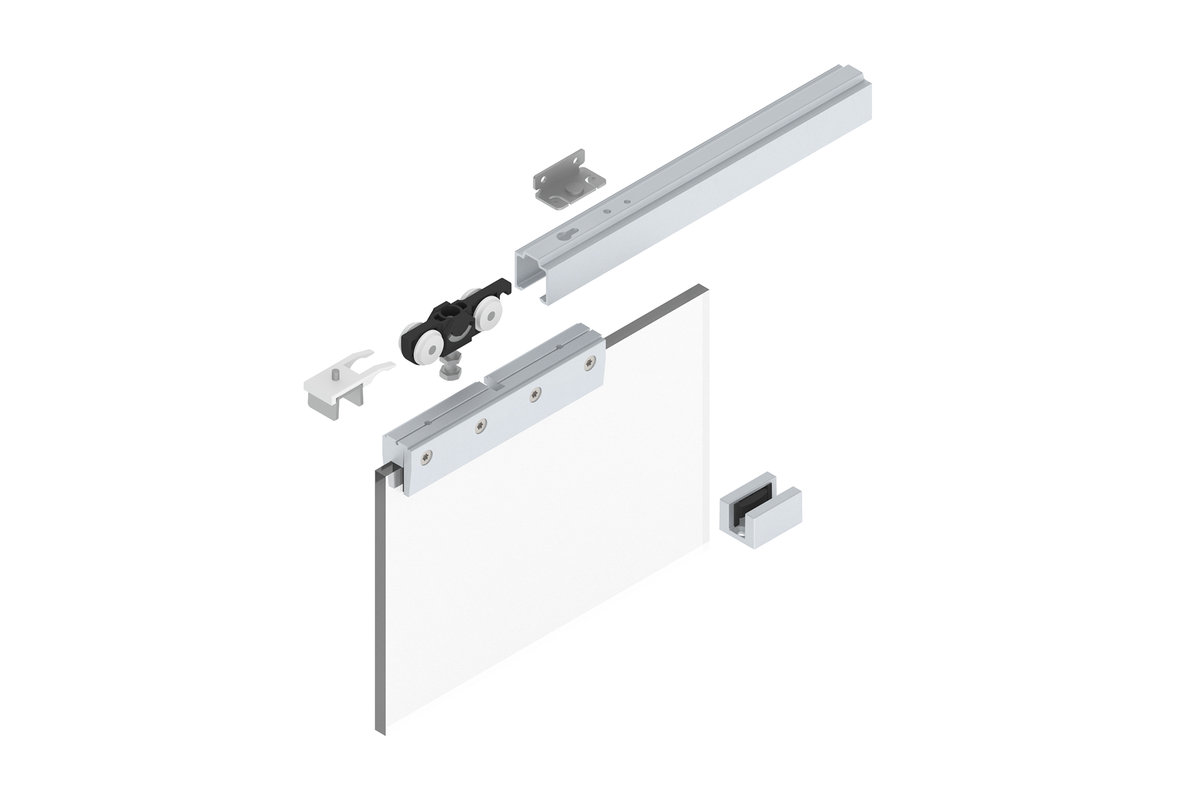

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM 53/73 track, perforated on top |
| * pc. | * pc. | HELM 61/01 wall bracket |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing and M8 x 35 support screw |
| 2 pc. | 4 pc. | HELM glass clamp, 180 x 40 mm, for 8/10 mm TSG |
| 2 pc. | 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM SmartGuide G |
*quantity depends on track length
