HELM MK-L 80 H 120

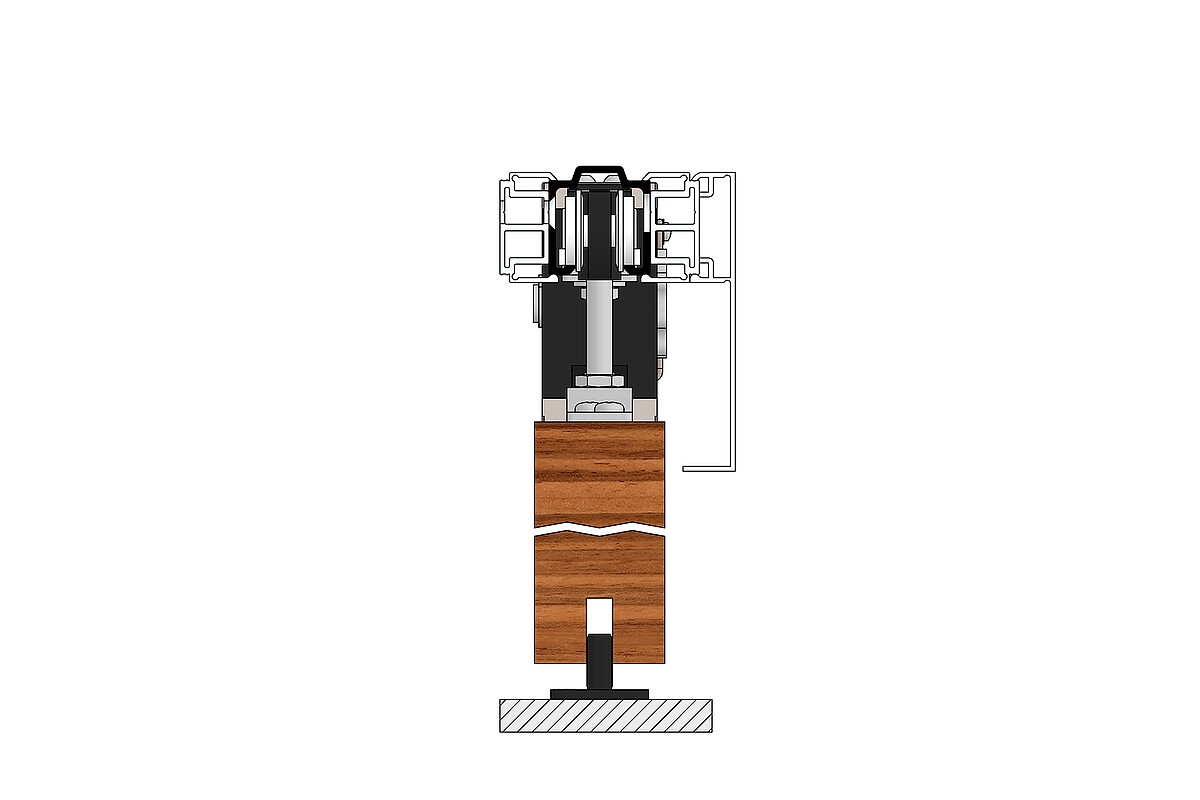

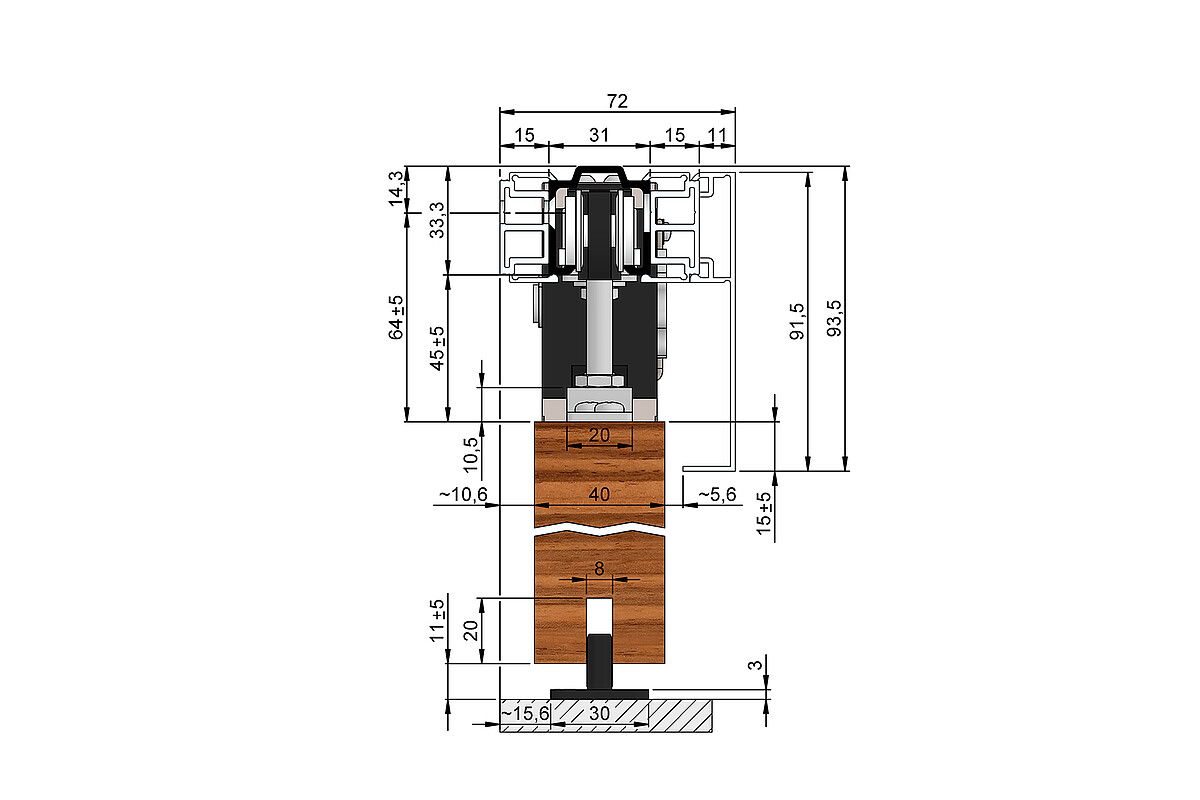

Sliding door system for leaves up to 80 kg, SmartClose door closer, wall installation with 15 mm spacer profile and pelmet
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- SmartClose: door closer enables the door to close automatically (braking force adjustable)
- SmartGuide: clearance-free bottom guide to reduce or avoid rattling noises, suitable for 8 mm groove
Leaf weight
max. 80 kg
Leaf thickness
from 20 mm
Leaf width
min. 750 mm (with damper and soft closing device on one side)
min. 960 mm (with damper and soft closing device on both sides)

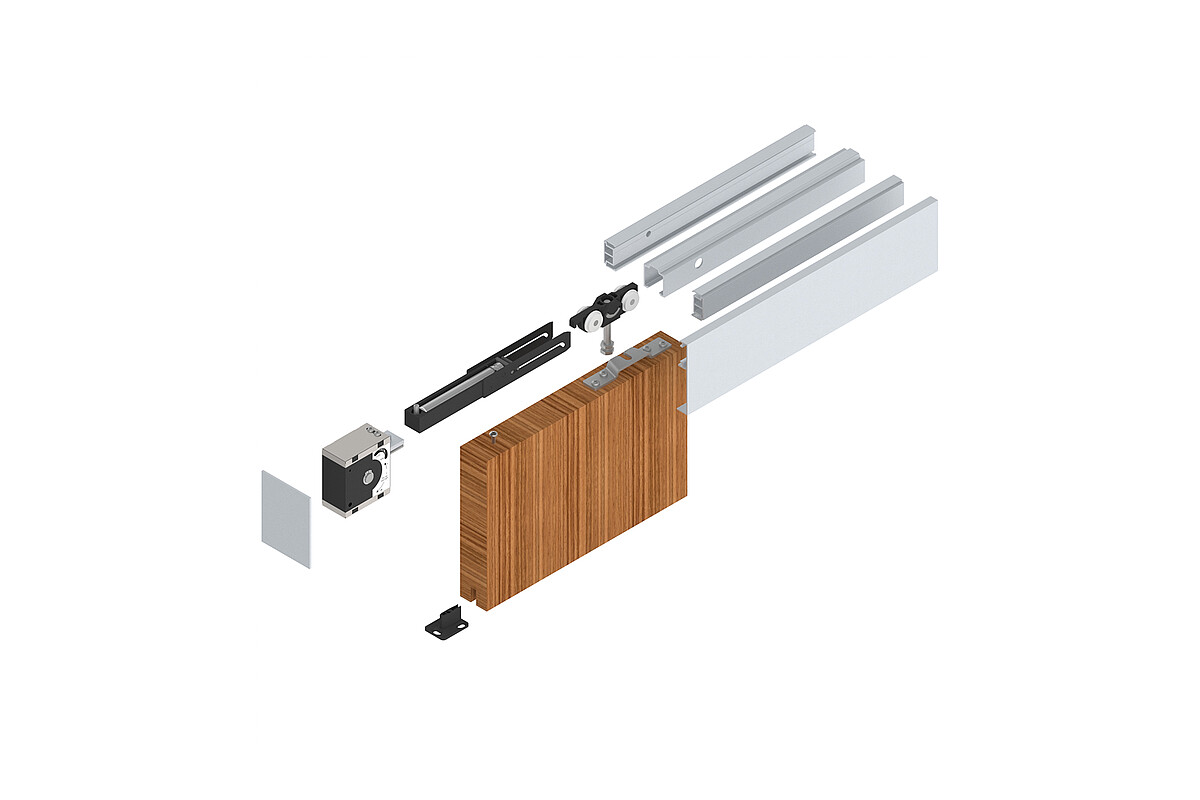

Set contents
| Quantity | Article |
| 1 pc. | HELM 53/73 track, drilled on the side |
| 1 pc. | HELM spacer profile, 15 mm, drilled |
| 1 pc. | HELM clip-on pelmet, 91,5 mm, with spacer profile, 15 mm |
| 1 pc. | HELM end cap set |
| 1 pc. | HELM SmartClose FG 80 door closer |
| 2 pc. | HELM 73 trolley with ball bearing, M8 x 60 support screw and flange |
| 1 pc. each or 2 pc. | HELM 65 P door catcher, HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on one side") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | HELM SmartGuide H 212 S |
