HELM MK-L 80 H 122
Sliding door system for leaves up to 80 kg, minimal headroom (ME-A), ceiling installation
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 80 kg
Leaf thickness
from 35 mm
Leaf width
min. 860 mm

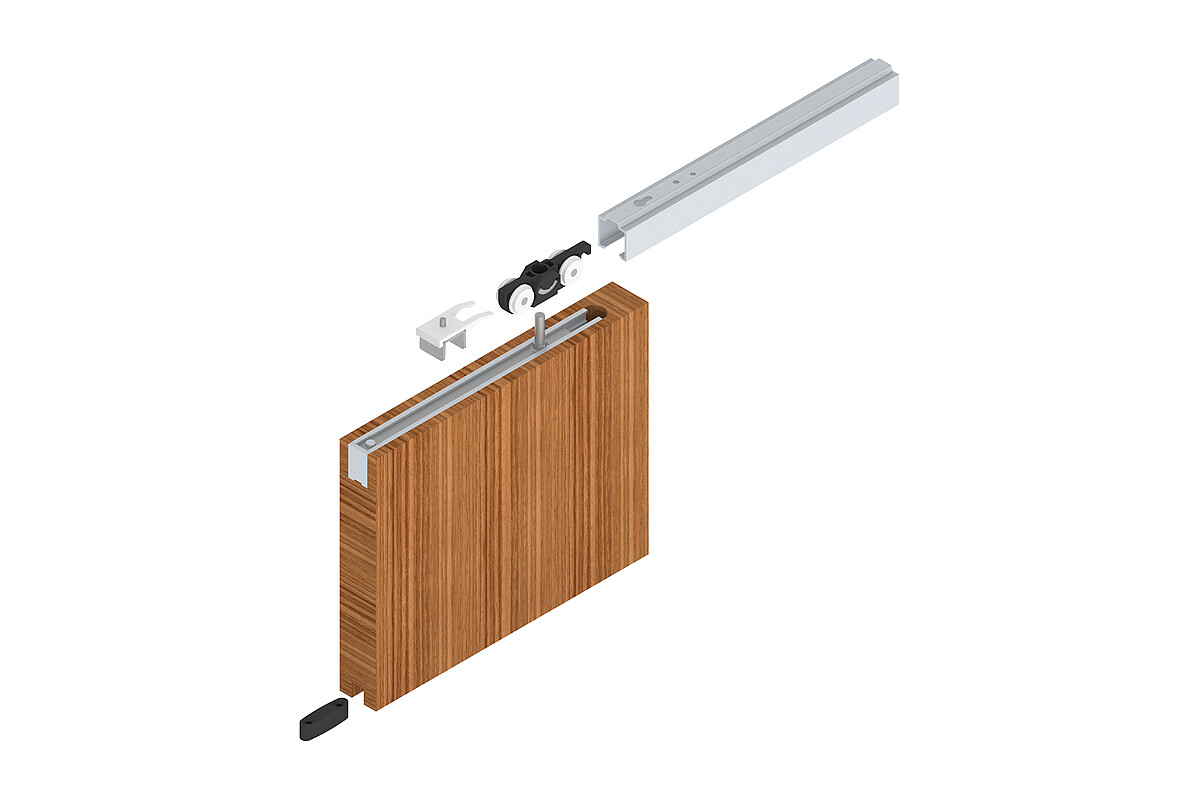

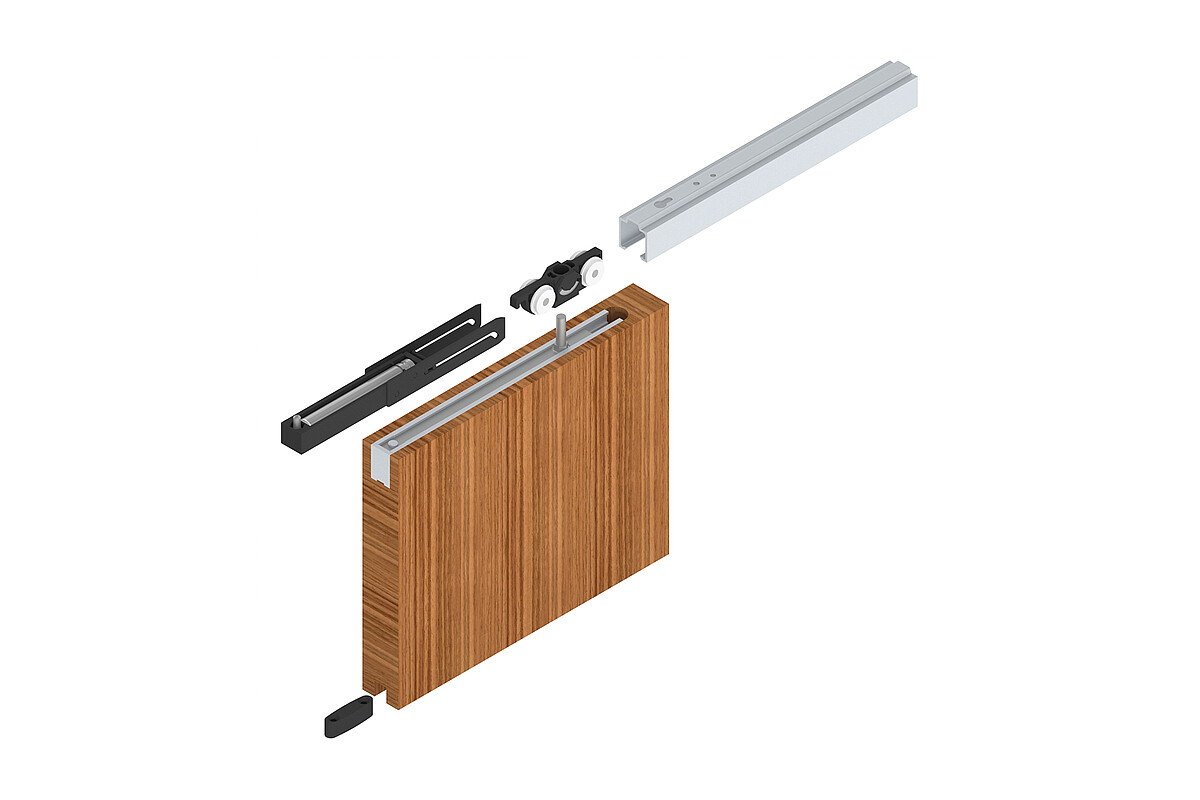

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM 53/73 track, perforated on top |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing |
| 2 pc. | 4 pc. | HELM ME-A suspension with support bolt (open-ended spanner included) |
| 2 pc. | 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM 216 bottom guide (mounting material included) |
