HELM MK-L 80 H 130
Sliding door system for double leaf telescopic systems up to 80 kg/leaf, ceiling installation
- for telescopically sliding interior doors made of timber: The leading leaf pulls the following leaf into the desired position by means of latch and spring carriers
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- SmartGuide: clearance-free bottom guide to reduce or avoid rattling noises
Leaf weight
max. 80 kg
Leaf thickness
from 30 to 40 mm
Leaf width
min. 740 mm (with door catcher on both sides)
min. 860 mm (with damper and soft closing device on both sides)
Set contents
| Quantity | Article |
| 2 pc. | HELM 53/73 track, perforated on top |
| 4 pc. | HELM 73 trolley with ball bearing, M8 x 35 support screw and flange |
| 1 pc. | HELM spring carrier left |
| 1 pc. | HELM spring carrier right |
| 1 pc. | HELM latch carrier |

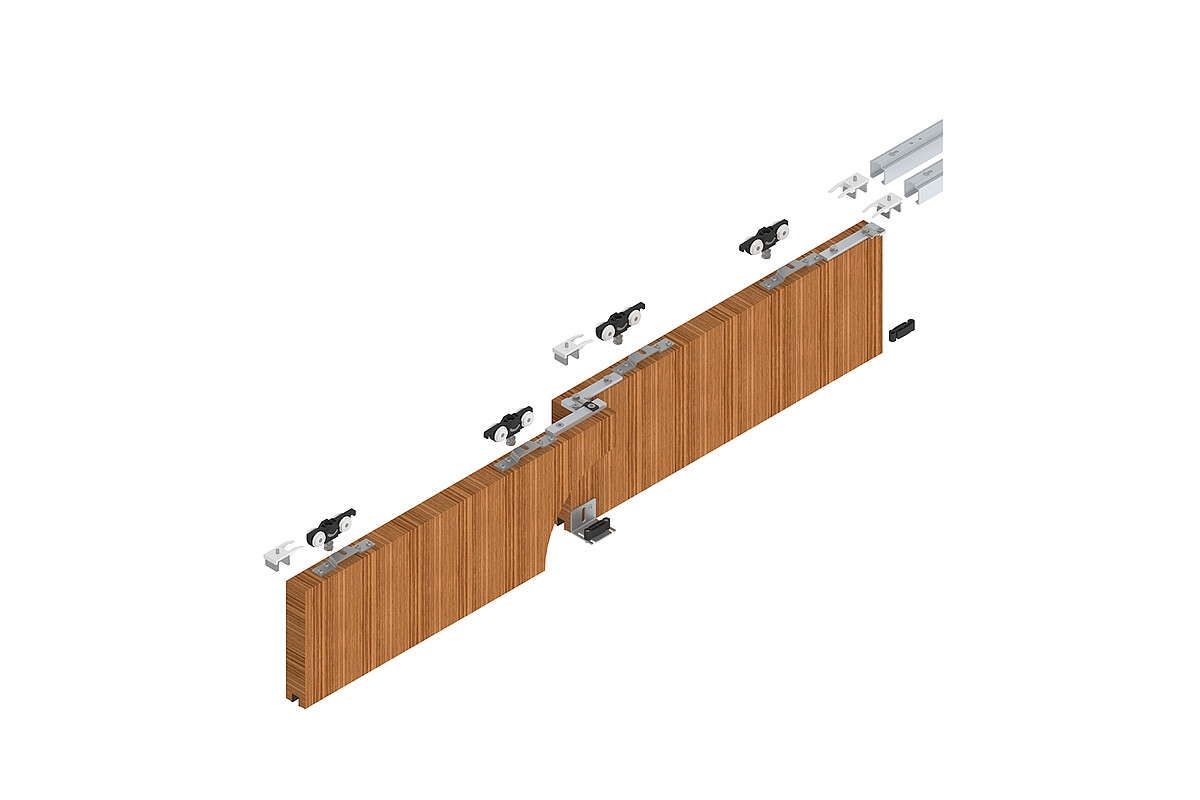

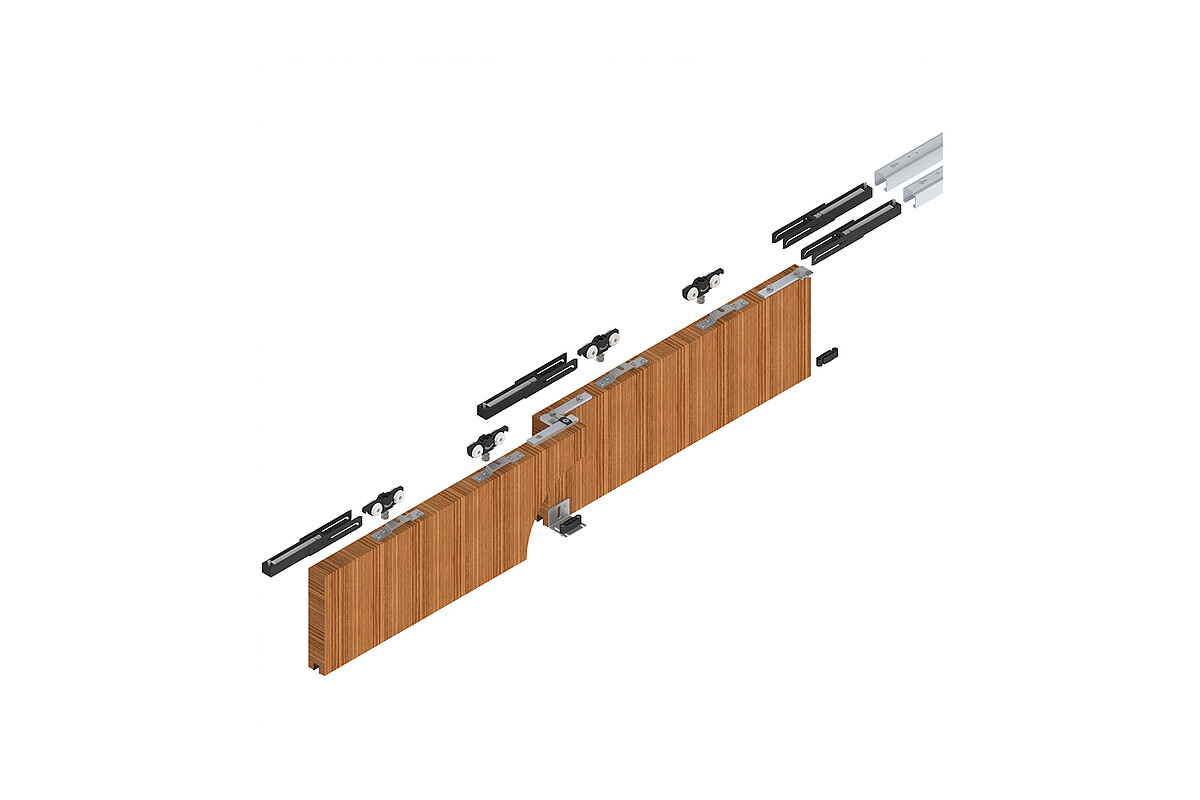

| 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| * pc. | HELM 240 K U-profile |
| 1 pc. | HELM SmartGuide H 216 S (mounting material included) |

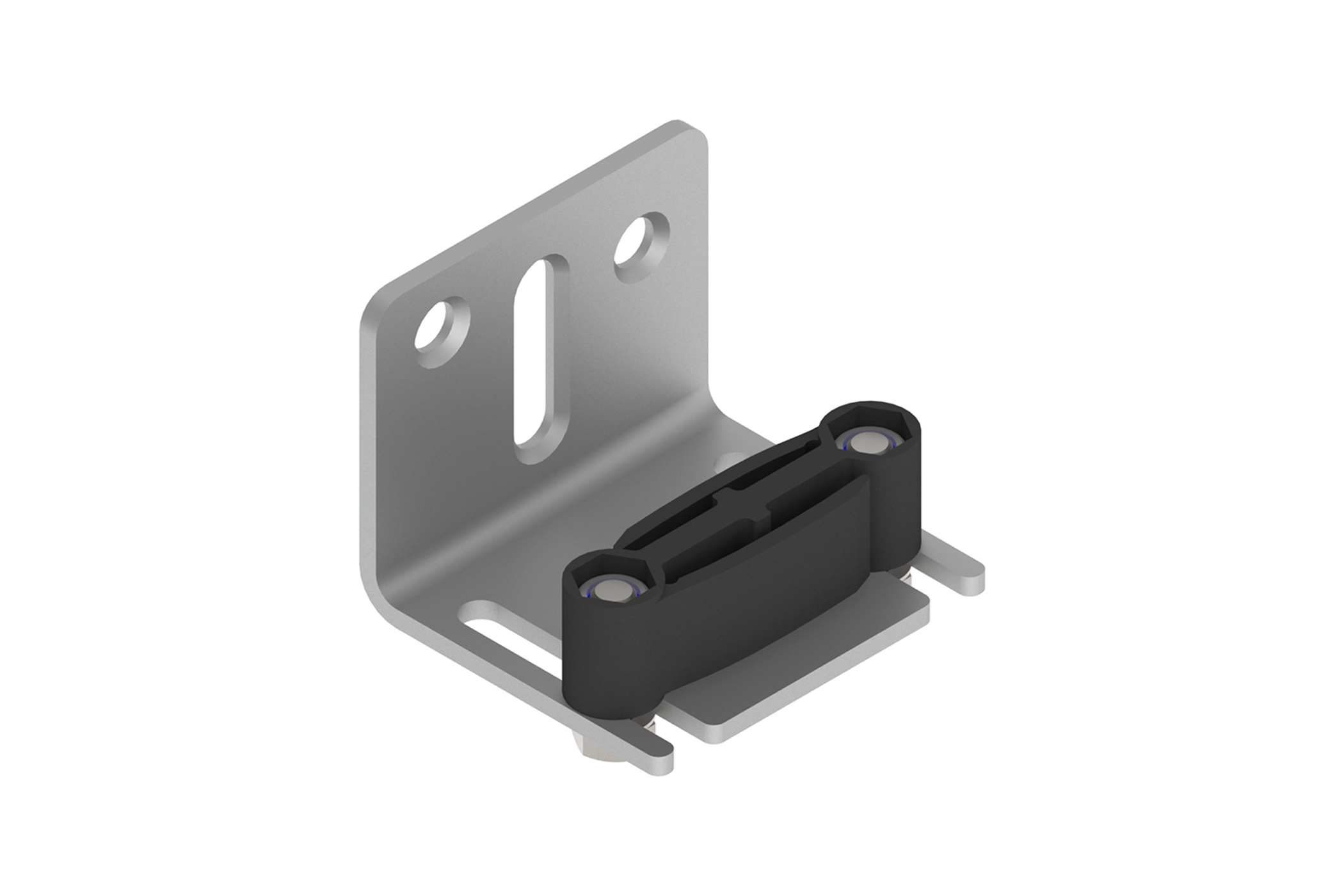

| 1 pc. | HELM SmartGuide H 216 S with angle bracket, 45 mm (mounting material included) |
*quantity depends on track length, must be cut to the width of the leaf
