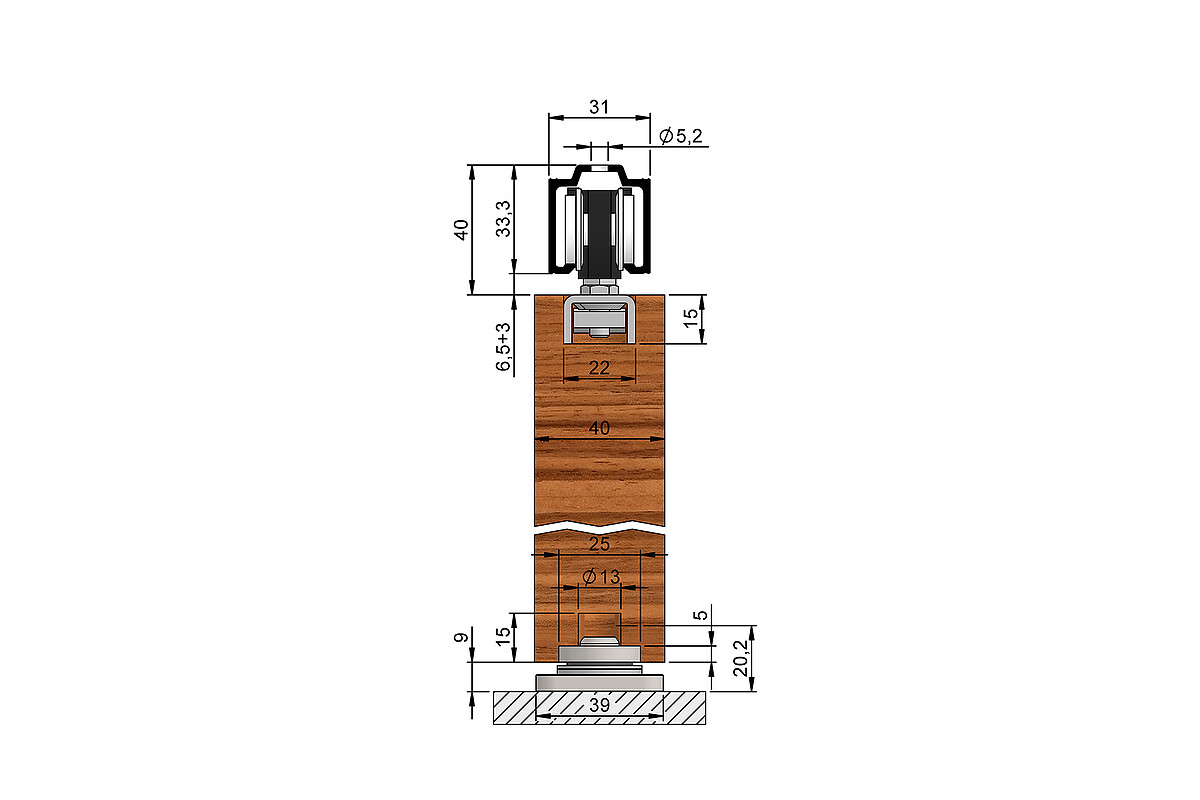

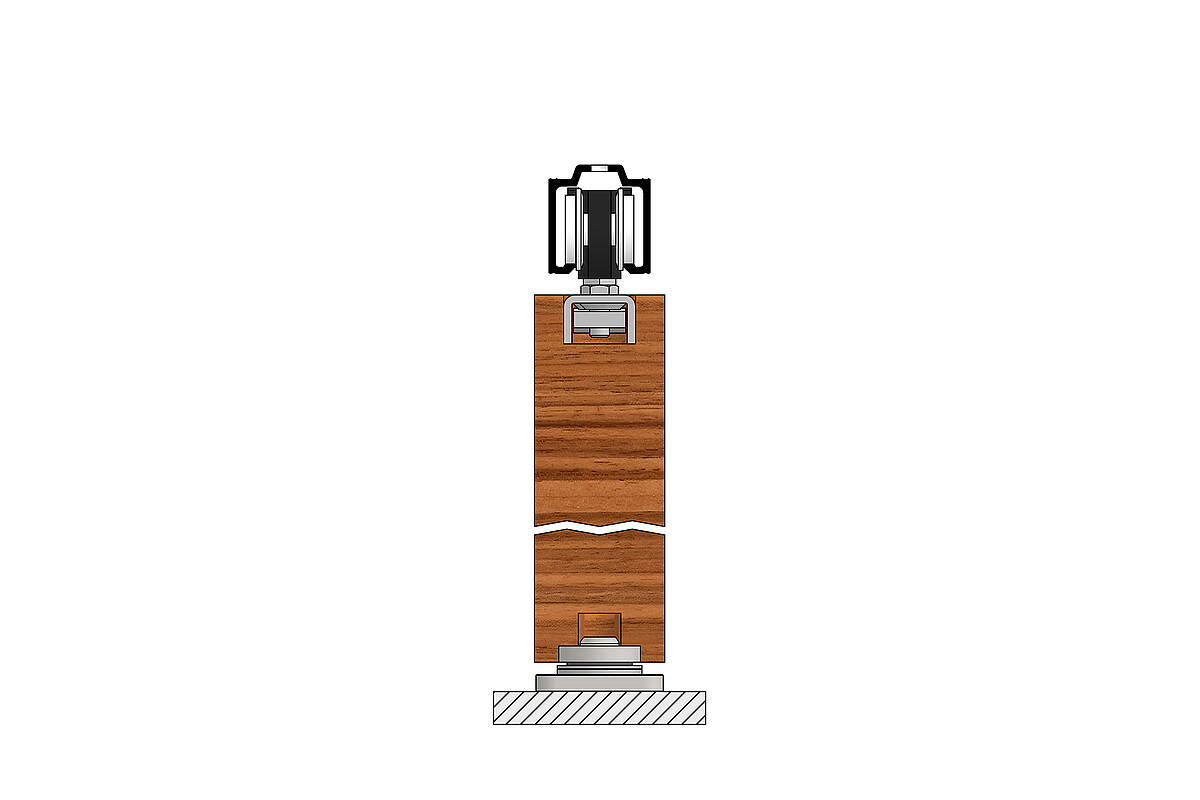

HELM MK-L 80 H 187
Folding door system for leaves up to 80 kg, with concealed hinges
- for interior doors made of timber
- space-saving: turns only 1/3 of the leaf width into the room, optimising space
- barrier-free:
- small rotating radius allows for easy and independent use with walking aids, rollators and wheelchairs
- lever handle always remains within reach
- compatible: can be used with metal (aluminum, steel) and timber door frames (timber frame, block frame)
Leaf weight
max. 80 kg
Leaf thickness
40 mm

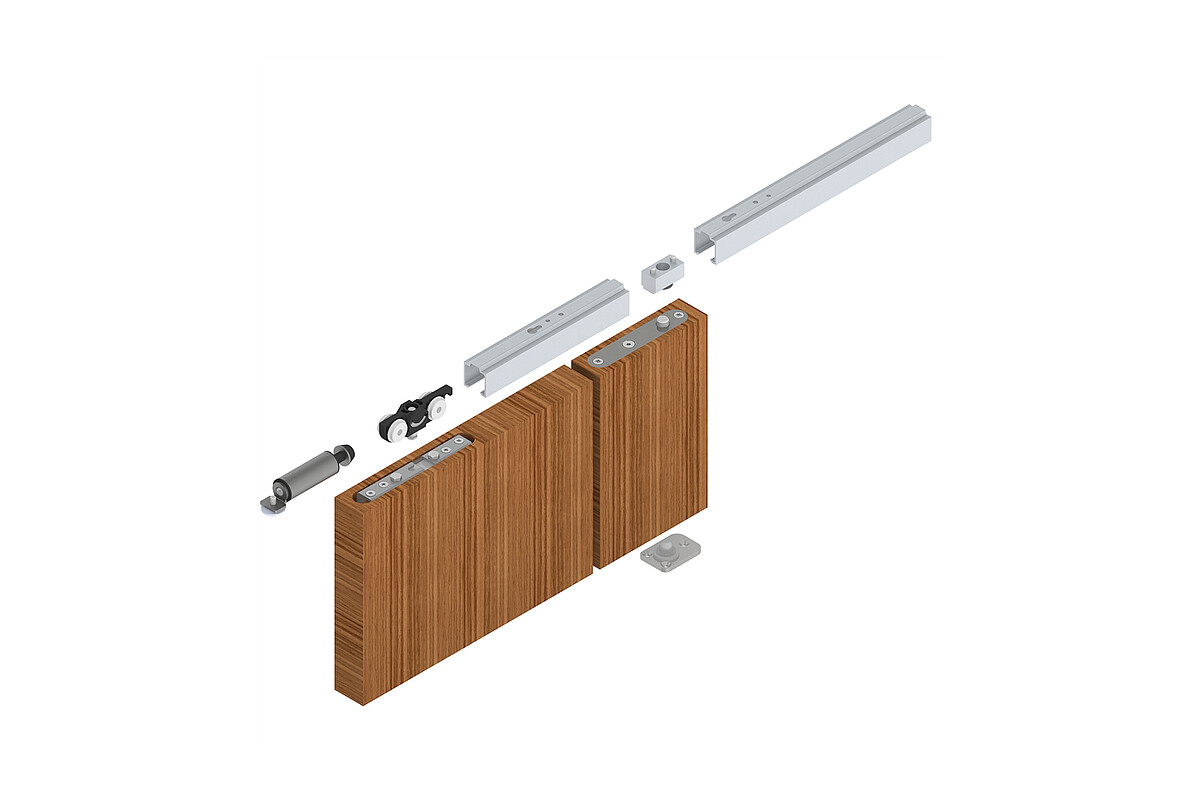

Set contents
| Quantity | Article |
| 1 pc. | HELM 53/73 track, perforated on top |
| 1 pc. | HELM 53/73 track, perforated on top, 200 mm |
| 1 pc. | HELM 73 trolley with ball bearing |
| 1 pc. | HELM 73 V flange with support bolt |
| 1 pc. | HELM door piston |
| 1 pc. | HELM fixed bearing |
| 1 pc. | KWS 6205 pivot hinge |
| 2 pc. | TECTUS TE 340 3D hinge |
