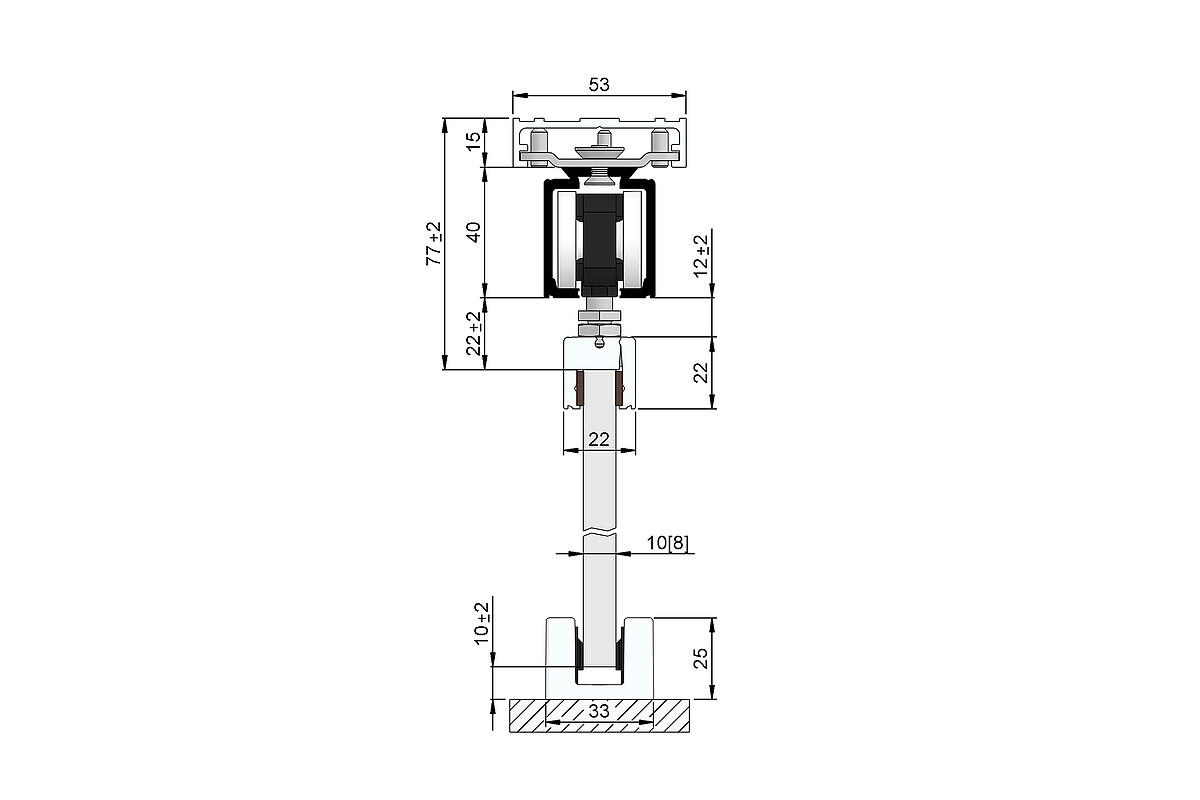

HELM MK-M 140 G 169
Sliding door system for leaves up to 140 kg, 8/8,76 and 10/10,76 mm TSG/LSG, wall pocket installation with WTR installation track, reversible
- for interior sliding doors made of tempered safety glass (TSG) and laminated safety glass (LSG)
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- WTR installation track: enables disassembly/assembly of the track at any time for maintenance, replacement and addition of components
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
- tested according to DIN EN 1527:2013 (200.000 cycles)
- note: WTR installation track is 25 mm longer than track(s)
Leaf weight
max. 140 kg
Leaf thickness
8/8,76 and 10/10,76 mm TSG/LSG*
Leaf width
min. 750 mm (with damper and soft closing device on one side)
min. 900 mm (with damper and soft closing device on both sides)

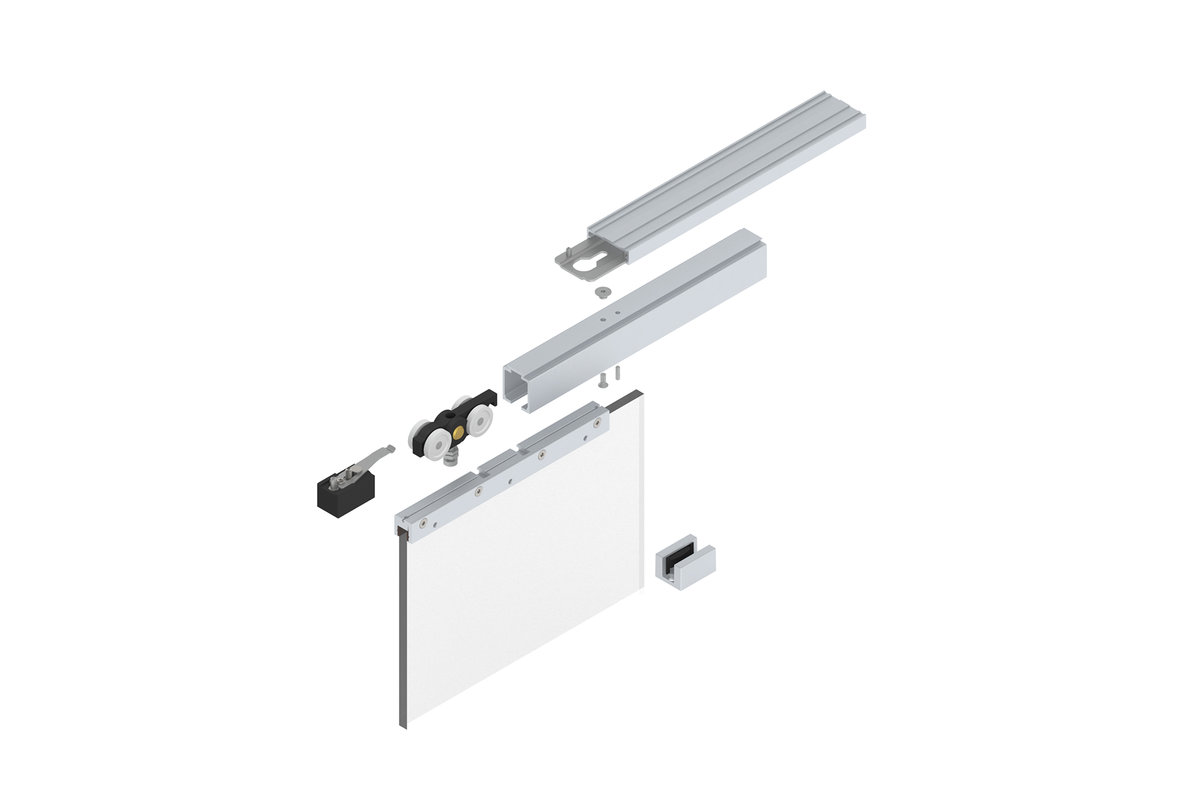

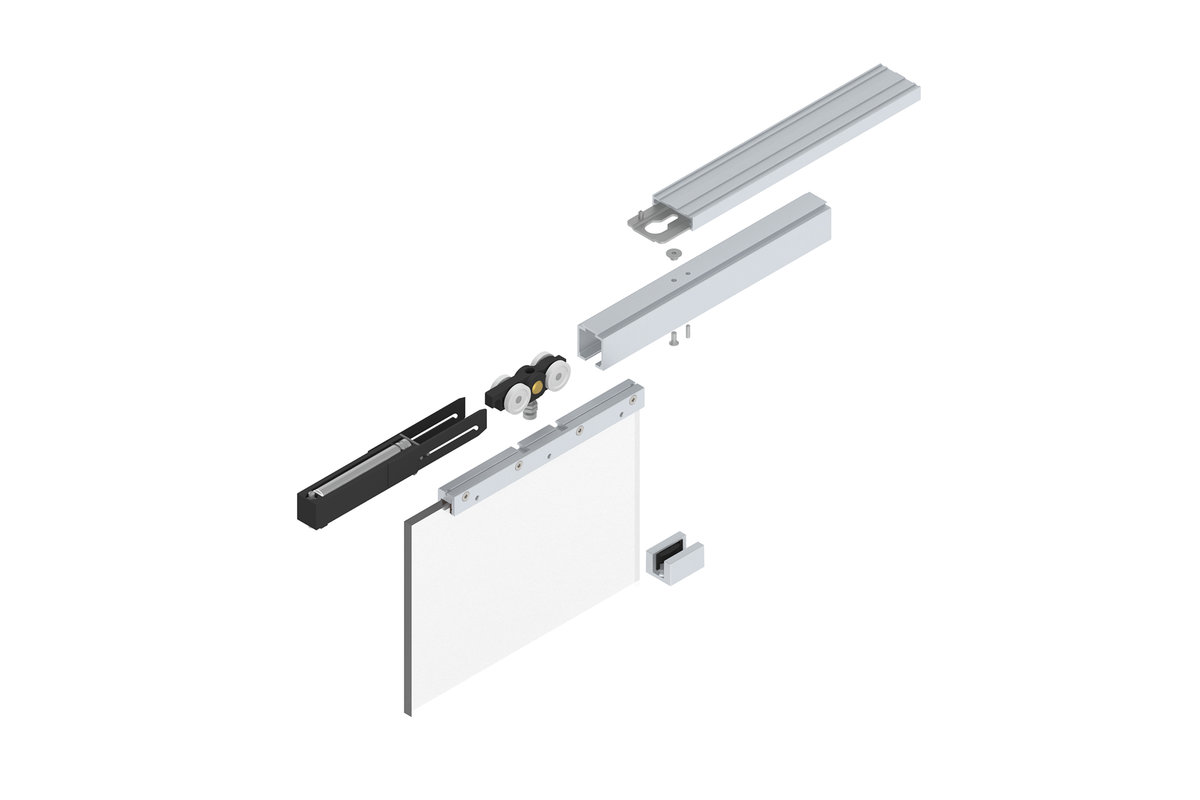

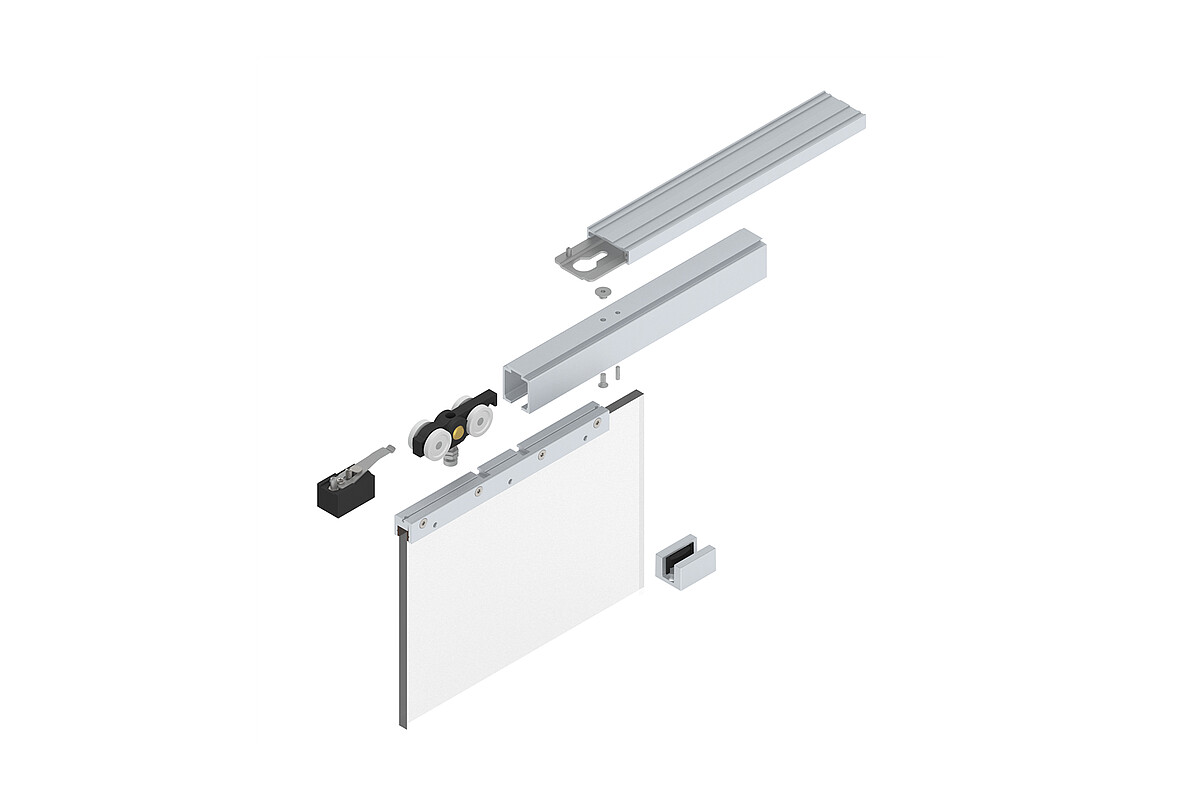

Set contents
| Quantity 1 leaf | 2 leaves | Article |

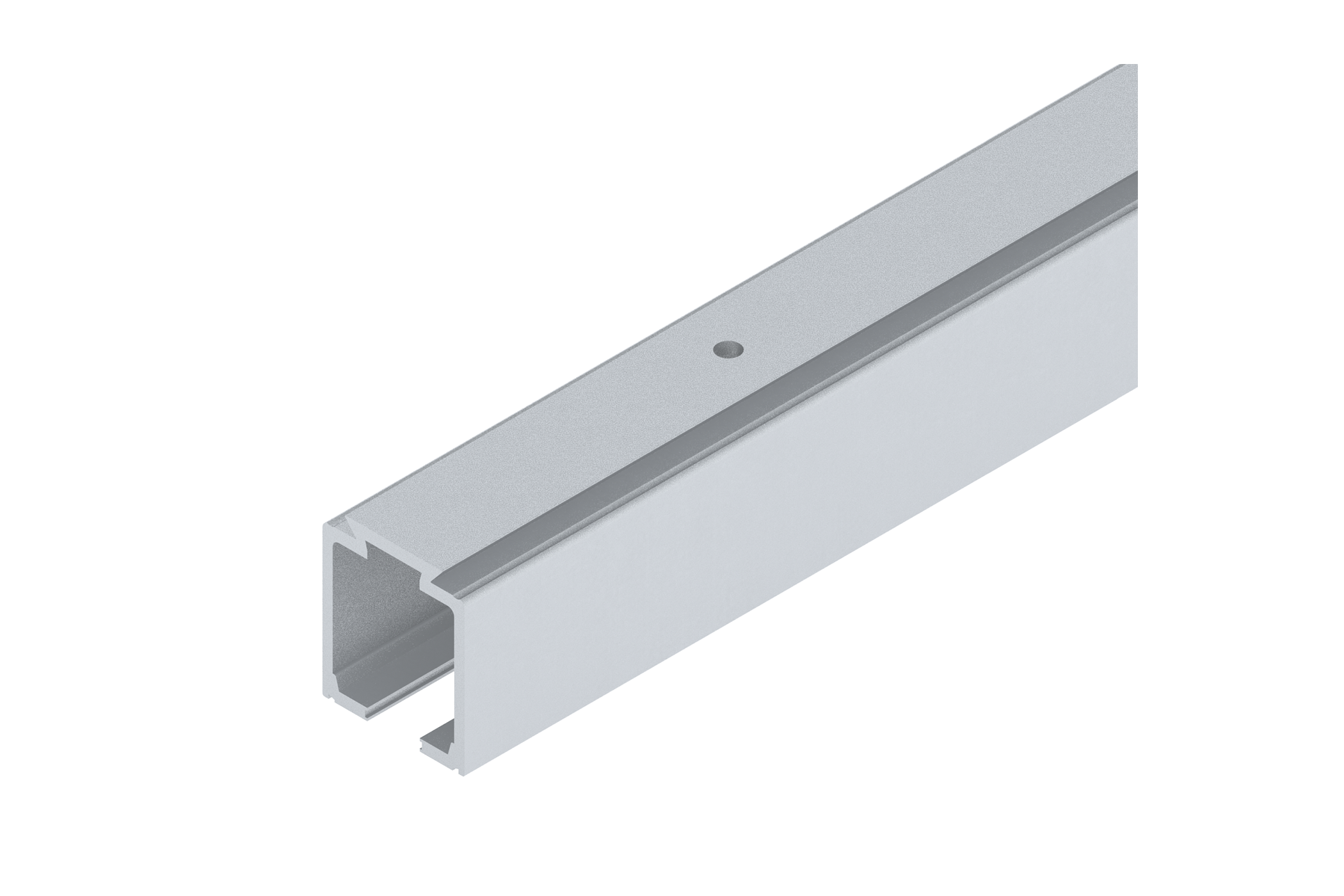

| 1 pc. | 2 pc. | HELM 140 WT track, perforated on top |

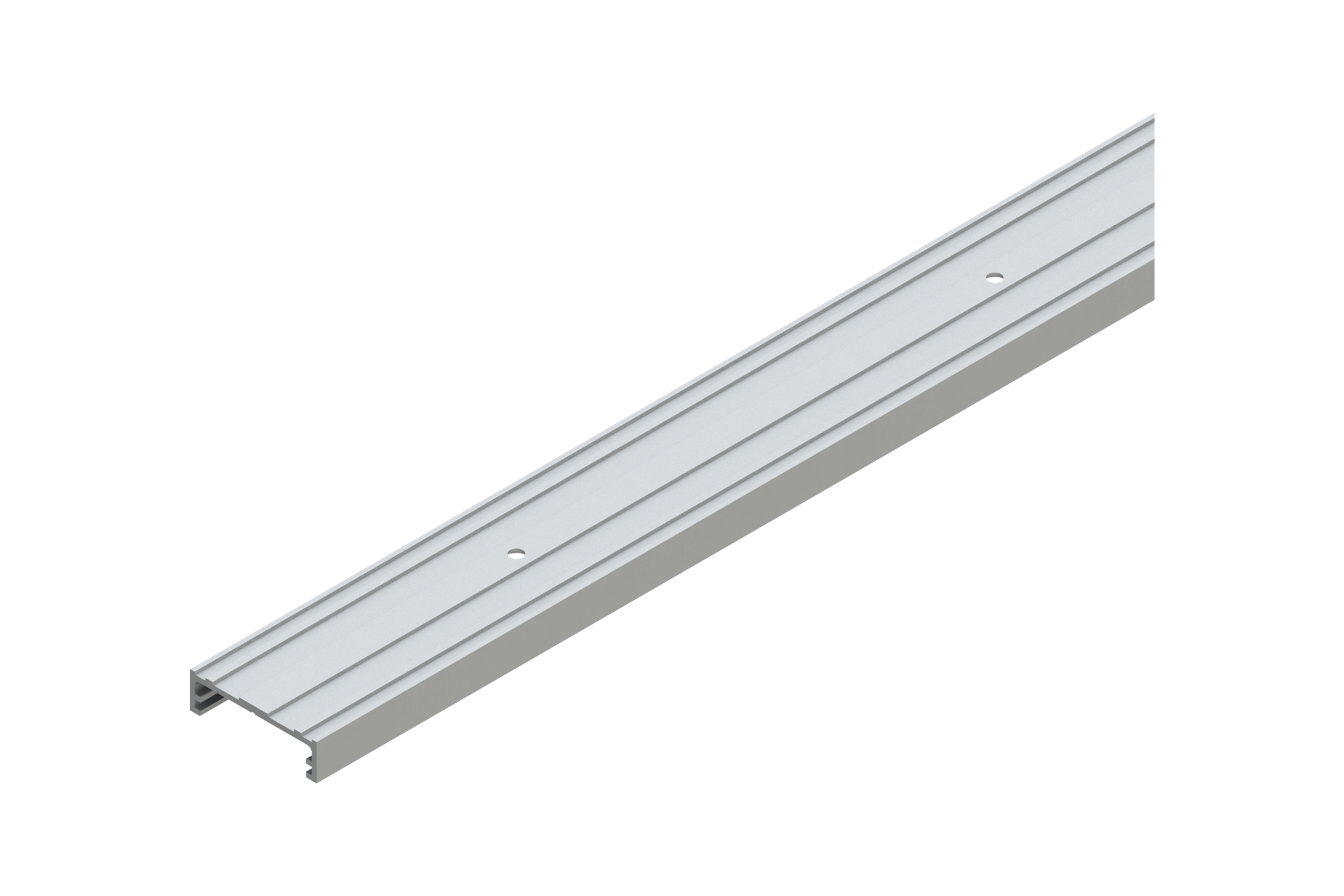

| 1 pc. | 1 pc. | HELM WTR installation track |

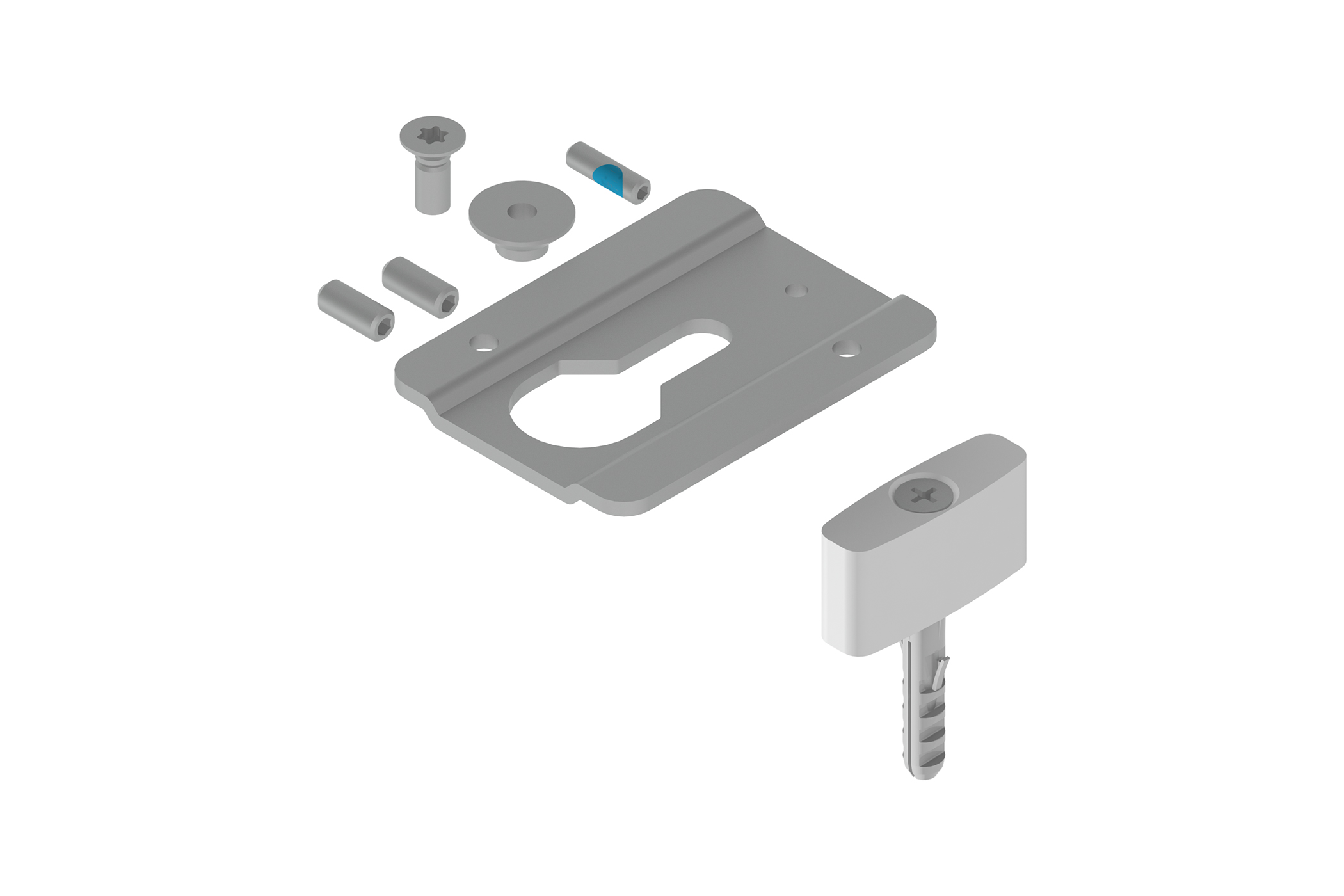

| ** pc. | ** pc. | HELM WTR fixing plate with mounting material |
| 2 pc. | 4 pc. | HELM 140-91 trolley with ball bearing and M8 x 30 support screw |
| 2 pc. | 4 pc. | HELM glass clamp, 250 x 22 mm, for 8/8,76 and 10/10,76 mm TSG/LSG* |

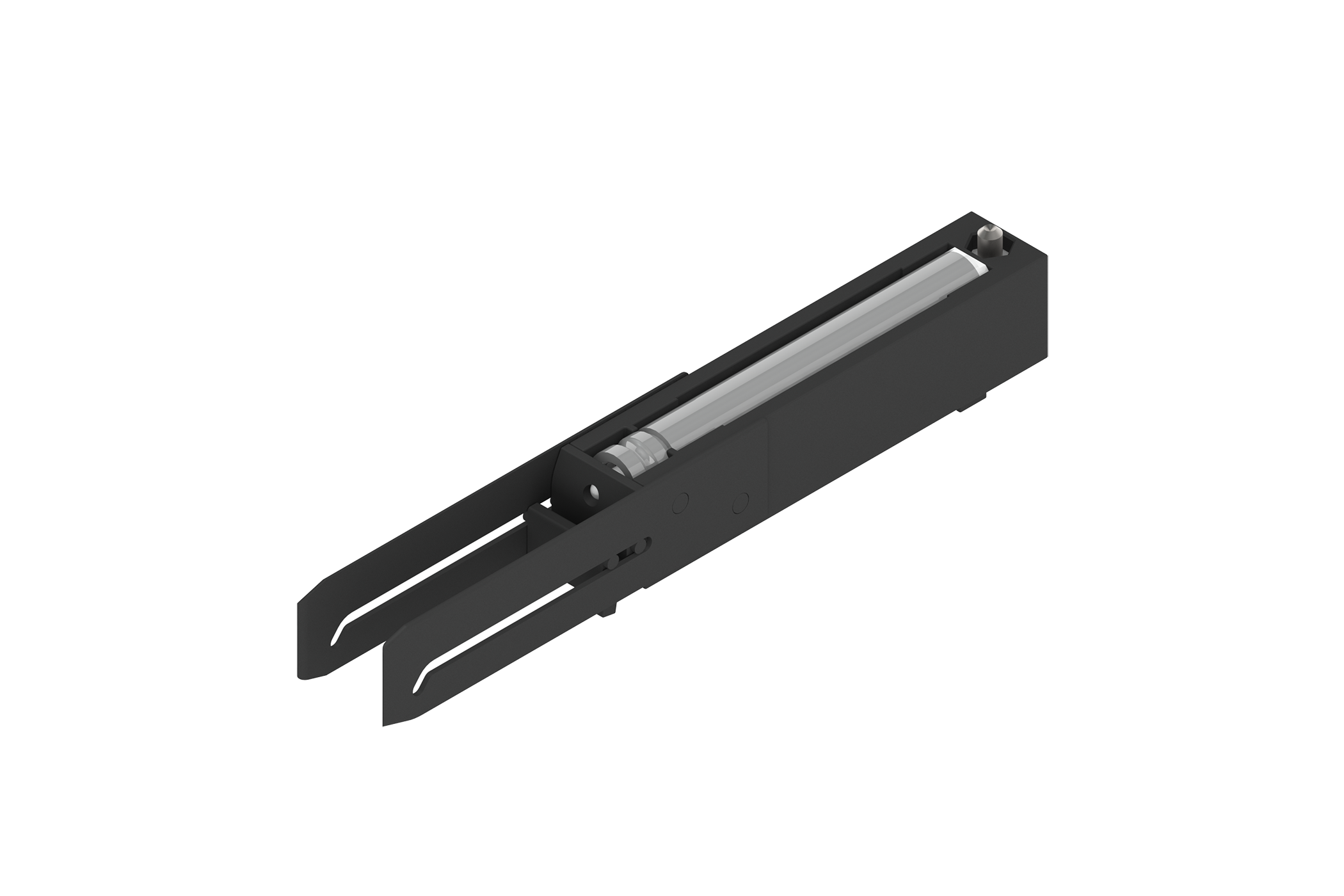

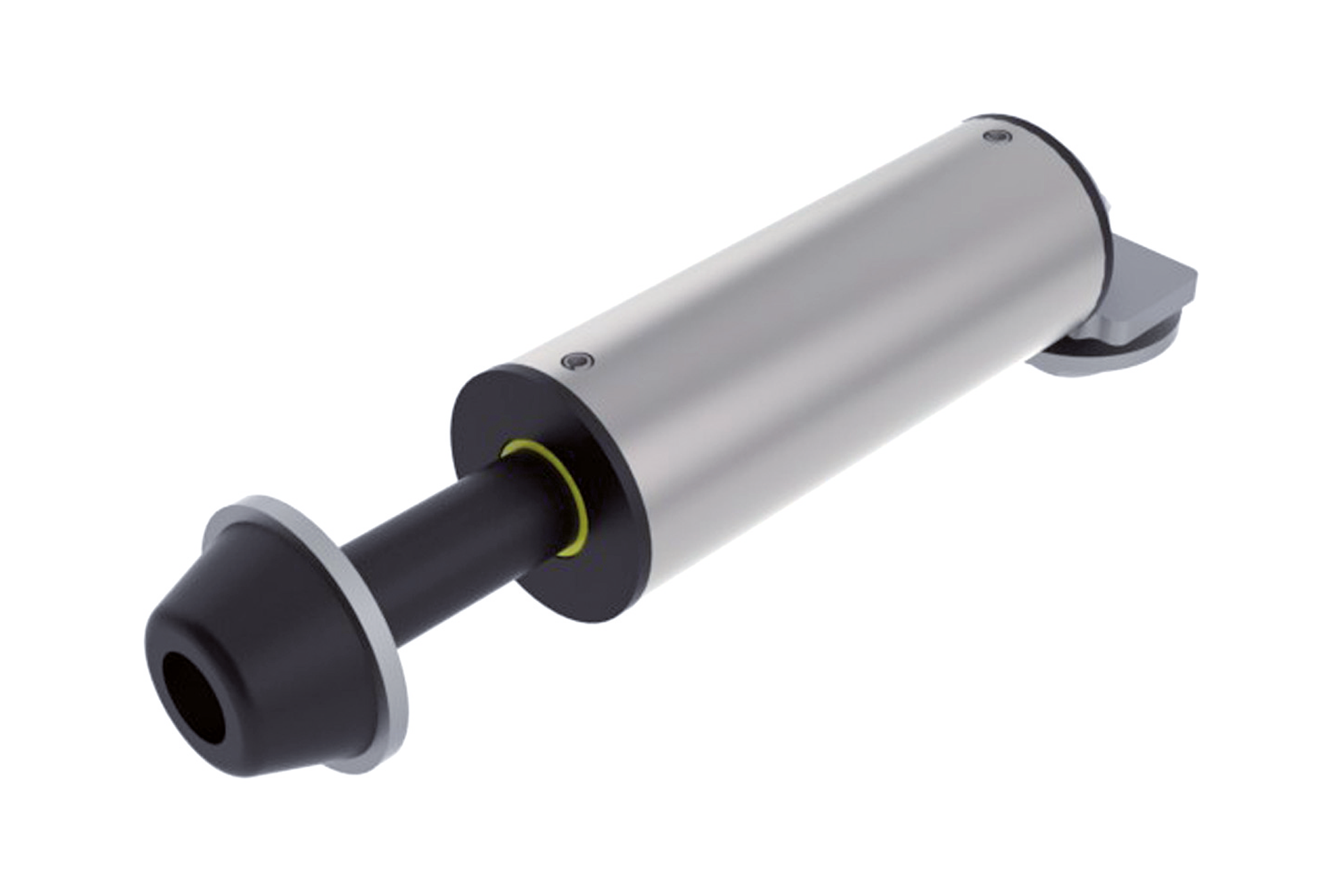

| 2 pc. | 4 pc. | HELM 140 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 140 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM SmartGuide G |
*when using LSG the glass clamp must be glued on with two-component adhesive (not included in the set)
**quantity depends on track length
