HELM MK-M 140 H 111
Sliding door system for leaves up to 140 kg, wall installation with wall brackets
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 140 kg
Leaf thickness
from 30 mm
Leaf width
min. 650 mm (with damper and soft closing device on one side)
min. 860 mm (with damper and soft closing device on both sides)

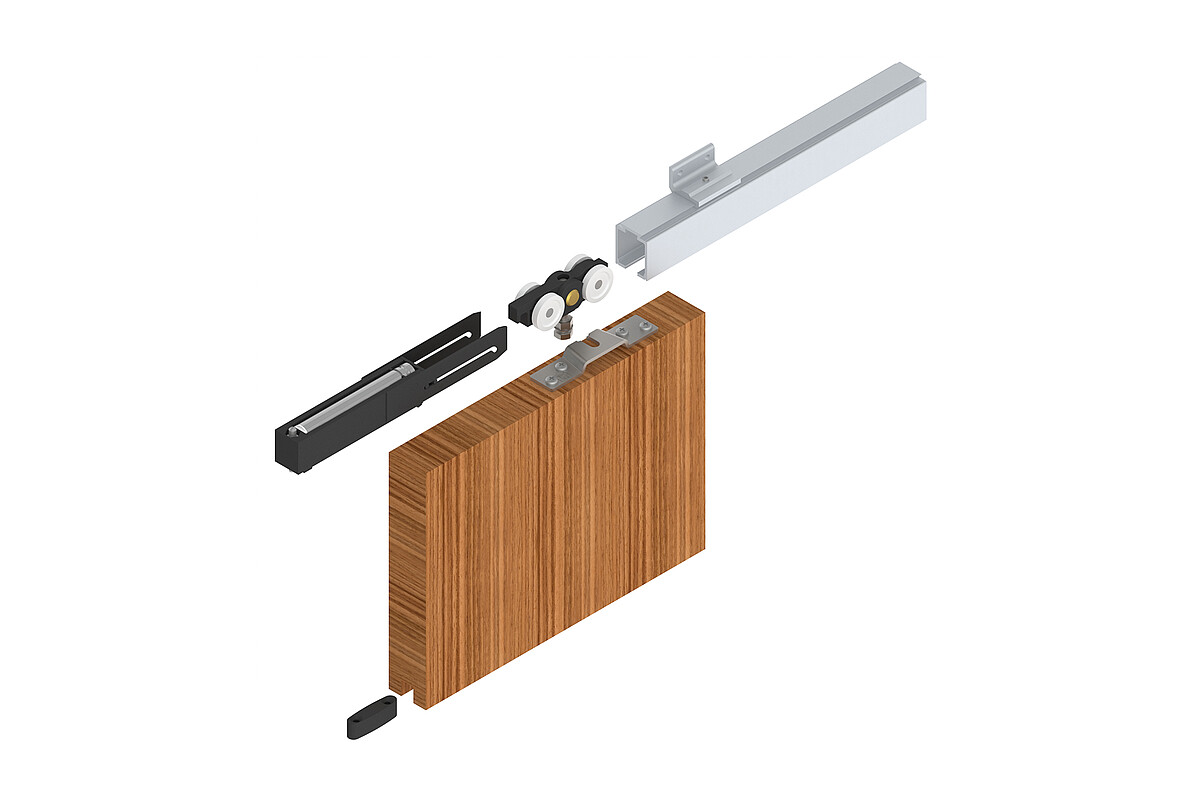

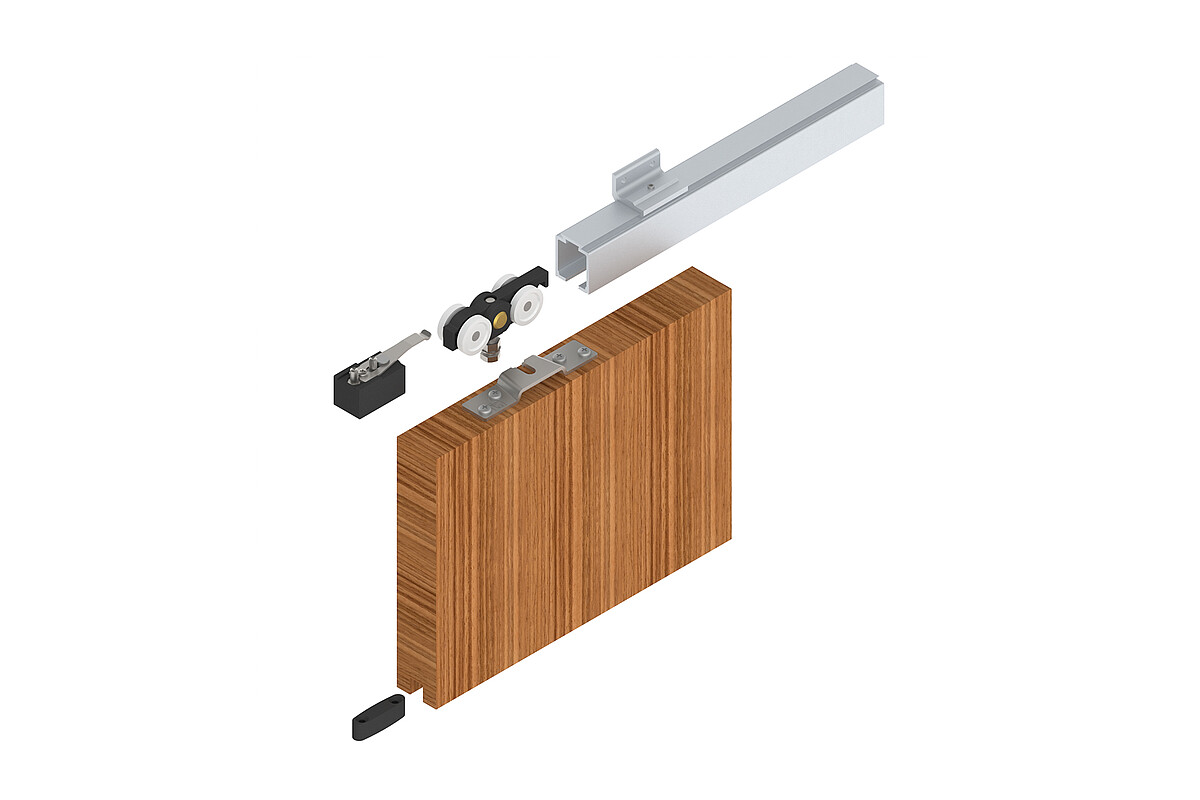

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM 140 track, perforated on top |

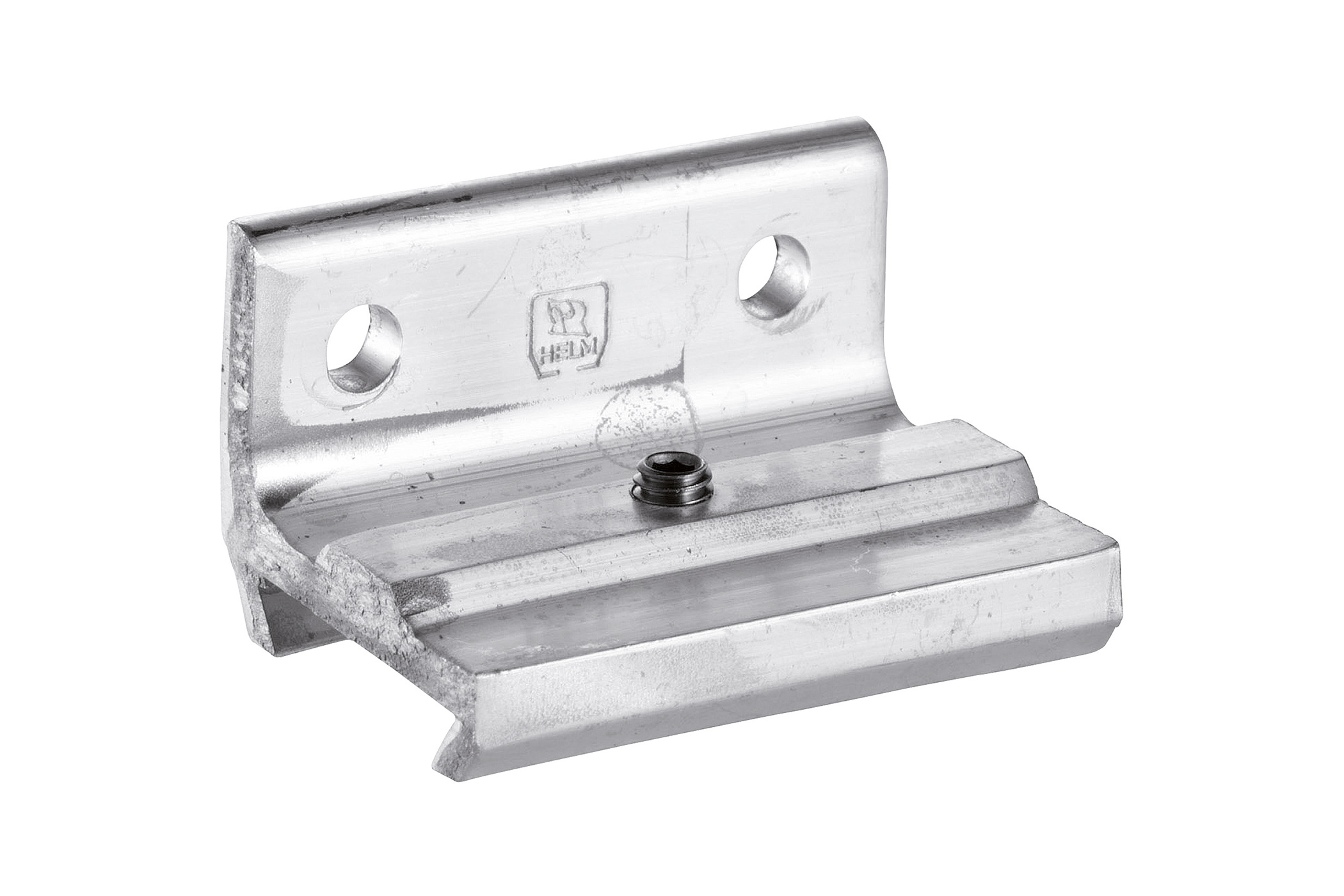

| * pc. | * pc. | HELM 140-01 wall bracket |
| 2 pc. | 4 pc. | HELM 140-91 trolley with ball bearing, M8 x 45 support screw and flange |
| 2 pc. | 4 pc. | HELM 140 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 140 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM 216 bottom guide (mounting material included) |
*quantity depends on track length
