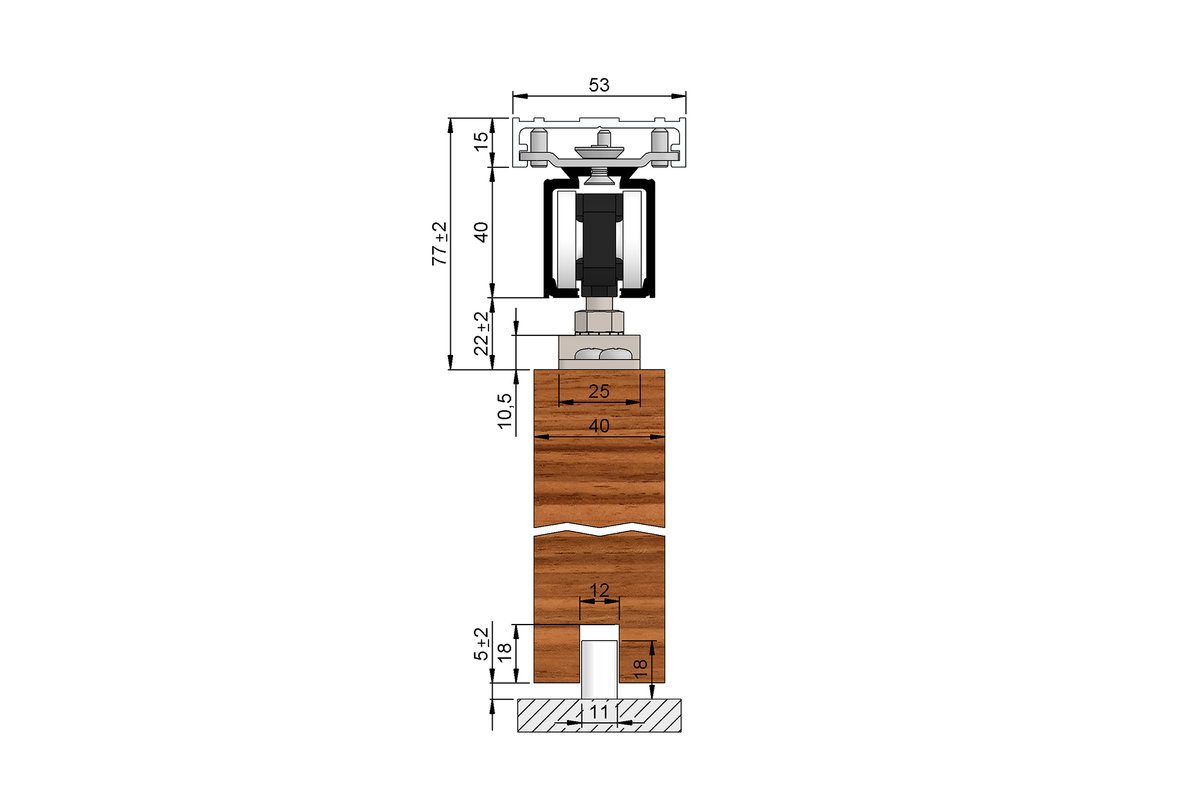

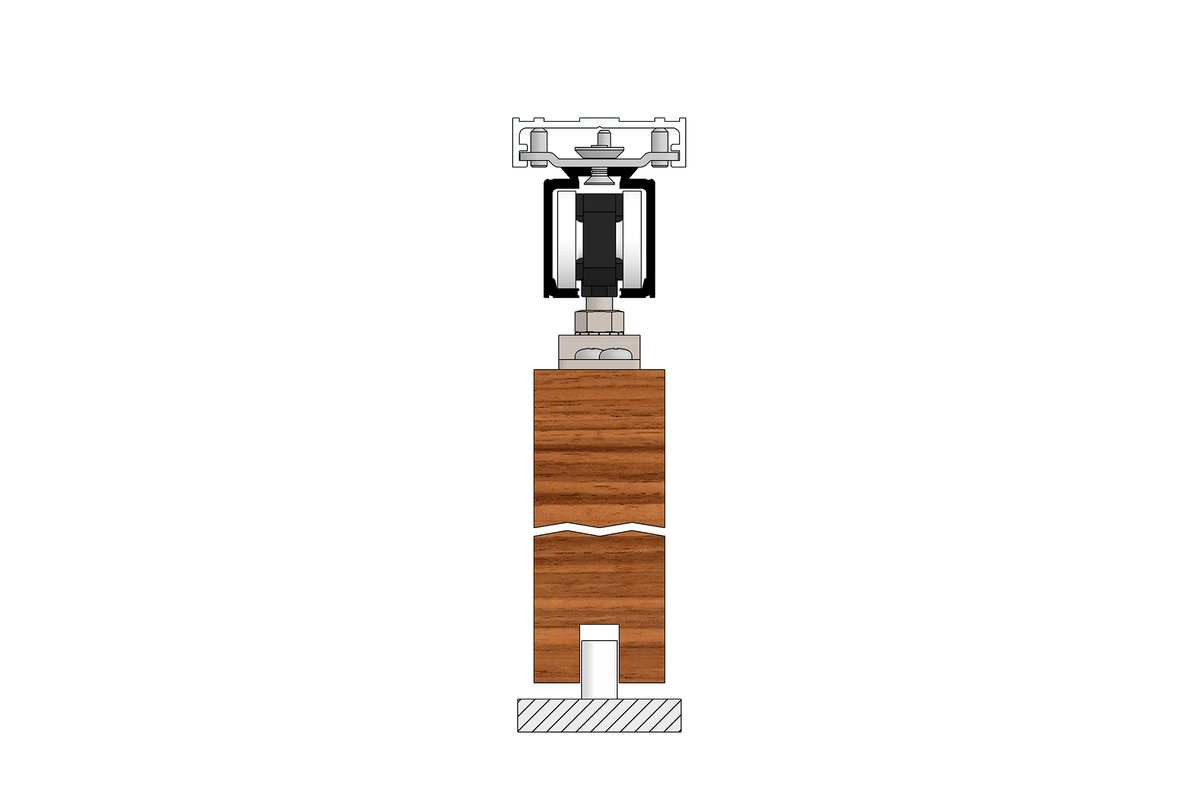

HELM MK-M 140 H 129
Sliding door system for leaves up to 140 kg, wall pocket installation with WTR installation track, reversible
- for interior sliding doors made of timber
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- WTR installation track: enables disassembly/assembly of the track at any time for maintenance, replacement and addition of components
- tested according to DIN EN 1527:2013 (200.000 cycles)
- note: WTR installation track is 25 mm longer than track(s)
Leaf weight
max. 140 kg
Leaf thickness
from 30 mm
Leaf width
min. 750 mm (with damper and soft closing device on one side)
min. 900 mm (with damper and soft closing device on both sides)

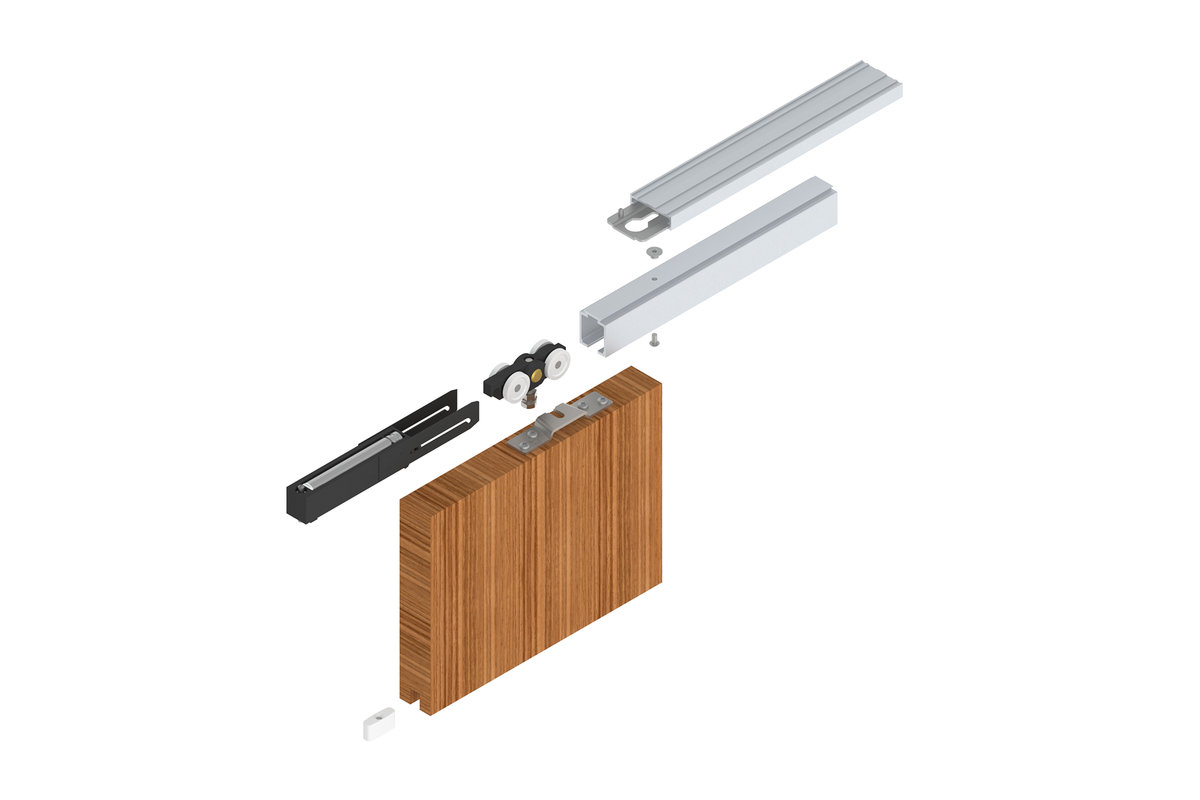

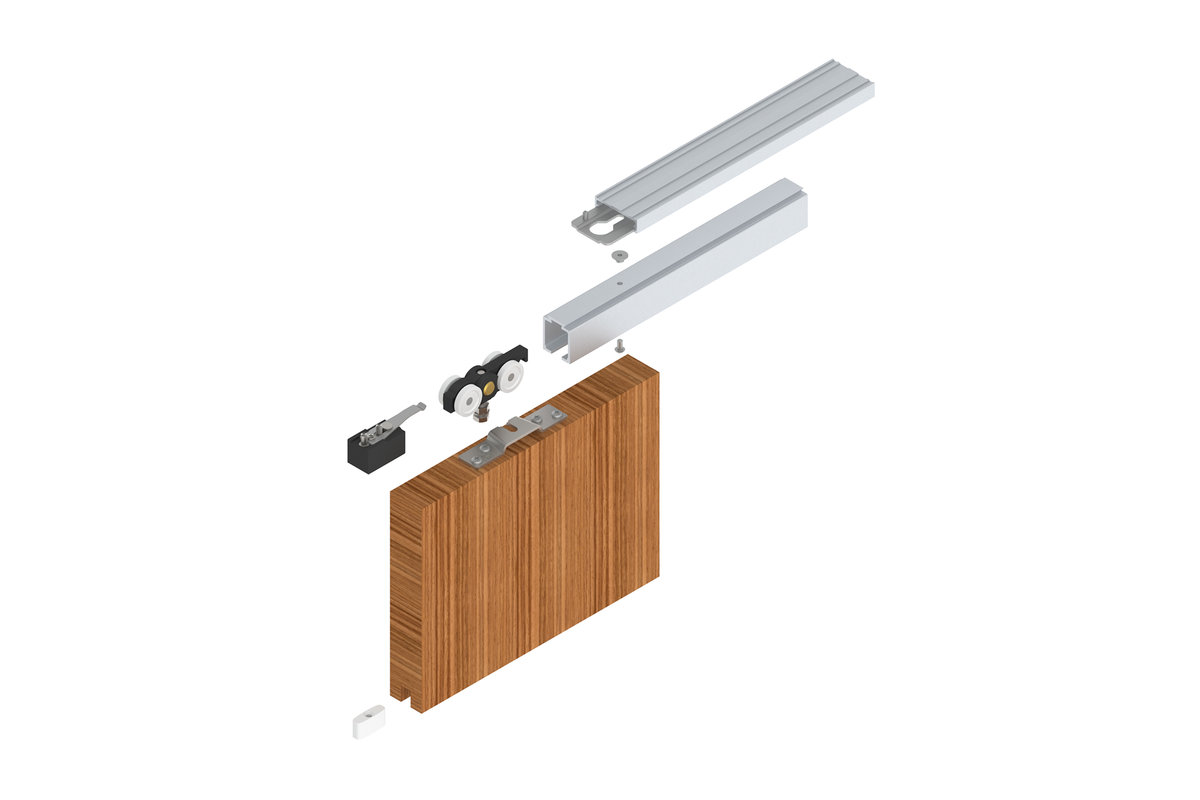

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 2 pc. | HELM 140 WT track, perforated on top |
| 1 pc. | 1 pc. | HELM WTR installation track |

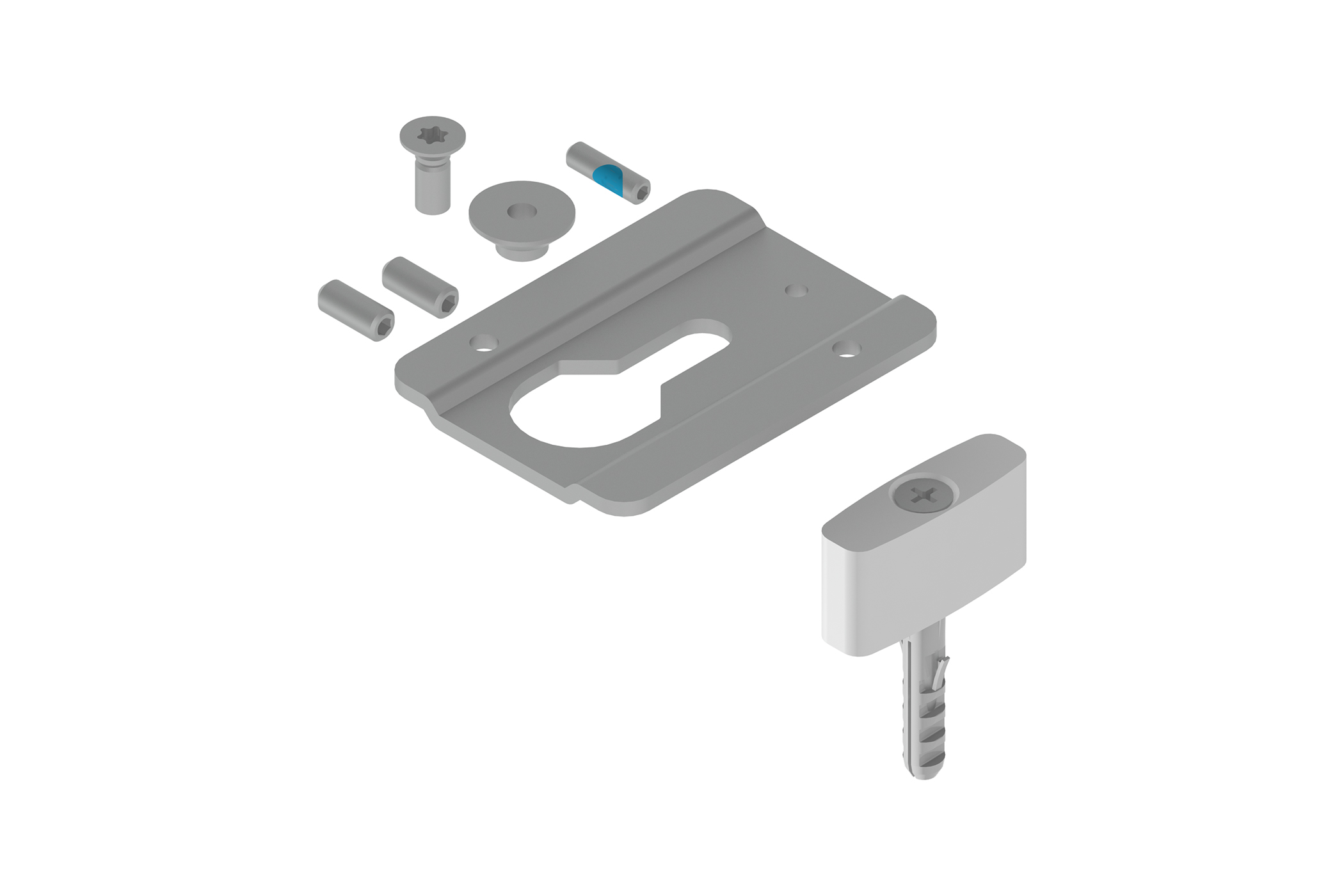

| * pc. | * pc. | HELM WTR fixing plate with mounting material |
| 2 pc. | 4 pc. | HELM 140-91 trolley with ball bearing, M8 x 45 support screw and flange |
| 2 pc. | 4 pc. | HELM 140 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 140 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM 70 bottom guide |
*quantity depends on track length
