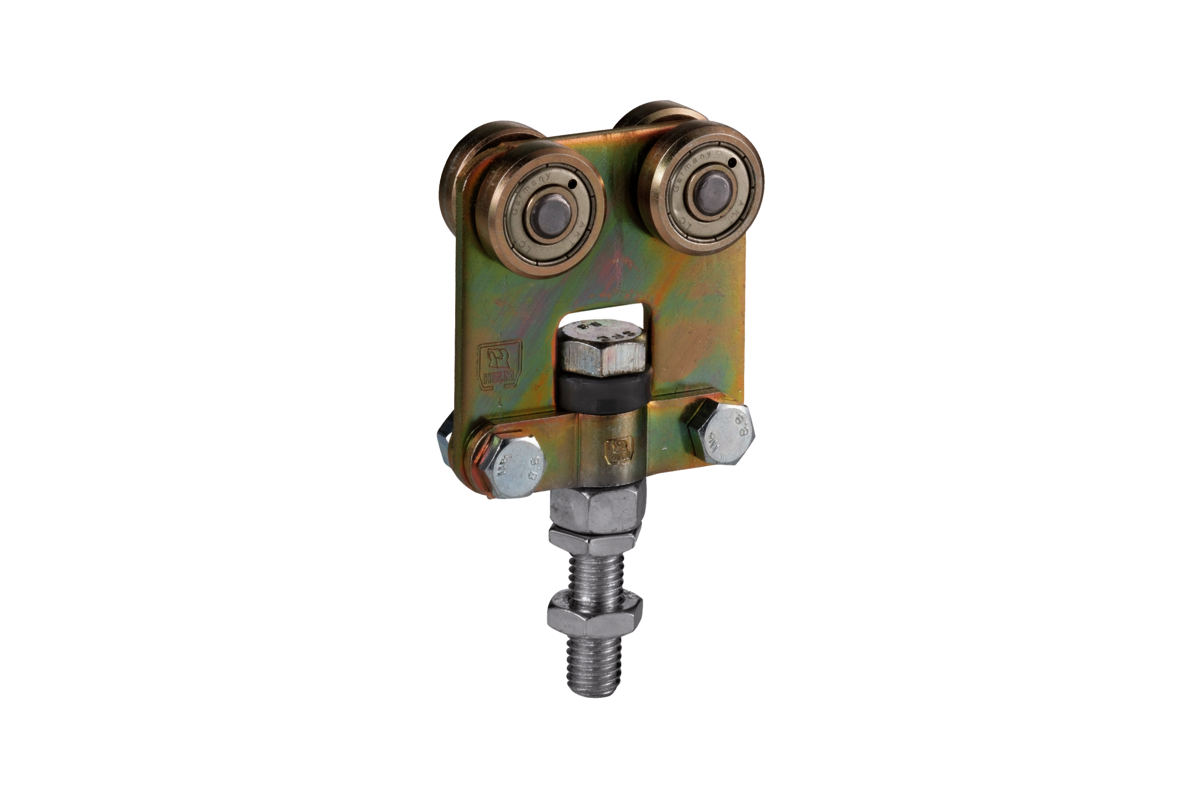

HELM -24
Trolley
- double-pair
- height adjustable
Material
steel
Leaf weight (max., in kg)
| Article Art. no. | HELM 124 HELM 012420 | HELM 324 HELM 032420 | HELM 424 HELM 042420 | HELM 524 HELM 052420 | HELM 624 HELM 062420 | HELM 724 HELM 072420 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 | HELM 700 |
| side sliding sectional gates, manual actuation | 45 | 85 | 150 | 300 | 600 | 1.000 |
| side sliding sectional gates, electric actuation | 70 | 120 | 240 | 475 | 700 | |
| folding doors | 22 | 42 | 75 | 150 | 300 | 500 |
| concertina doors | 22 | 42 | 75 | 150 | 300 | 500 |
| parallel-swivelling systems | 140 | 240 | 480 | 960 | ||
| front side sliding system | 60 | 140 | 240 | 480 | 960 | 1.500 |

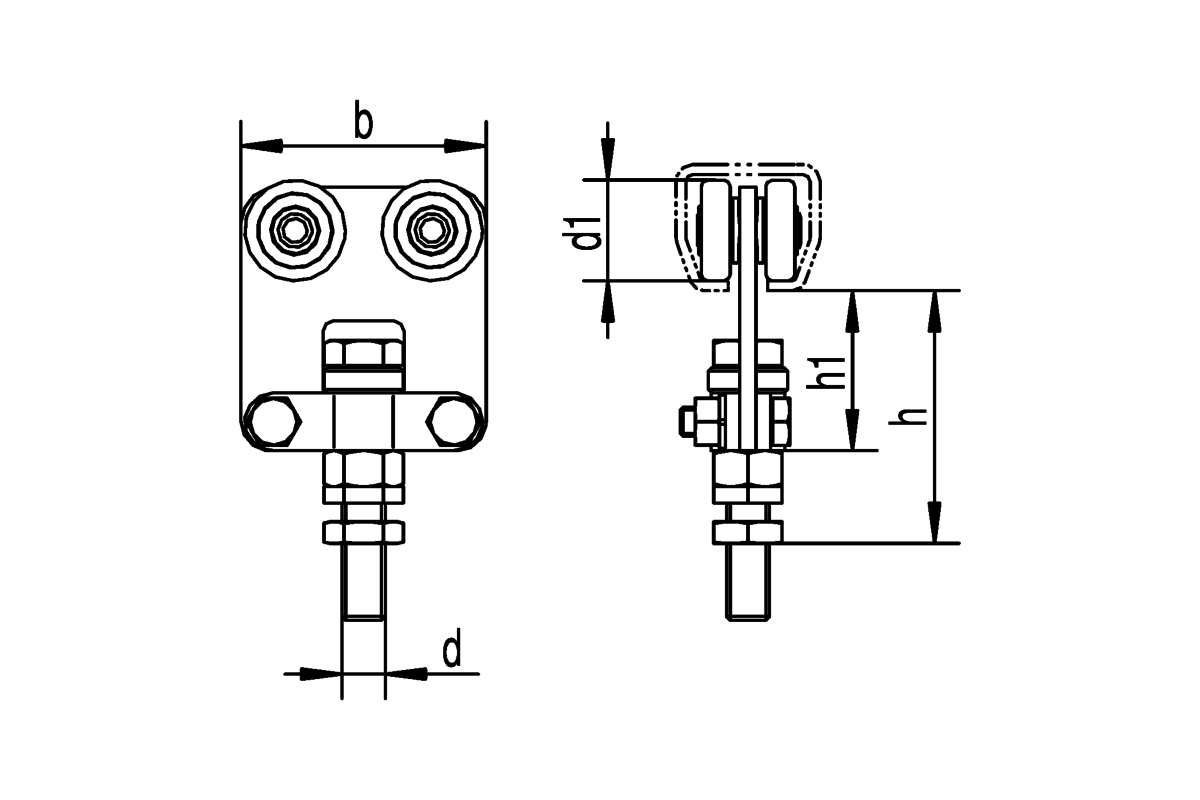

Dimensions (in mm)
| Article Art. no. | HELM 124 HELM 012420 | HELM 324 HELM 032420 | HELM 424 HELM 042420 | HELM 524 HELM 052420 | HELM 624 HELM 062420 | HELM 724 HELM 072420 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 | HELM 700 |
| b | 50 | 68 | 90 | 110 | 150 | 200 |
| d | M10 | M12 | M16 | M20 | M24 | M30 |
| d1 | Ø 22 | Ø 28 | Ø 34 | Ø 48 | Ø 60 | Ø 89 |
| h | 54 +7 | 70 +7 | 81,5 +4 | 99 +16 | 123 +68 | 166 +67 |
| h1 | 33 | 44 | 49 | 59 | 78,5 | 110 |
