HELM 140 Telescopic set
for double leaf telescopic systems up to 80 kg/leaf
- for manual opening and closing of two sliding shutters with a single action: The leading leaf pulls the following leaf into the desired position by means of telescopic deflection
- note: overlapping of the leaves of min. 40 mm required (depending on selected bottom guide)
- toothed belt available separately

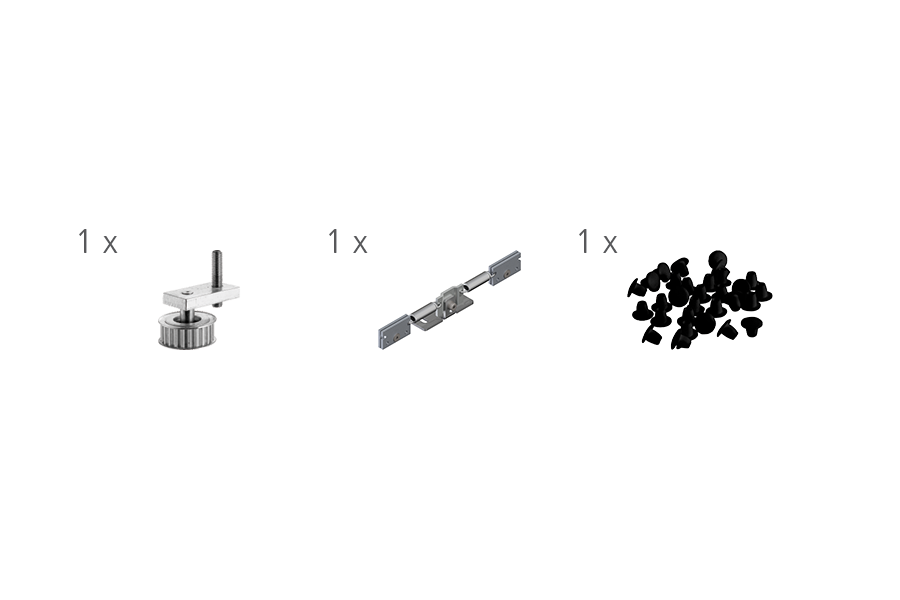

- for electric operation, the HELM 140 toothed belt deflection for single leaf electrically operated systems is additionally required
Leaf weight
max. 80 kg (manual operation)
max. 60 kg (electrical operation)
Leaf thickness
from 30 to 50 mm

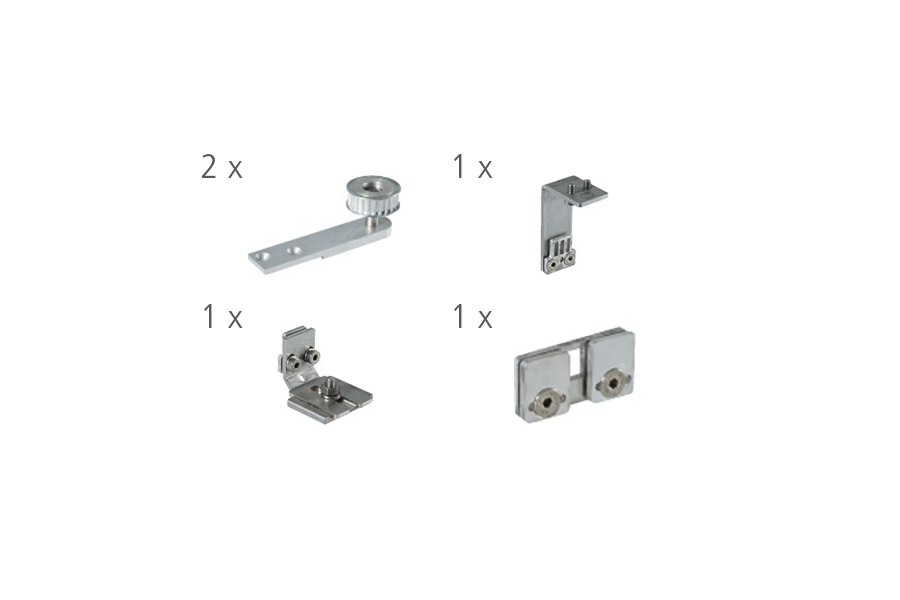

Set contents
| Quantity | Article |
| 2 pc. | HELM deflection roller |
| 1 pc. | HELM connector |
| 1 pc. | HELM door driver |
| 1 pc. | HELM toothed belt connector |
