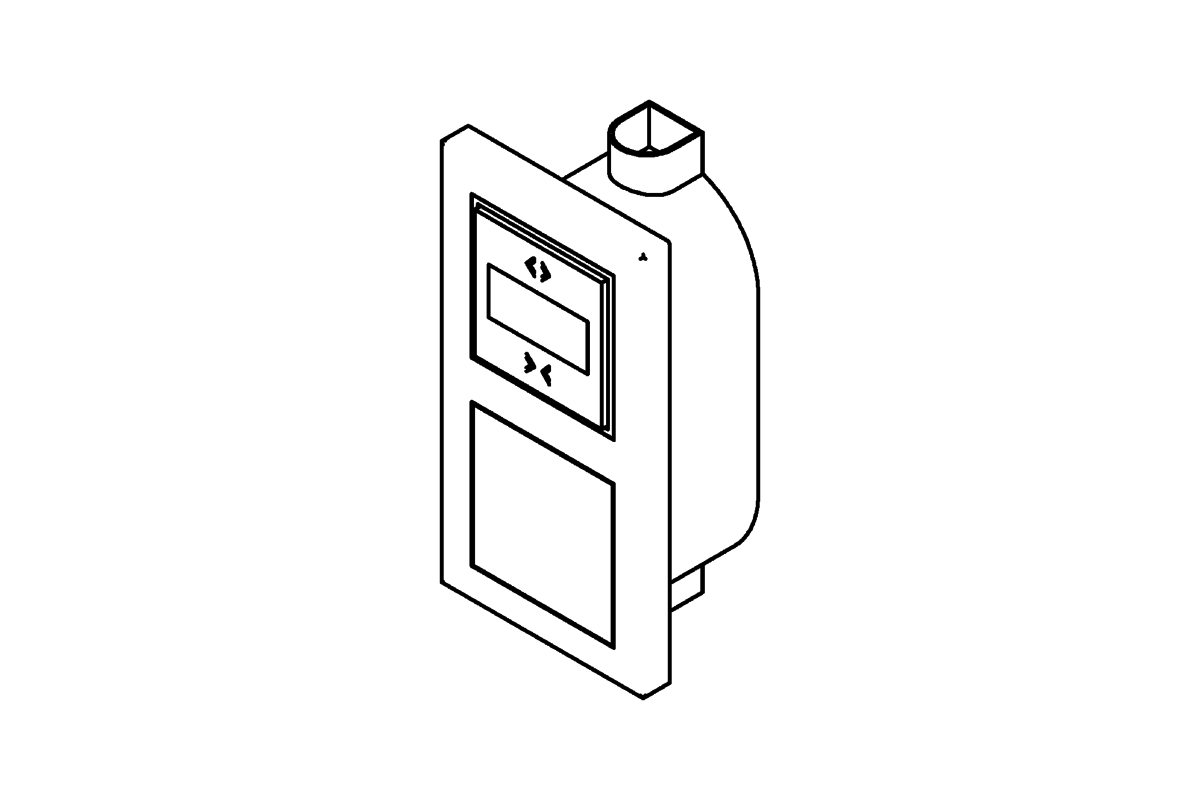

HELM Comfort
Controller with push button and timer
- for toothed belt drives HELM 80, 140 and 150
- in a polar white 2-gang frame
- soft start and soft stop
- switch-off via end positions
- integrated force cut-off
- push-button command for open/close
- timer as operating element with display
- manual or automatic control (random programme, ± 30 minutes; weekly programme with open and close time for each day)
- sun/twilight sensor can be connected
- connection to bus system possible via potential-free actuators
Technical data
supply voltage:
230 V, 50 Hz
temperature range:
+5 °C to +45 °C
accuracy:
< 5 seconds/day
power reserve:
approx. one hour
degree of protection:
IP20
protection class:
II
conformity:
CE
