KWS 8022..

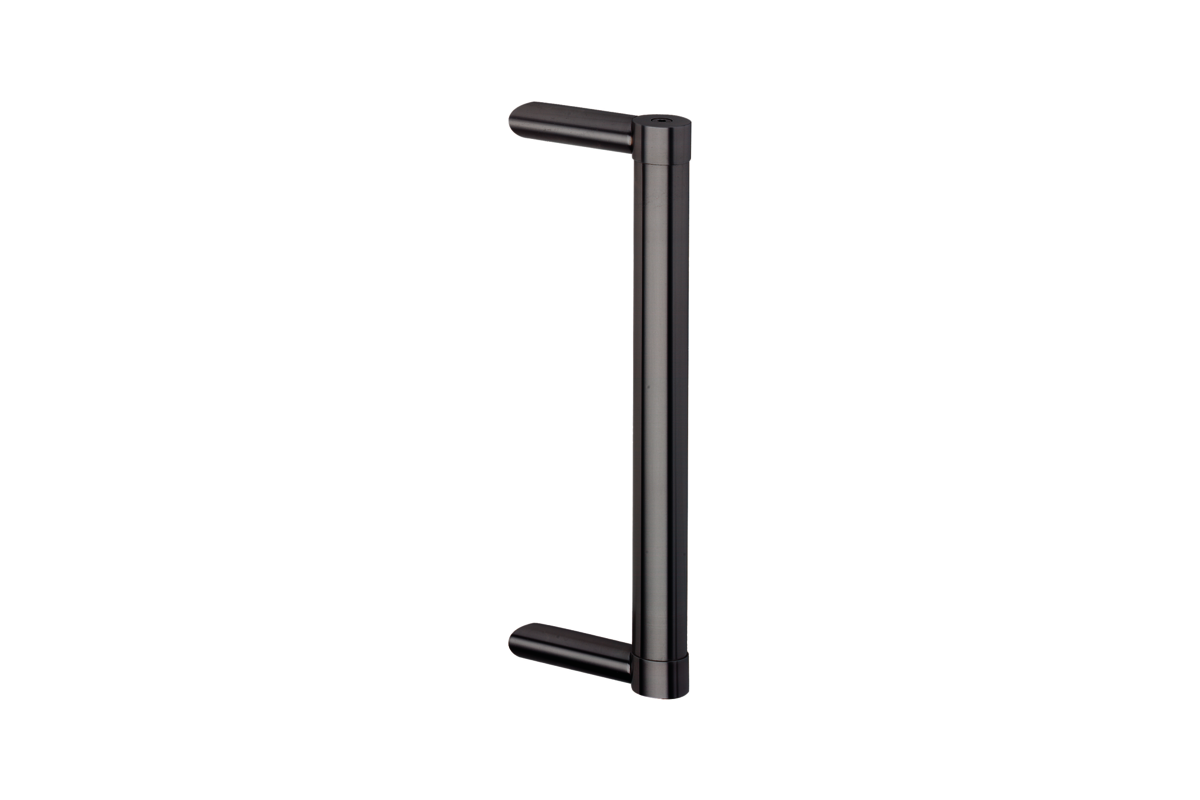

Door handle with angled end supports, series RS
- series RS: round support with socket for invisible tube ends
- with tubular handle and 45 degree angled end supports
- for concealed fixing
- fastening elements in the door handle
- mounting material available separately
Material
stainless steel
clamping elements:
aluminium
Dimensions (in mm)
(special lengths also available on request*)
| Art. no. | D | GL | L | H |
| KWS 8022.. | tube, Ø 30 x 1,5 | L plus 26 | to 1.800 | 91 |
| KWS 8024.. | tube, Ø 35 x 1,5 | L plus 26 | to 2.200 | 96 |
| KWS 8026.. | tube, Ø 40 x 2 | L plus 26 | to 2.500 | 101 |
*available with mid support or reinforcement profile (for KWS 8024..)
