KWS 8163..

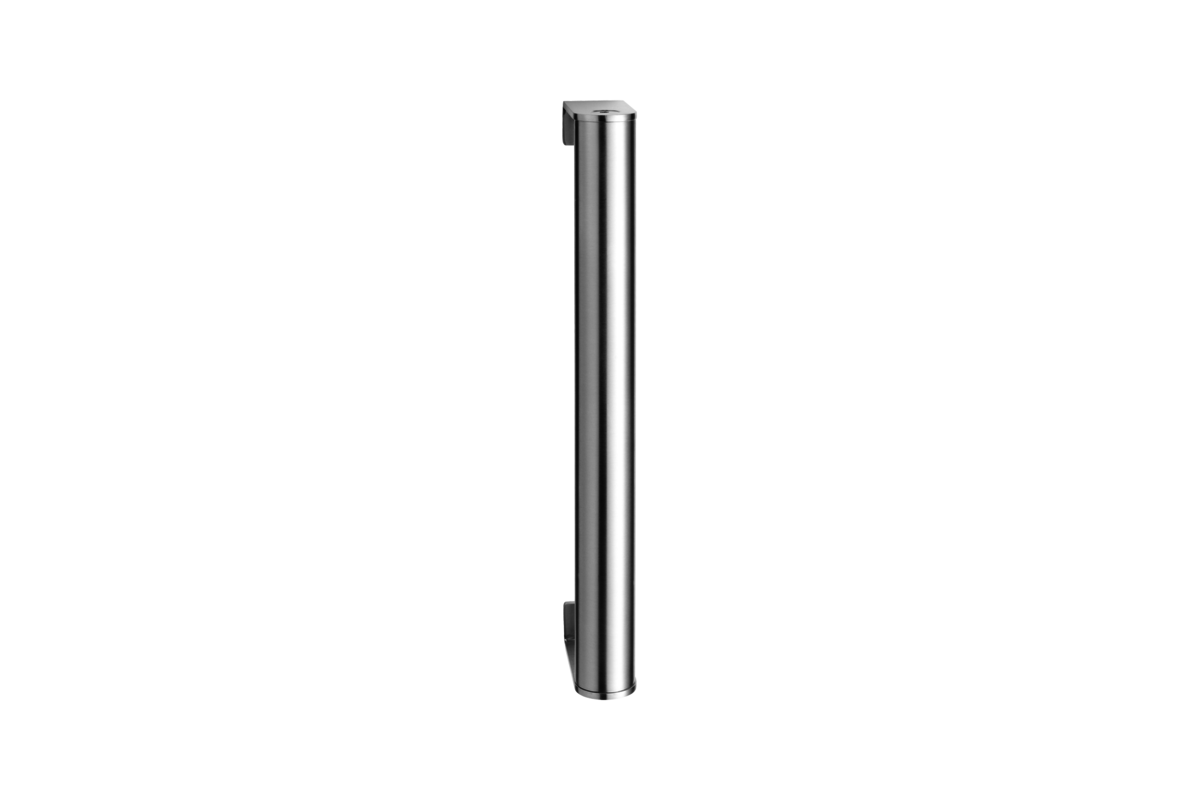

Door handle with straight end supports, series WS2 / WS4
- series WS2 / WS4: angular support with socket for visible tube ends
- with tubular handle and straight end supports
- for visible fixing
- mounting material available separately
Material
stainless steel, V2A (series WS2) or V4A (series WS4)
clamping elements:
aluminium

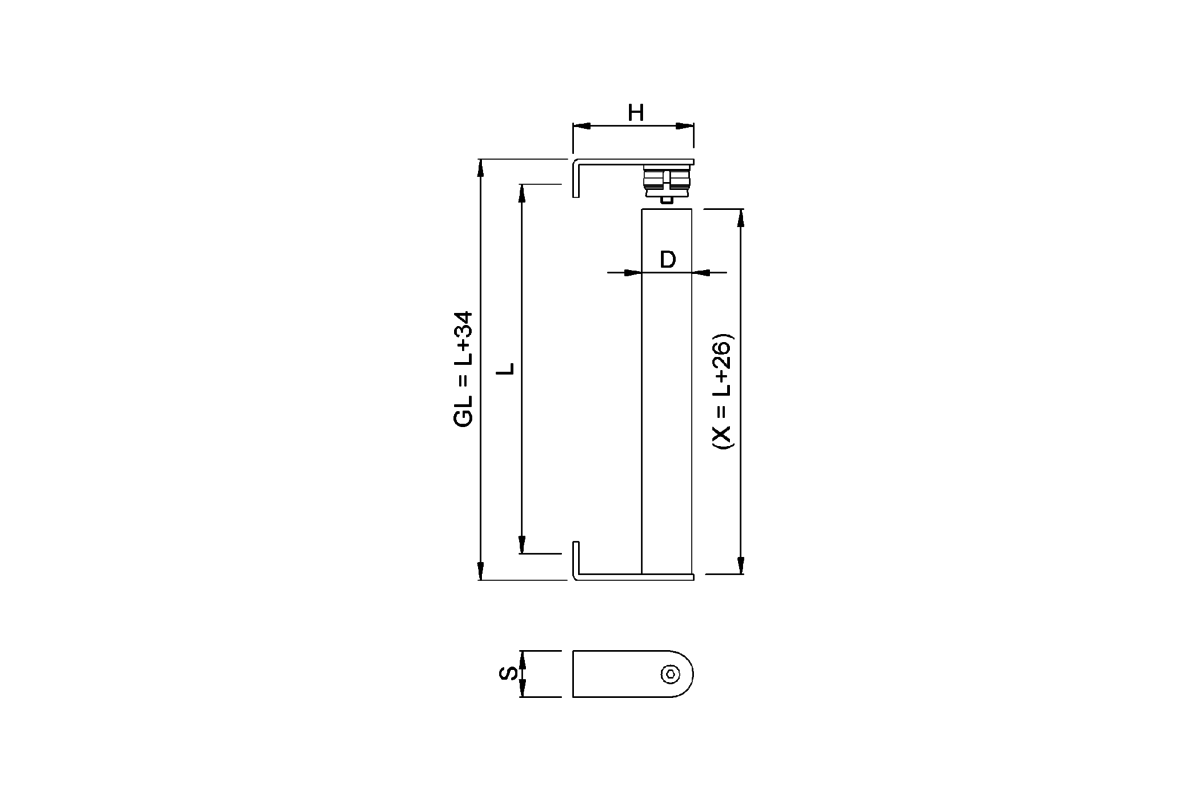

Dimensions (in mm)
(special lengths also available on request*)
| Art. no. | D | GL | L | S | H |
| KWS 8163.. | tube, Ø 30 x 1,5 | L plus 34 | 200 to 1.800 | 31 | 83 |
| KWS 8372.. | tube, Ø 35 x 1,5 | L plus 34 | 200 to 2.200 | 36 | 85,5 |
| KWS 8373.. | tube, Ø 40 x 2 | L plus 34 | 200 to 2.500 | 41 | 90,5 |
| KWS 8071.. | tube, Ø 42,4 x 3,2 | L plus 34 | 200 to 3.000 | 43 | 91,5 |
*available with mid support or reinforcement profile (for KWS 8372..)
