KWS 1015..

Door holder with magnet

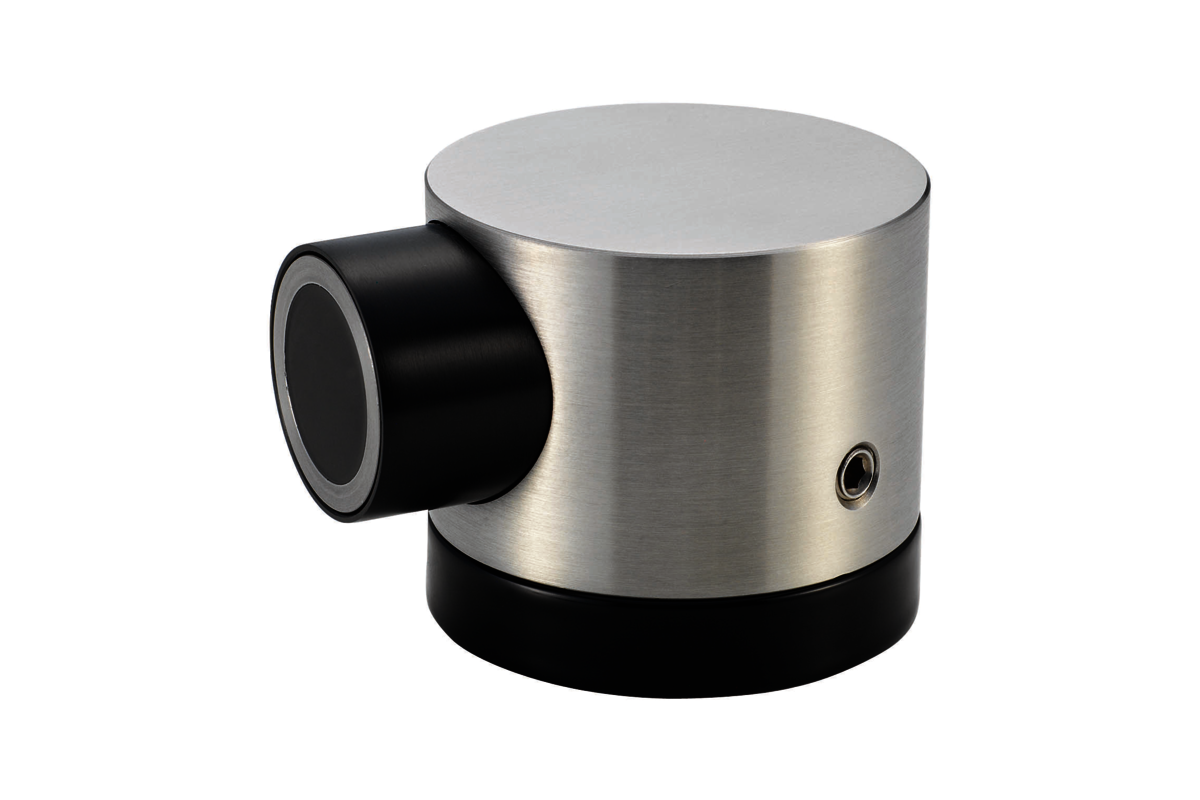

Picture shows KWS 1015.82

Drawing shows KWS 1015..

Do you have questions regarding the product?
We are happy to advise you!

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 1015..
Door holder with magnet
spring-loaded magnet

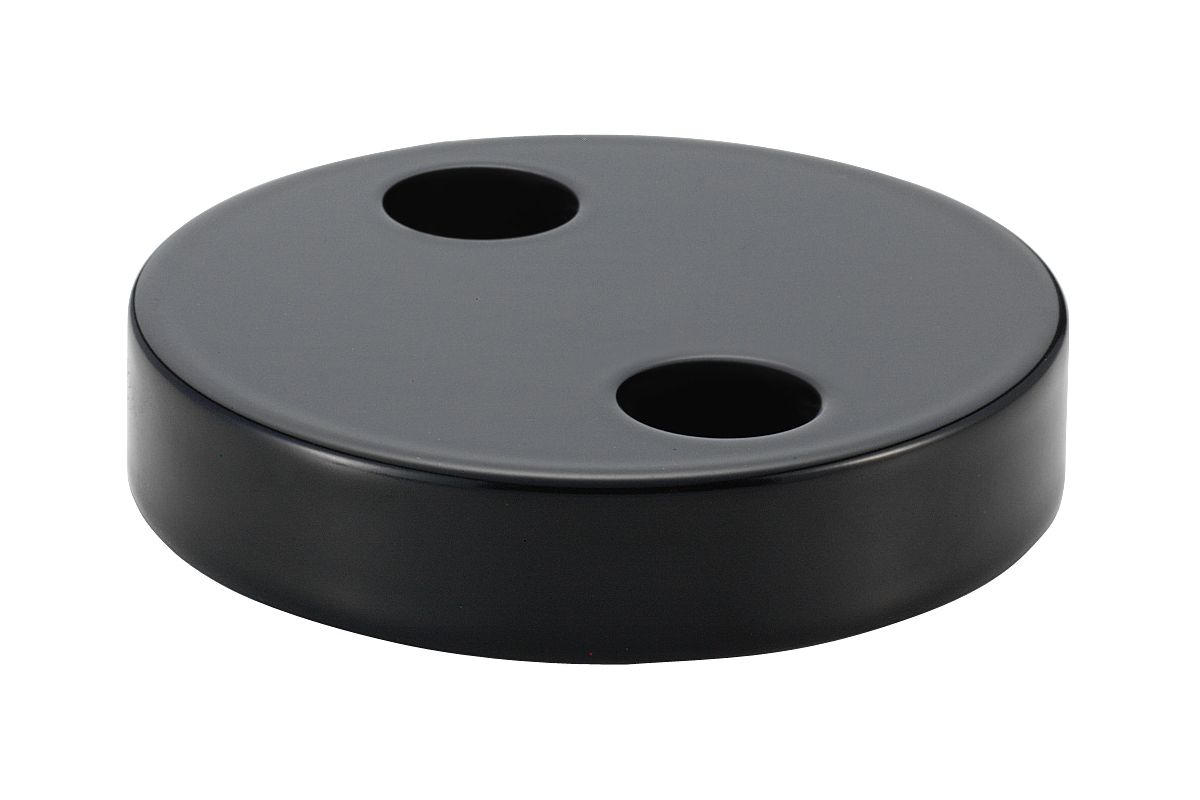

with shim KWS 1615.. (10 mm high)
holder to be screwed, counter plate to be screwed or glued on
with mounting material
door closer can be used
suitable for indoor use only

Material
aluminium, brass or stainless steel
bolts:
stainless steel
counter plate:
steel
shim:
aluminium, black powder-coated

Mode of operation
free actuation (pushing/pulling)

Pull-off force
70 N

Door weight
max. 60 kg

Unit weight
0,200 kg (aluminium)
0,550 kg (brass)
0,500 kg (stainless steel)
Function
To hold the door in place, push it against the magnet. The spring-loaded magnet slows down the door and triggers the mechanism. To release the door, pull it away from the magnet.
Installation
Insert the two plugs into the floor at the desired arresting point, which should be the furthest possible distance from the door hinge and screw in the M8 x 90 threaded bolts. Then, attach the door holder and fix it with two threaded bolts on the sides. Fix the counter plate to the door at the corresponding position.
Downloads
Product drawing (DWG)
