KWS 1044..
Door holder with throw
Material
aluminium
housing:
aluminium
bolt:
stainless steel

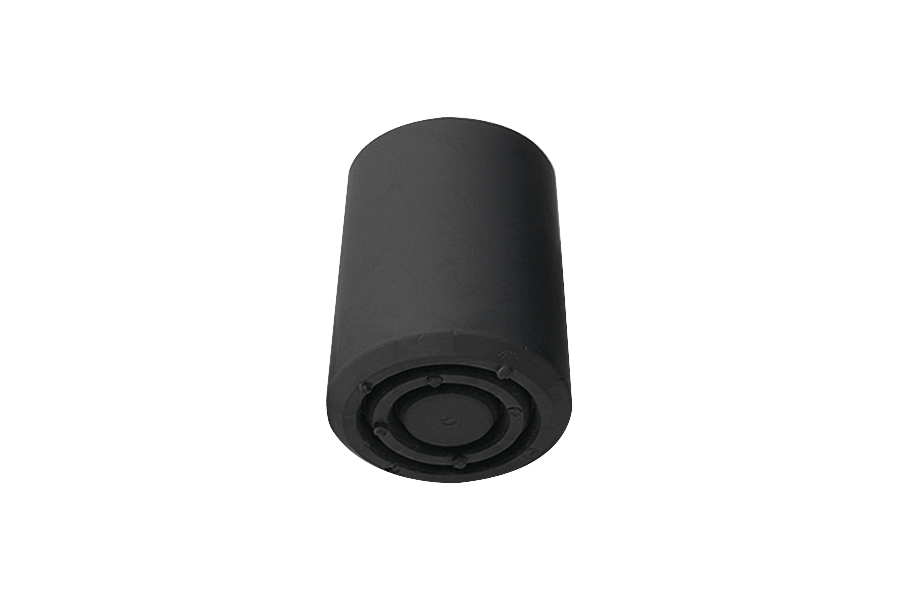

foot:
rubber, black
Mode of operation
foot actuation
Door weight
max. 80 kg
Throw
60 mm (KWS 1044..)
90 mm (KWS 1045..)
120 mm (KWS 1046..)
Unit weight
0,470 kg (KWS 1044..)
0,550 kg (KWS 1045..)
0,610 kg (KWS 1046..)
The door can be held open at any angle.
To hold the door in place, push down the bolt until the foot is being pressed firmly on the floor. Pushing the check plate gently releases the door.
The default hub spring improves the contact pressure applied to the floor.

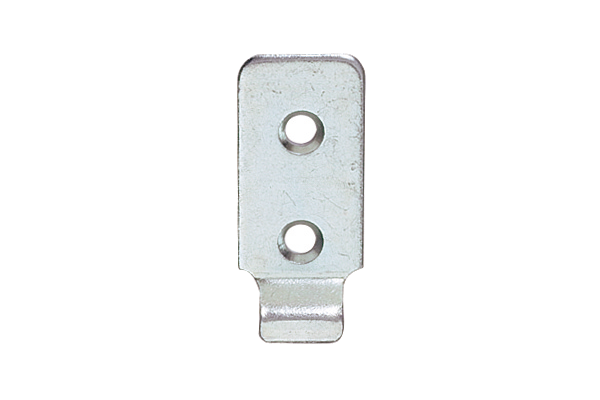

Mount the door holder on the door with four screws in combination with a fixing plate at the furthest possible distance from the door hinge. The distance from the bottom edge of the door to the foot should be 5 to 10 mm.
With every packaging unit, installation instructions and a drilling template are included.
