KWS 1055..

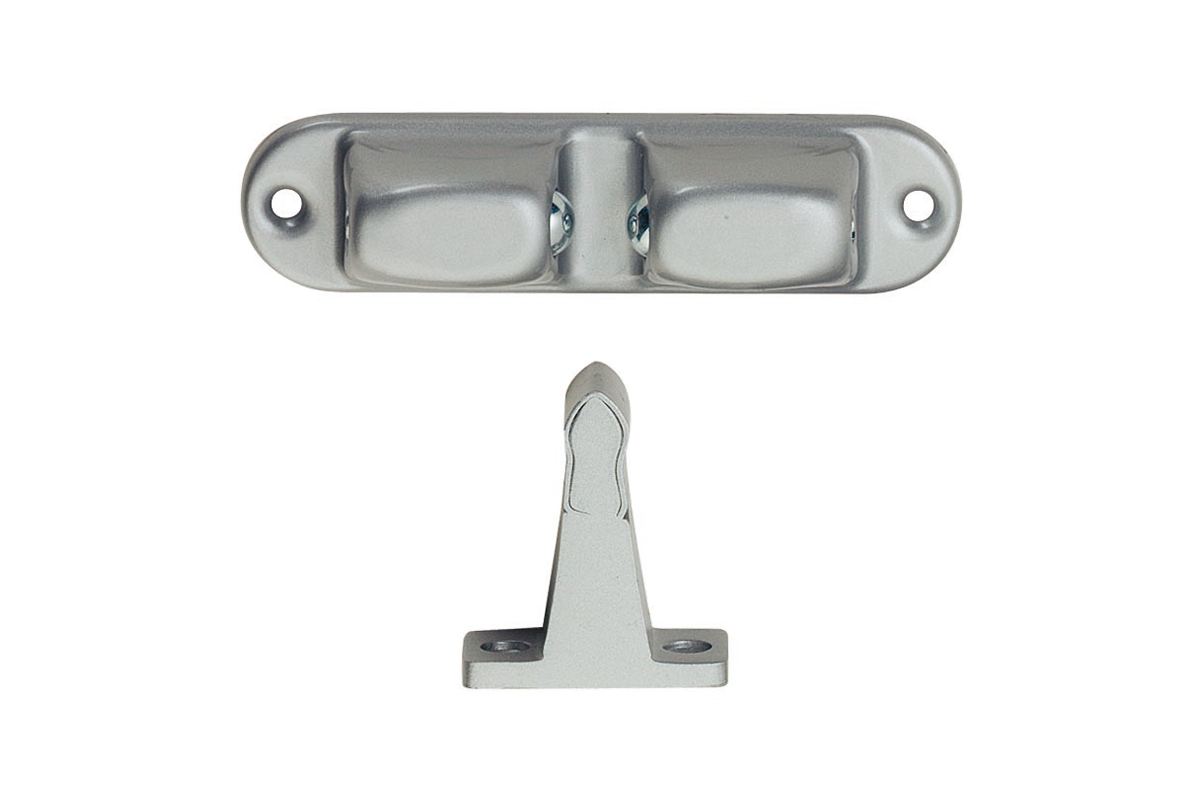

Door holder with roller ball
Material
aluminium or brass
holder:
steel or brass
Mode of operation
free actuation (pushing/pulling)
Pull-off force
80 to 220 N
Door weight
max. 80 kg
Distance
55 mm (KWS 1055..)
70 mm (KWS 1083..)
Unit weight
0,150 kg (KWS 1055.. aluminium)
0,220 kg (KWS 1055.. brass)
0,165 kg (KWS 1083.. aluminium)
0,238 kg (KWS 1083.. brass)
To hold the door in place, push it against the wall block until the holder is engaged. To release the door, pull it off the block.
Mount the door holder on the door at the furthest possible distance from the door hinge. Fix the block to the wall at the corresponding position.
A horizontal fixing of the holder on the door ensures correct operation if the door is subsequently raised or lowered.
With adjusting screws, the roller ball pressure can be regulated.
