KWS 1067..

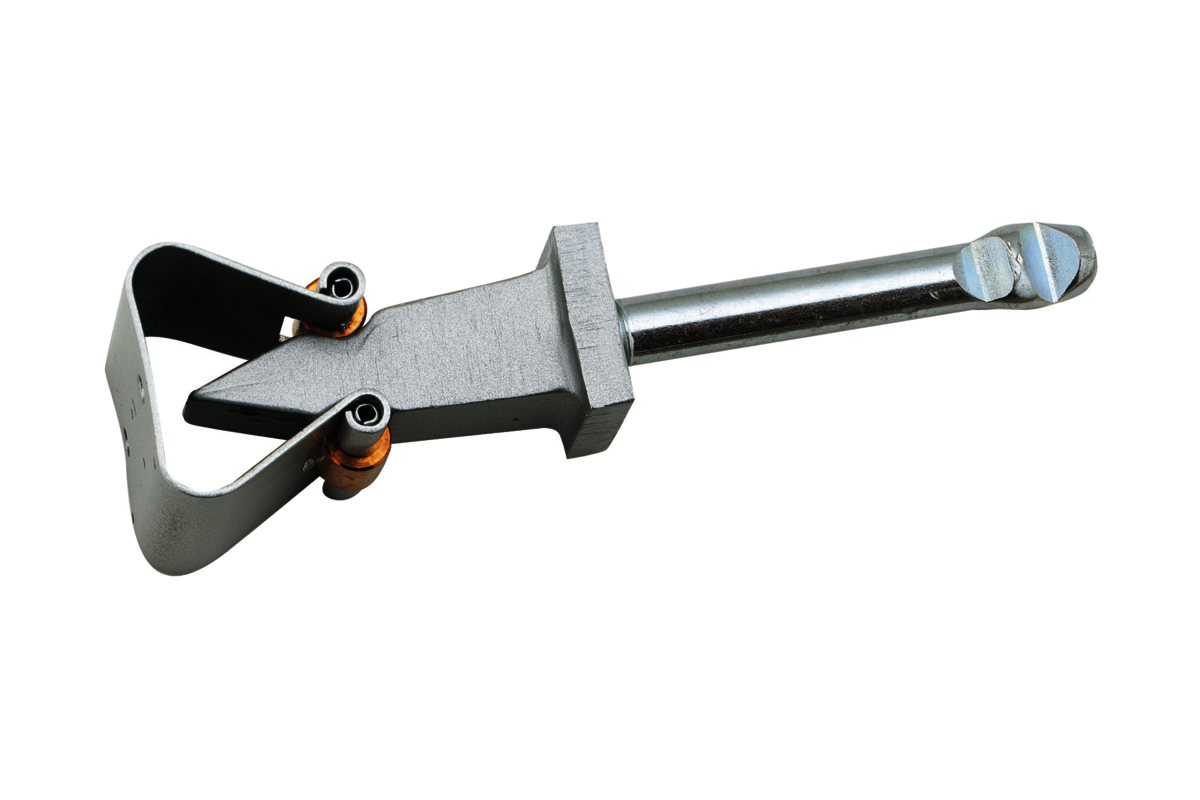

Door holder with spring clamp
Material
aluminium or brass
catch spring:
spring steel or brass
rollers:
brass
Mode of operation
free actuation (pushing/pulling)
Pull-off force
280 N
Door weight
max. 50 kg
Unit weight
0,150 kg (aluminium)
0,240 kg (brass)
To hold the door in place, push it against the wall block until the holder is engaged. To release the door, pull it off the block.
Mount the door holder on the door at the furthest possible distance from the door hinge. The screw holes should be vertical. Fix the block to the wall with an anchor bolt at the corresponding position.
