KWS 1113..

Door holder with plastic latch, for all-glass doors

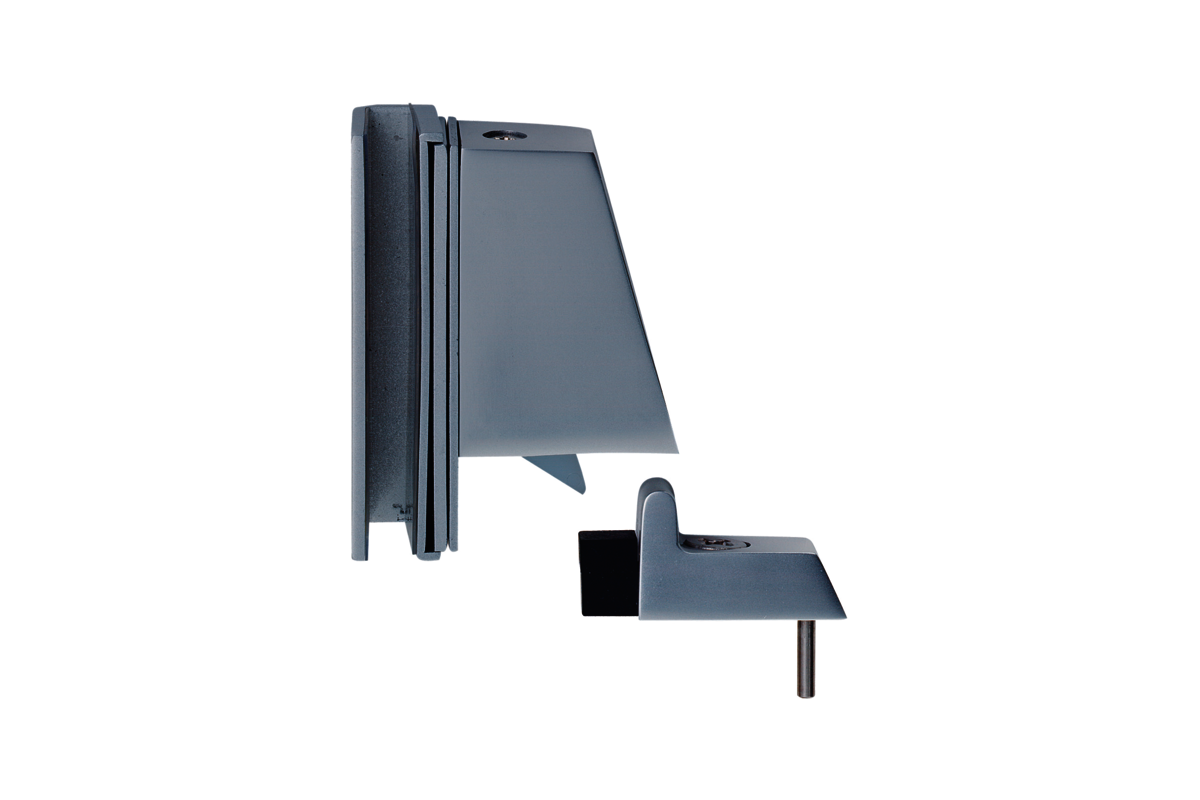

Picture shows KWS 1113.31

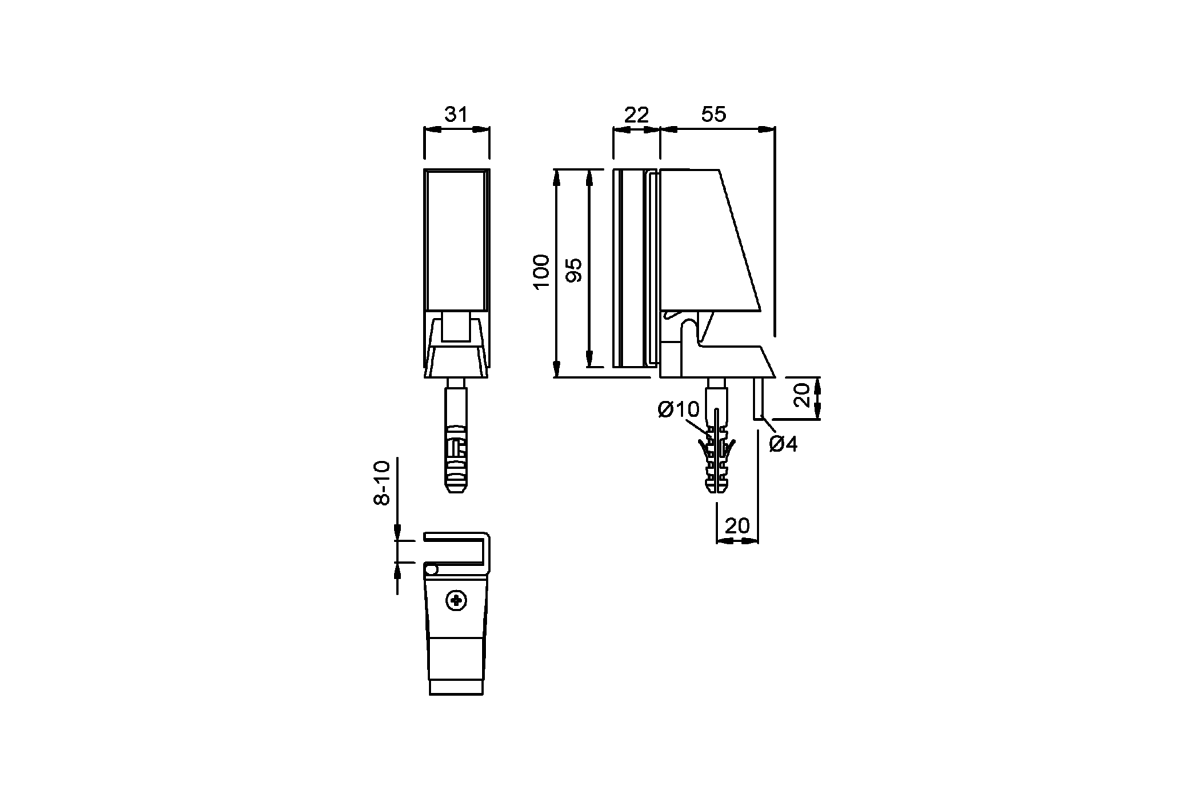

Drawing shows KWS 1113..

Do you have questions regarding the product?
We are happy to advise you!

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 1113..
Door holder with plastic latch, for all-glass doors
with clamp fixing for all-glass doors
holder for clamping, floor block to be screwed
with mounting material
suitable for right- and left-opening doors
door closer can be used

Material
aluminium or brass
housing, floor block:
aluminium or brass
clamp fixing:
stainless steel, colour-matched (for aluminium finish) or brass
other metal parts:
steel, galvanized
latch:
plastic

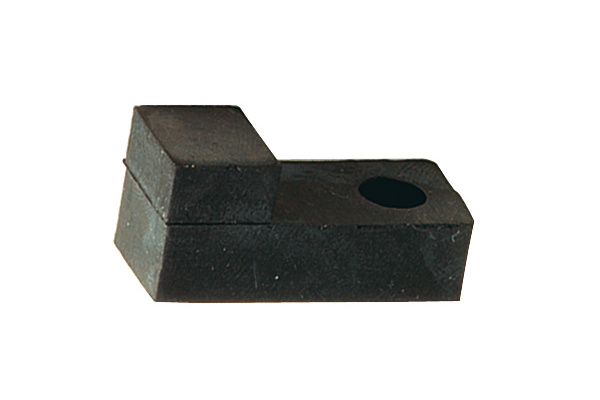

buffer:
rubber, black

Mode of operation
free actuation (pushing/pulling)

Pull-off force
80 N

Door thickness
from 8 to 10 mm

Door weight
max. 50 kg

Unit weight
0,530 kg (aluminium)
0,690 kg (brass)
Function
To hold the door in place, push the holder against the floor block. To release the door, pull it off the block.
Installation
Place the clamp fixing on the door and screw it on tightly. Screw the holder mechanism onto the clamping rail, put on the housing and secure it with a screw. Screw the floor block onto the floor at the desired arresting point. A pin inserted into the floor prevents the floor block from turning.
If the door is subsequently raised or lowered, the holder can simply be readjusted.
To attach the door holder to the glass, drilling is not required.
With every packaging unit, installation instructions are included.

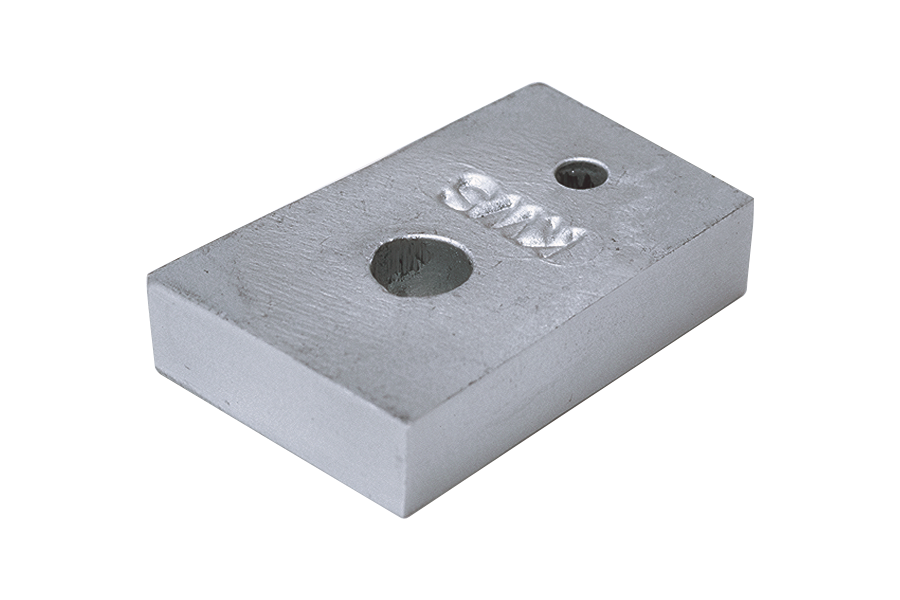

For height compensation, the additional use of the shim KWS 1555.. (5 mm high) or KWS 1556.. (10 mm high) is recommended.
