KWS 5001..
Flush ring handle
- ring handle fixed-pivoted
- spindle of the spindle part firmly riveted
- for flush installation
- also available with rotary handle from KWS 5047.. / 5048.. on request
Material
steel/aluminium (grip recess: steel, ring handle: aluminium), aluminium or brass

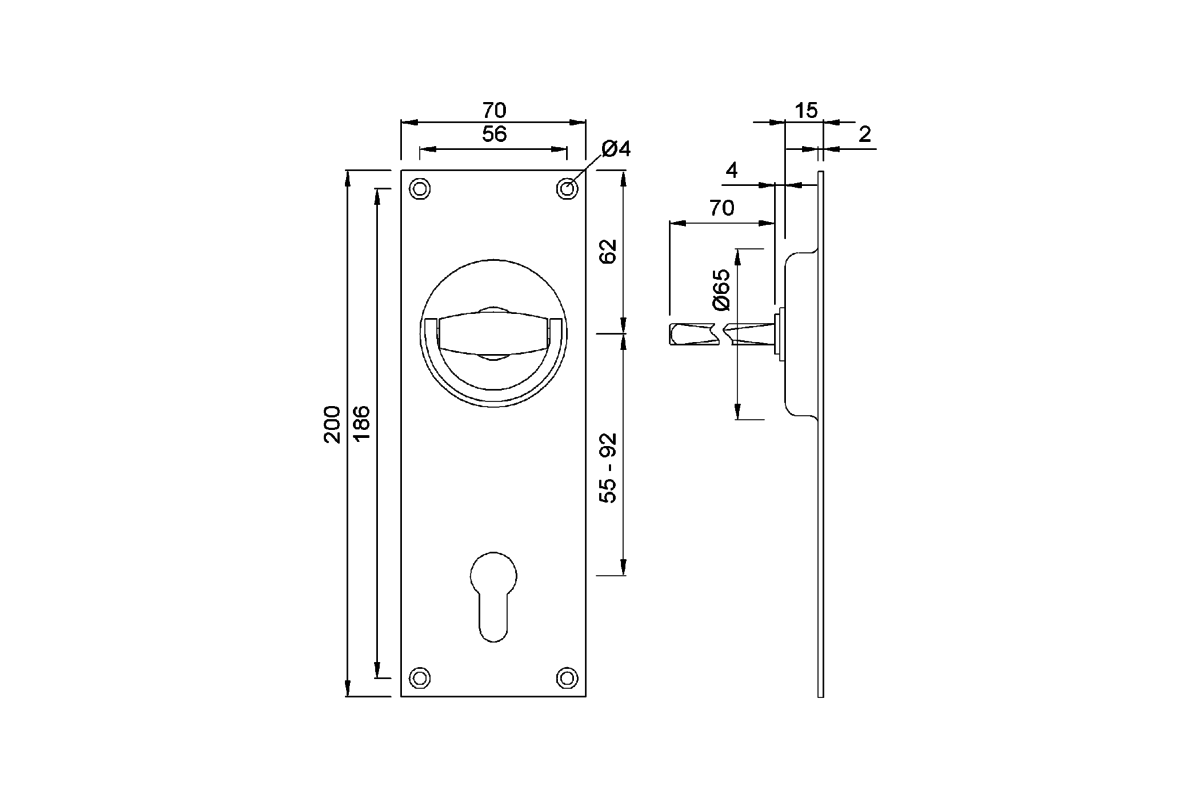

Dimensions
70 x 200 mm
Female part / spindle part
7 mm (KWS 5101.. / 5102..)
8 mm (KWS 5001.. / 5002..)
Keyway
unperforated, PZ, BB or KABA
Distance for keyway
55 to 92 mm
Unit weight
0,300 kg (KWS 5001.. steel/aluminium)
0,110 kg (KWS 5001.. aluminium)
0,250 kg (KWS 5001.. brass)
