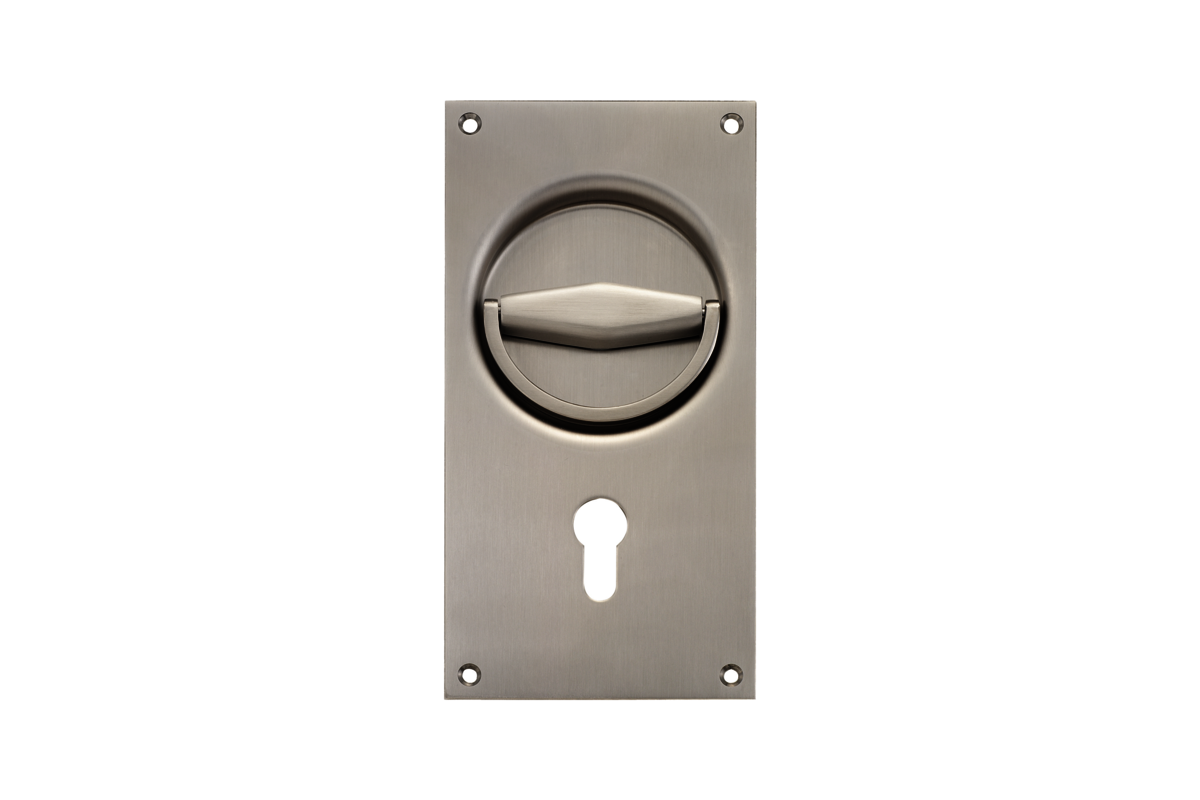

KWS 5004..
Flush ring handle
- ring handle fixed-pivoted
- spindle of the spindle part firmly riveted
- for flush installation
Material
steel/aluminium (grip recess: steel, ring handle: aluminium), aluminium, brass or stainless steel
Dimensions
100 x 200 mm
Female part / spindle part
7 mm (KWS 5104.. / 5105..)
8 mm (KWS 5004.. / 5005..)
9 mm (KWS 5007.. / 5008..)
10 mm (KWS 5010.. / 5011..)
Keyway
unperforated, PZ, BB or KABA
Distance for keyway
55 to 92 mm
Unit weight
0,380 kg (KWS 5004.. steel/aluminium)
0,150 kg (KWS 5004.. aluminium)
0,480 kg (KWS 5004.. brass)
0,430 kg (KWS 5004.. stainless steel)
