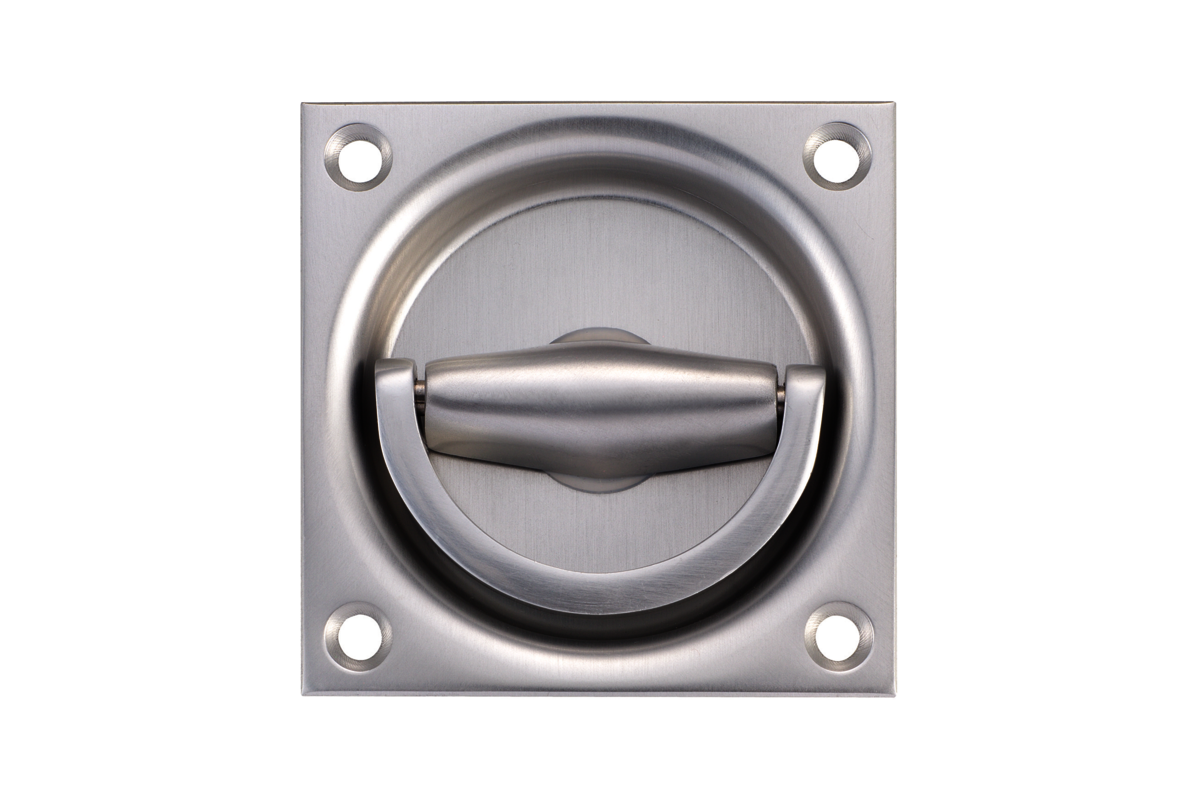

KWS 5013..
Flush ring handle
- ring handle fixed-pivoted
- spindle of the spindle part firmly riveted
- for flush installation
- also available with rotary handle from KWS 5047.. / 5048.. on request
- also available with fixed latch (KWS 5054..)
Material
steel/aluminium (grip recess: steel, ring handle: aluminium), aluminium or brass
Dimensions
70 x 70 mm
Female part / spindle part
7 mm (KWS 5113.. / 5114..)
8 mm (KWS 5013.. / 5014..)
Unit weight
0,300 kg (KWS 5001.. steel/aluminium)
0,110 kg (KWS 5001.. aluminium)
0,250 kg (KWS 5001.. brass)
