KWS 5016..

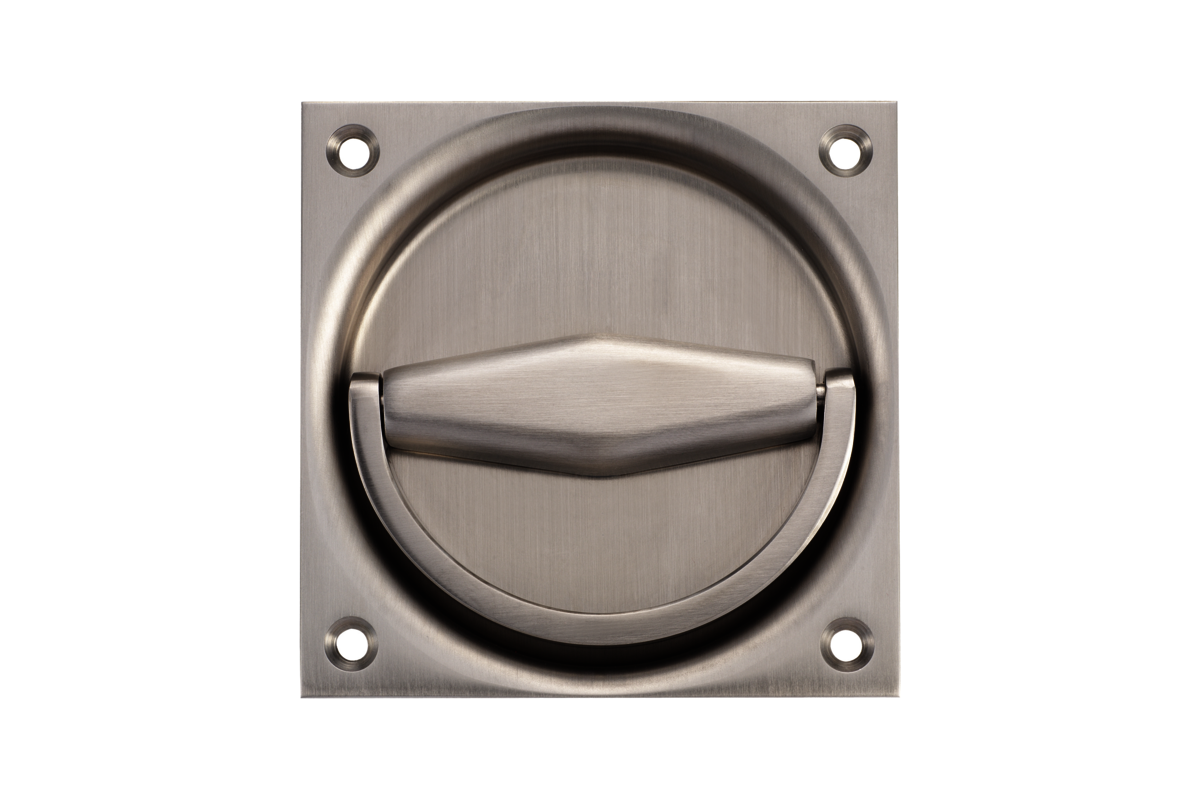

Flush ring handle
- ring handle fixed-pivoted
- spindle of the spindle part firmly riveted
- for flush installation
- also available with fixed latch (KWS 5051..)
Material
steel/aluminium (grip recess: steel, ring handle: aluminium), aluminium, brass or stainless steel

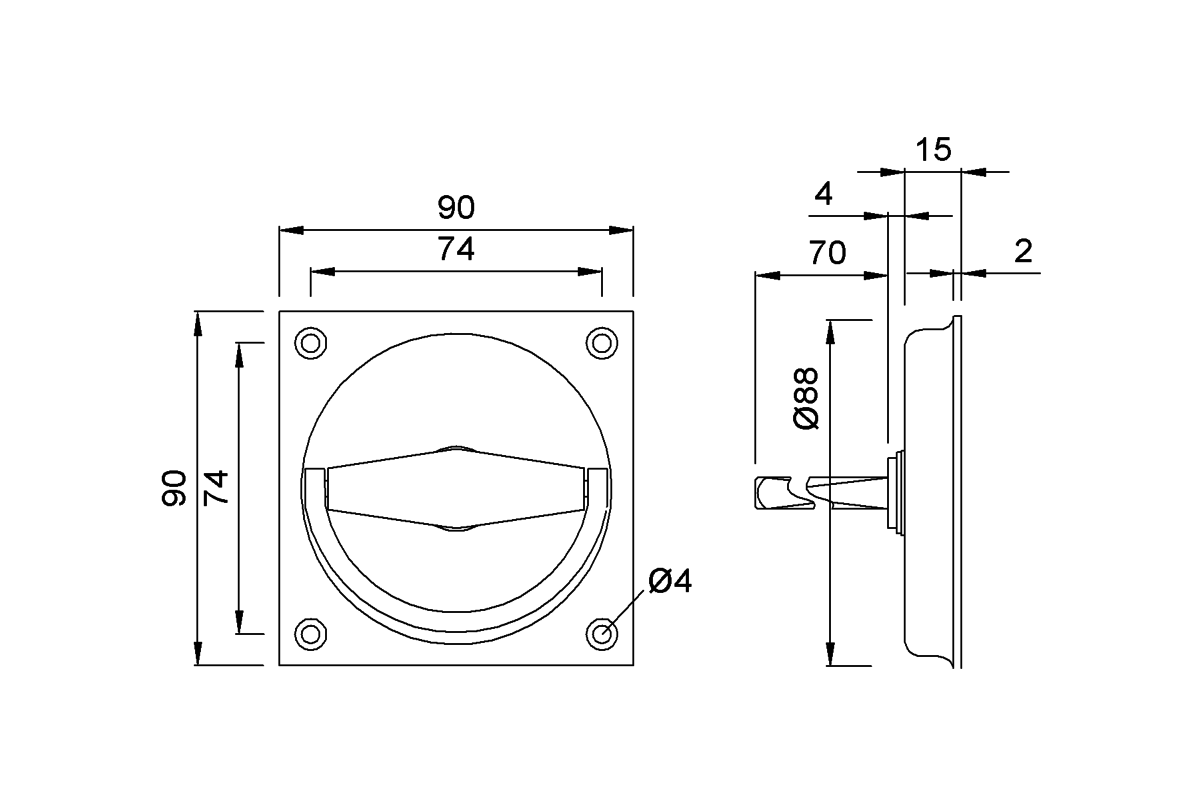

Dimensions
90 x 90 mm
Female part / spindle part
7 mm (KWS 5116.. / 5117..)
8 mm (KWS 5016.. / 5017..)
9 mm (KWS 5019.. / 5020..)
10 mm (KWS 5022.. / 5023..)
Unit weight
0,200 kg (KWS 5016.. steel/aluminium)
0,090 kg (KWS 5016.. aluminium)
0,280 kg (KWS 5016.. brass)
0,250 kg (KWS 5016.. stainless steel)
