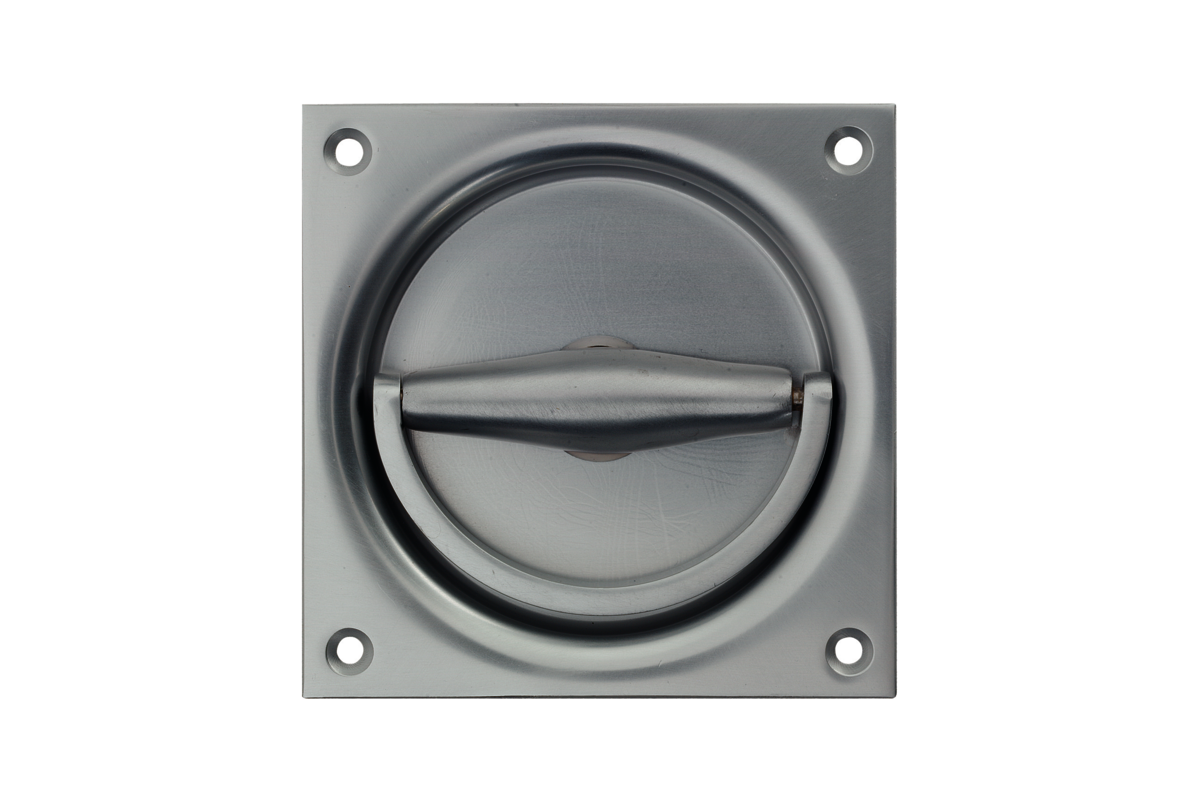

KWS 5025..
Flush ring handle
- ring handle fixed-pivoted
- spindle of the spindle part firmly riveted
- for flush installation
Material
steel/aluminium (grip recess: steel, ring handle: aluminium), aluminium, brass or stainless steel
Dimensions
100 x 100 mm
Female part / spindle part
7 mm (KWS 5125.. / 5126..)
8 mm (KWS 5025.. / 5026..)
9 mm (KWS 5028.. / 5029..)
10 mm (KWS 5031.. / 5032..)
Unit weight
0,230 kg (KWS 5025.. steel/aluminium)
0,100 kg (KWS 5025.. aluminium)
0,310 kg (KWS 5025.. brass)
0,280 kg (KWS 5025.. stainless steel)
