KWS 5160..

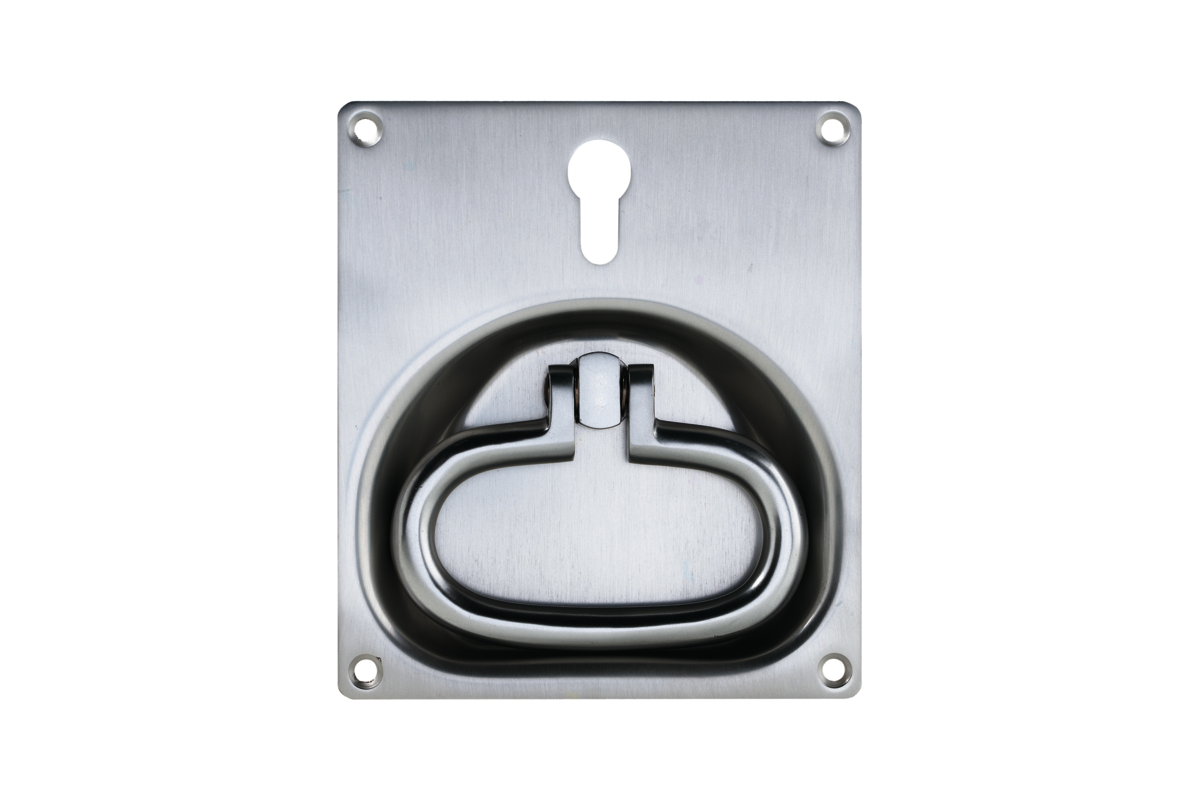

Flush ring handle
- ring handle fixed-pivoted
- spindle of the spindle part firmly riveted
- for flush installation
- cannot be used in pairs or in combination with a lever handle or door knob
Material
steel/aluminium (grip recess: steel, ring handle: aluminium) or aluminium
Dimensions
145 x 165 mm
Female part / spindle part
8 mm (KWS 5160.. / 5161..)
9 mm (KWS 5162.. / 5163..)
Keyway
unperforated or PZ
Distance for keyway
60 mm
Unit weight
0,586 kg (KWS 5160.. steel/aluminium)
0,300 kg (KWS 5160.. aluminium)
