KWS 5250..
Flush pull set for glass sliding doors
Material
aluminium, brass or stainless steel
inner part:
aluminium, anodised

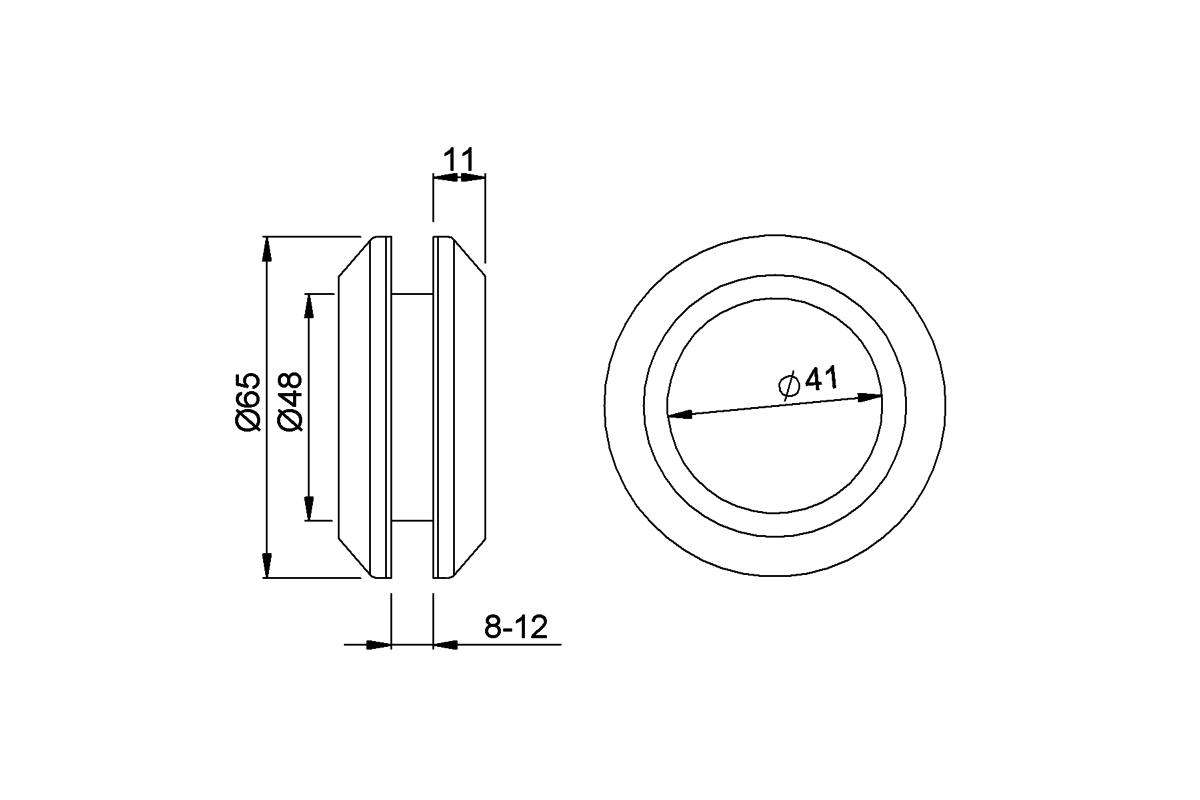

Diameter
Ø 65 mm
Door thickness
from 8 to 12 mm
Unit weight
0,095 kg (aluminium)
0,220 kg (brass)
0,200 kg (stainless steel)
Bore diameter: Ø 50 mm
Insert the inner part and twist the two outer rings with plastic discs firmly against each other.
