KWS 4530..
Handrail support with concave or flat rest
Material
aluminium
Form of rest

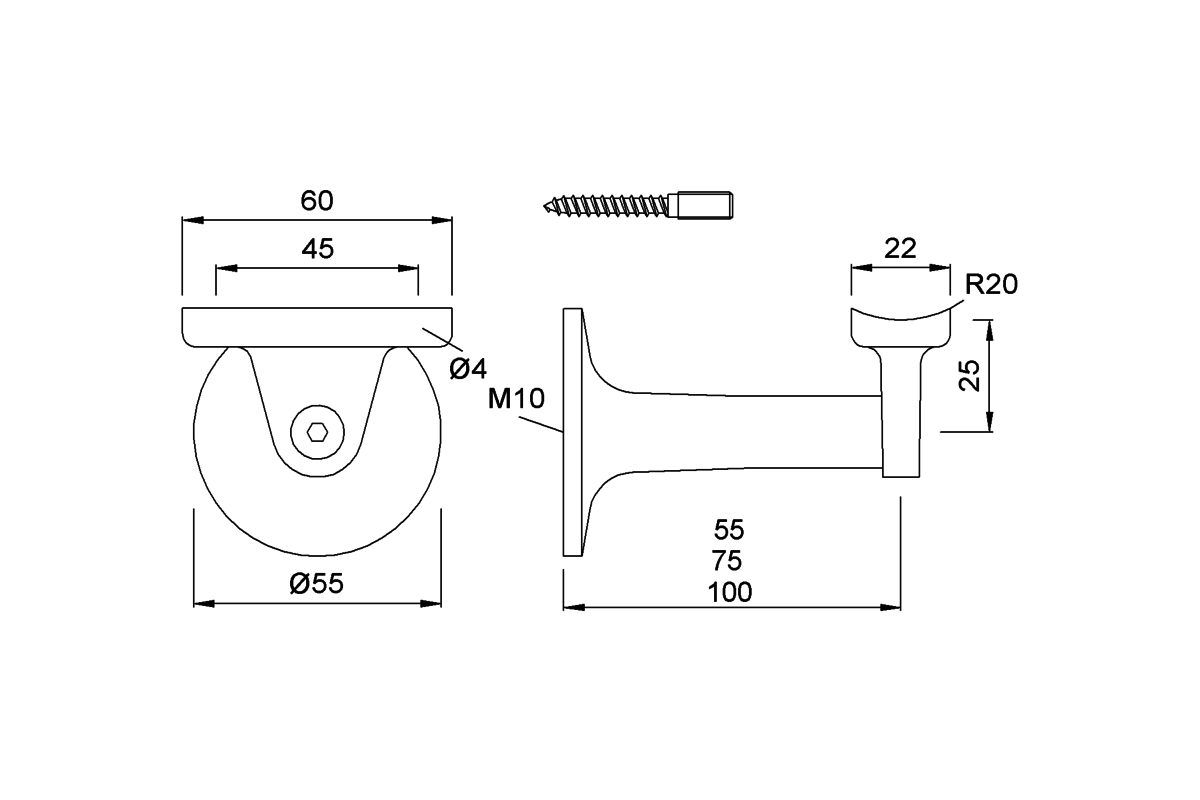

concave (KWS 4530.. / 4531.. / 4532..)

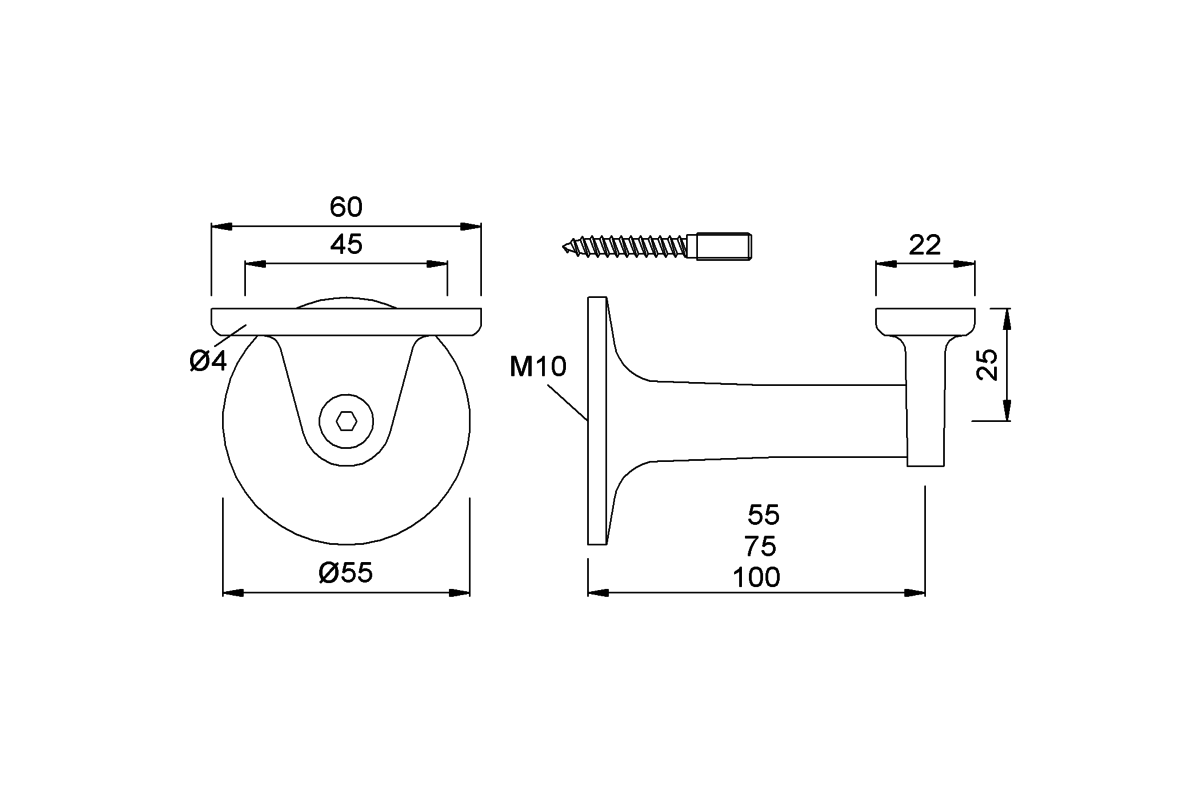

flat (KWS 4536.. / 4537.. / 4538..)
Wall clearance
55 mm (KWS 4530.. / 4536..)
75 mm (KWS 4531.. / 4537..)
100 mm (KWS 4532.. / 4538..)
Unit weight
0,110 kg (KWS 4530..)
The distance between the supports should be between 800 and 1.200 mm depending on the load and the wall condition.
