KWS 4560..

Handrail support with flat rest

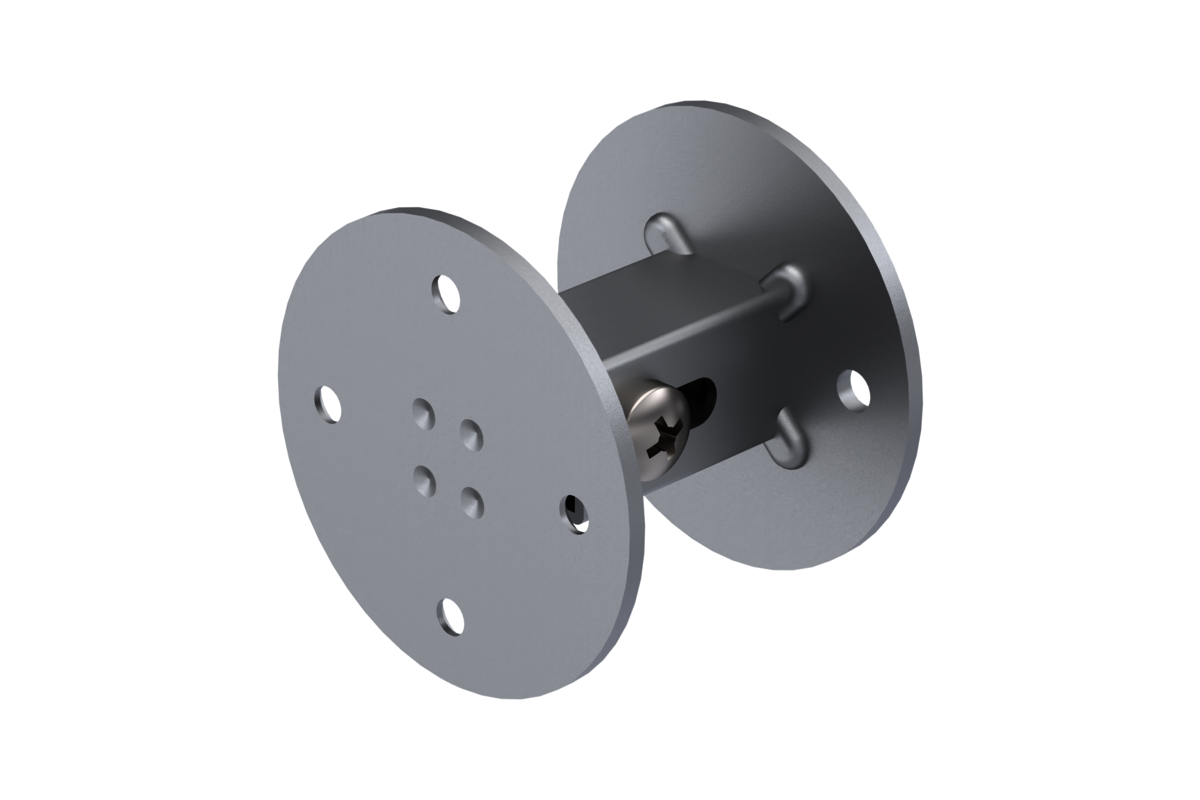

Picture shows KWS 4560.22

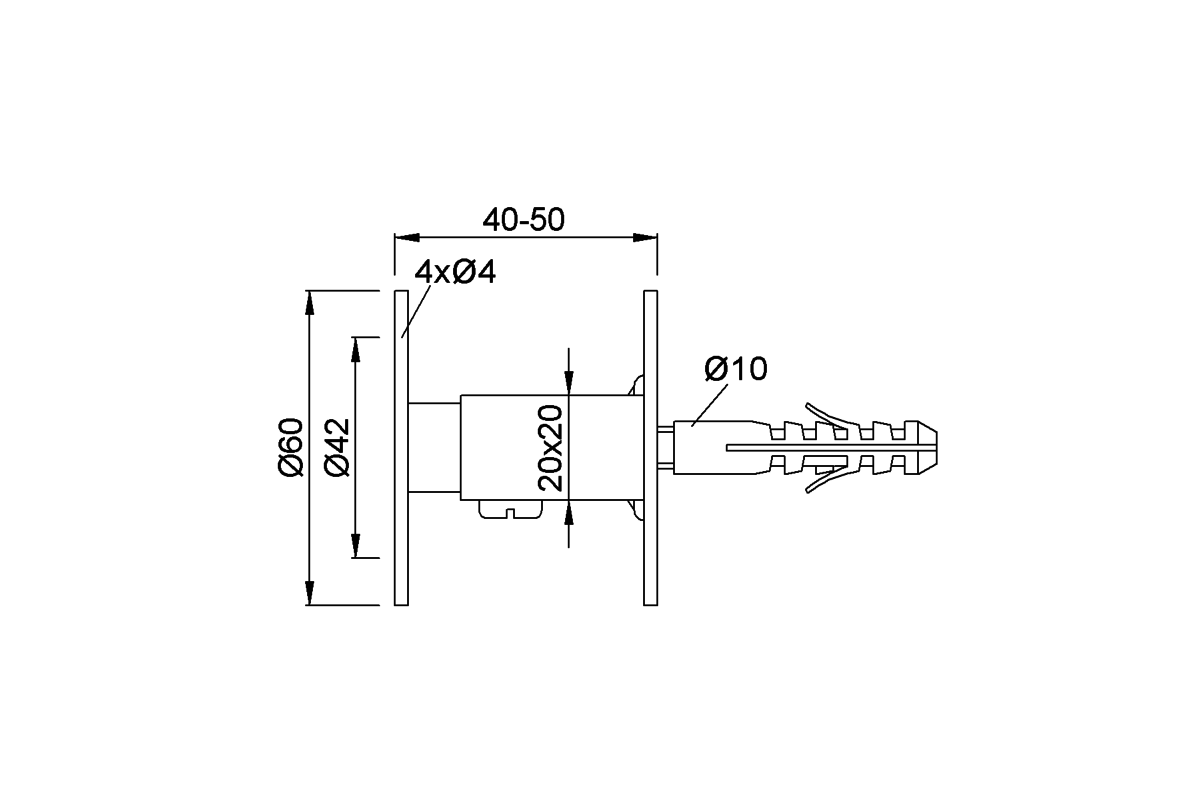

Drawing shows KWS 4560..

Do you have questions regarding the product?
We are happy to advise you!

Wall clearance

Please make a new selection.

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 4560..
Handrail support with flat rest
for front-mounted handrails
two parts
to be screwed
with mounting material

Material
steel

Wall clearance
adjustable:
from 40 to 50 mm

Unit weight
0,190 kg
Installation
Mark and bore holes with a distance spacing of 800 to 1.200 mm at the wall positions planned for the handrail and screw on the wall parts of the supports. Fix the counterparts on the handrail at the corresponding positions. Press the handrail with brackets into the wall supports, align and firmly join with screws.
Downloads
Product drawing (DWG)
