KWS 6101..

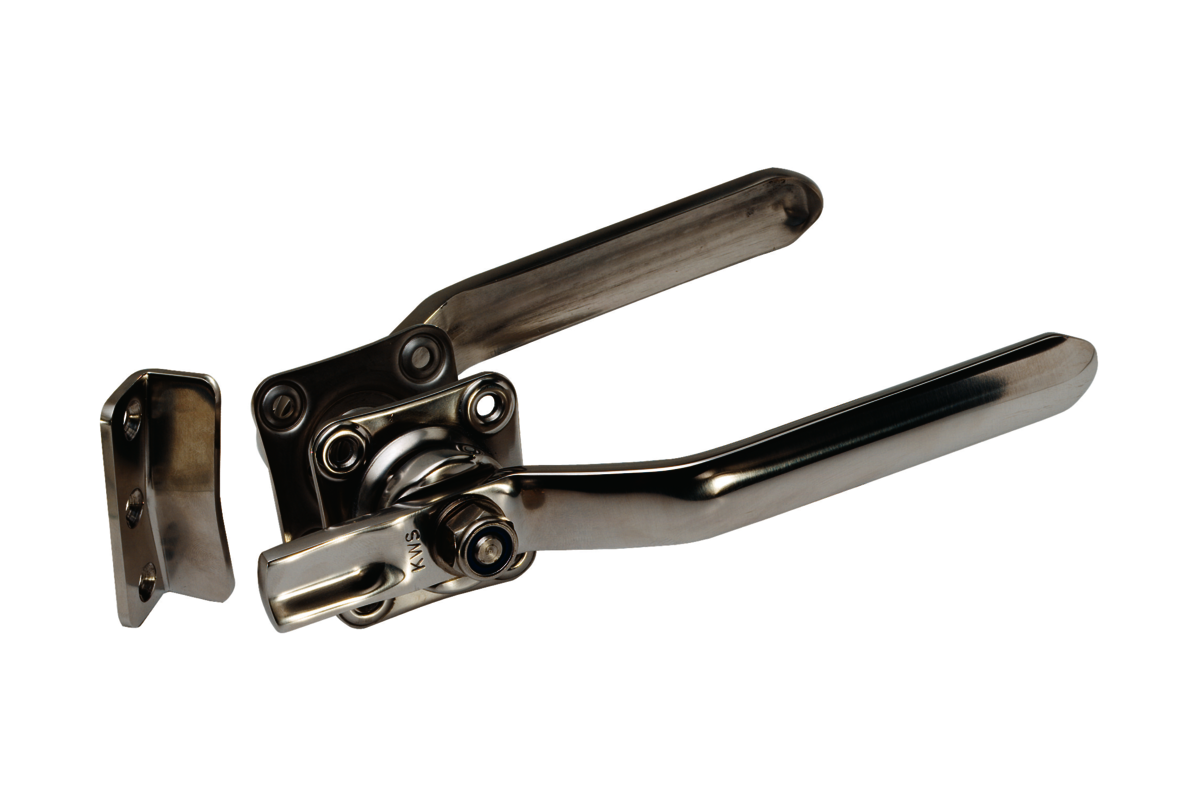

Locking handle for two-sided door operation
- with wedge plate, pressure spring and felt gaskets
- suitable for right- and left-opening doors
Material
steel or stainless steel
Door operation
two-sided

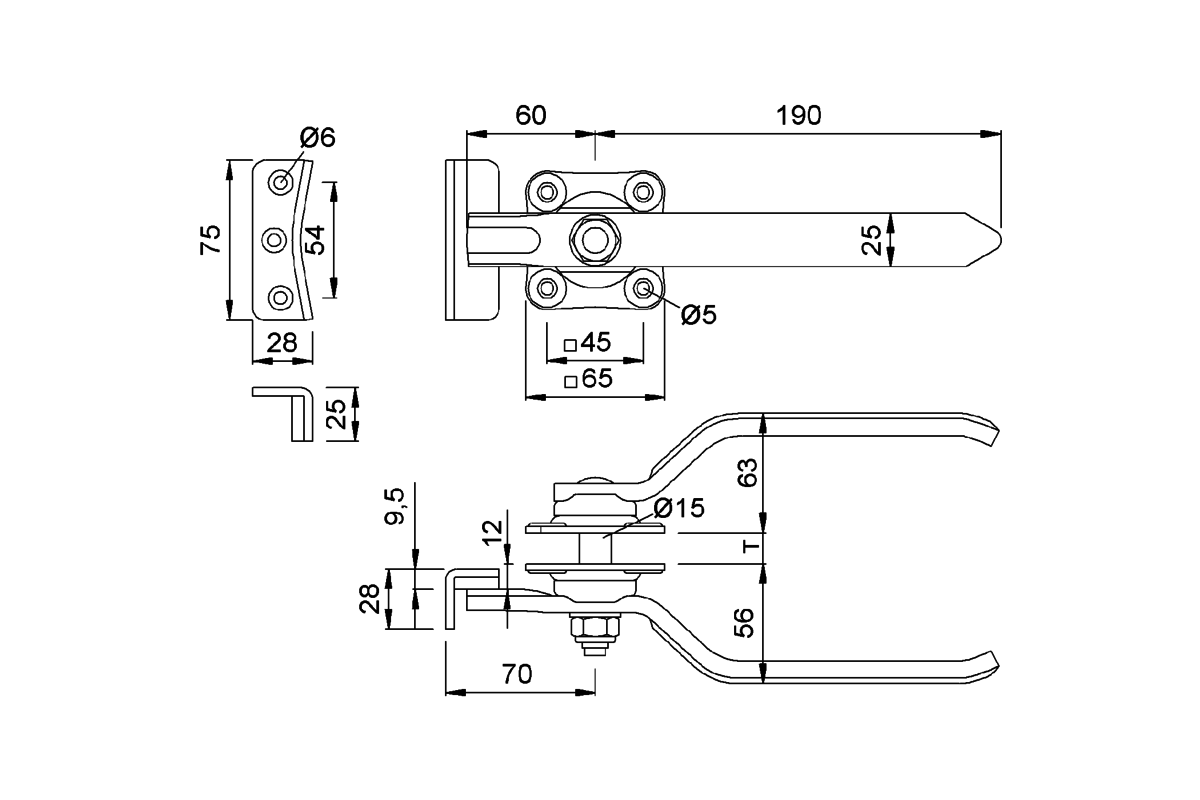

Door thickness (T)
25 to 30 mm (KWS 6101..)
30 to 35 mm (KWS 6102..)
35 to 40 mm (KWS 6103..)
40 to 45 mm (KWS 6104..)
45 to 50 mm (KWS 6105..)
50 to 55 mm (KWS 6106..)
55 to 60 mm (KWS 6107..)
60 to 65 mm (KWS 6108..)
65 to 70 mm (KWS 6109..)
other door thicknesses on request
Unit weight
1,230 kg (KWS 6101.. steel)
1,180 kg (KWS 6101.. stainless steel)
