KWS 4251..

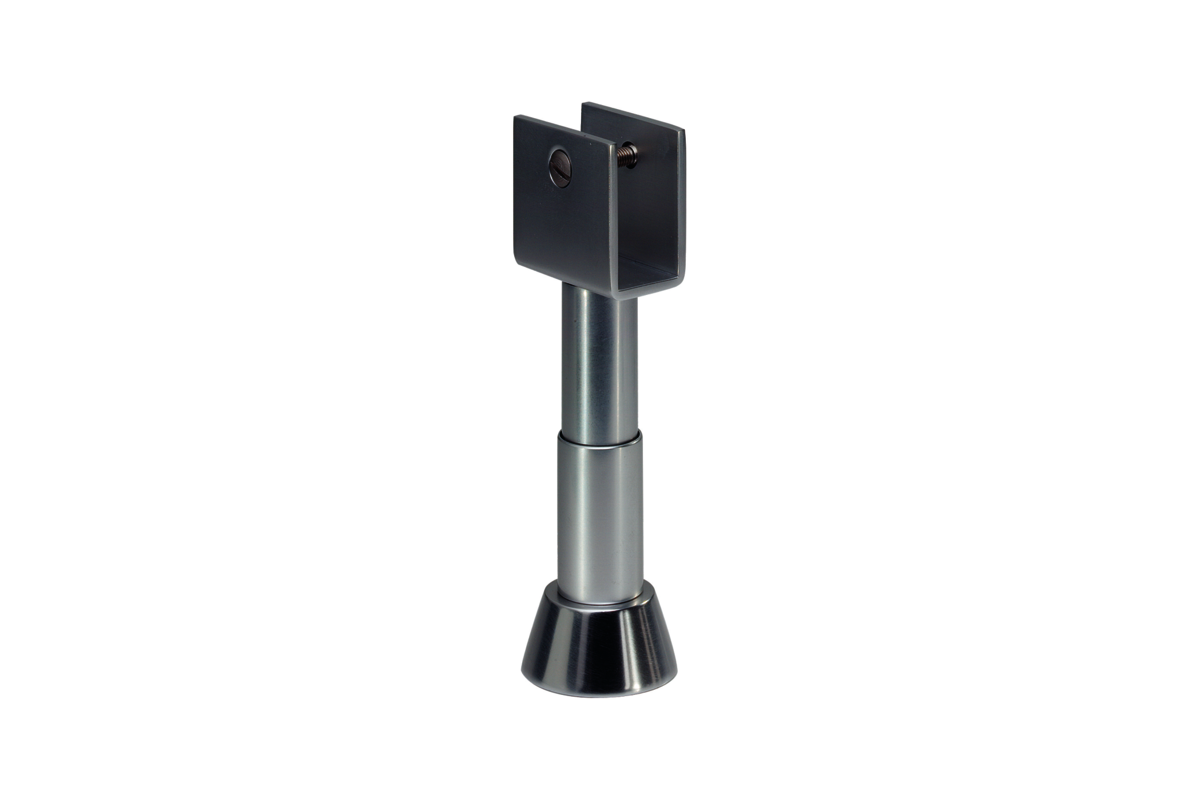

Partition support with U-shaped rest
Material
aluminium or stainless steel
Height
height adjustable:
100 to 125 mm (KWS 4251..)
125 to 150 mm (KWS 4252..)
150 to 175 mm (KWS 4253..)
Wall thickness
19 mm
Unit weight
0,210 kg (KWS 4251.. aluminium)
0,440 kg (KWS 4251.. stainless steel)
Screw the floor rosette with inserted washer onto the floor, insert the support, turn it to the desired height with an open-ended spanner and tighten it with a round nut. Pull the sleeve down. Secure the support with a clamping screw.
To offset possible deviations when boring the floor plug hole, every partition support is supplied with an additional eccentric disc, which is used instead of the washer. Deviations of up to 4 mm from the centre can be equalised.
With every packaging unit installation instructions are included.
