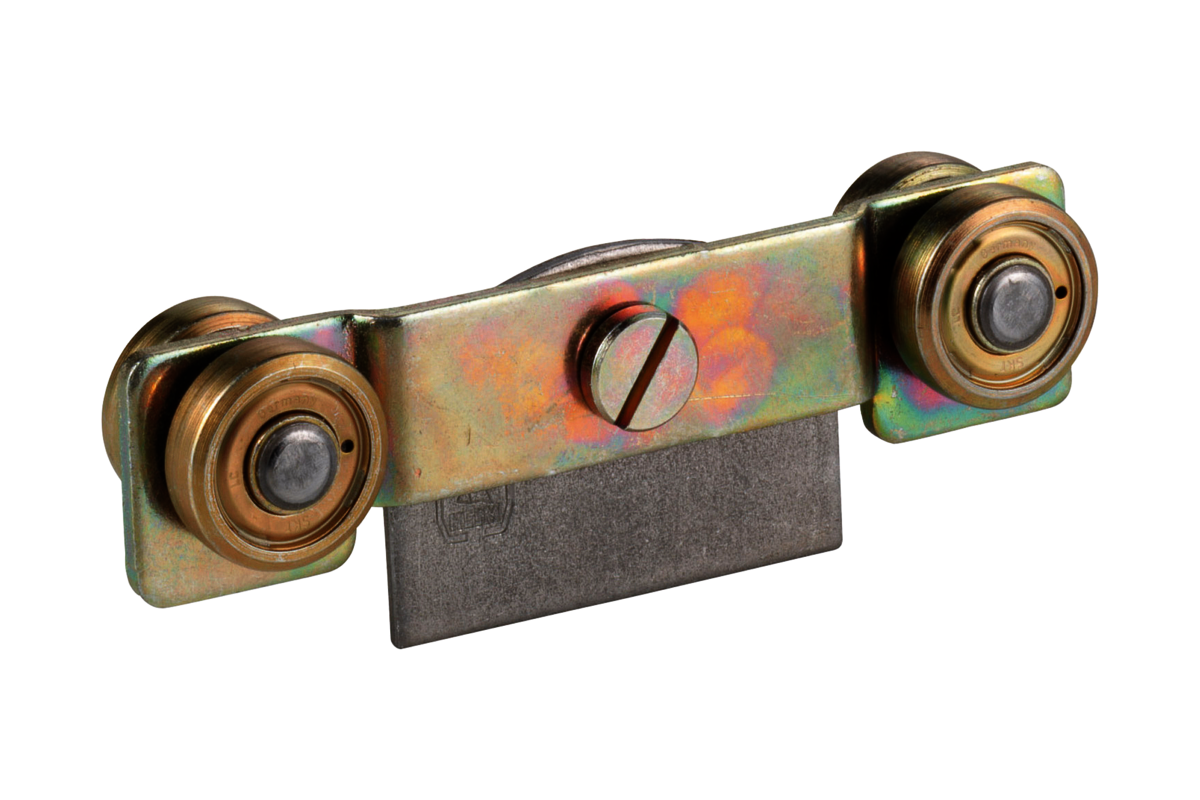

HELM -91 S
Trolley
- double-pair
- with pendulum joint
- hardened rollers
- bar for welding on
- low installation height
- no adjustment possibility
Material
steel
pendulum joint:
plastic (with HELM 191 S / 391 S / 491 S) or steel (with HELM 591 S / 691 S / 791 S)
Leaf weight
max. 100 kg (HELM 191 S / 019121)
max. 200 kg (HELM 391 S / 039121)
max. 400 kg (HELM 491 S / 049121)
max. 600 kg (HELM 591 S / 059121)
max. 1.200 kg (HELM 691 S / 069121)
max. 2.000 kg (HELM 791 S / 079121)

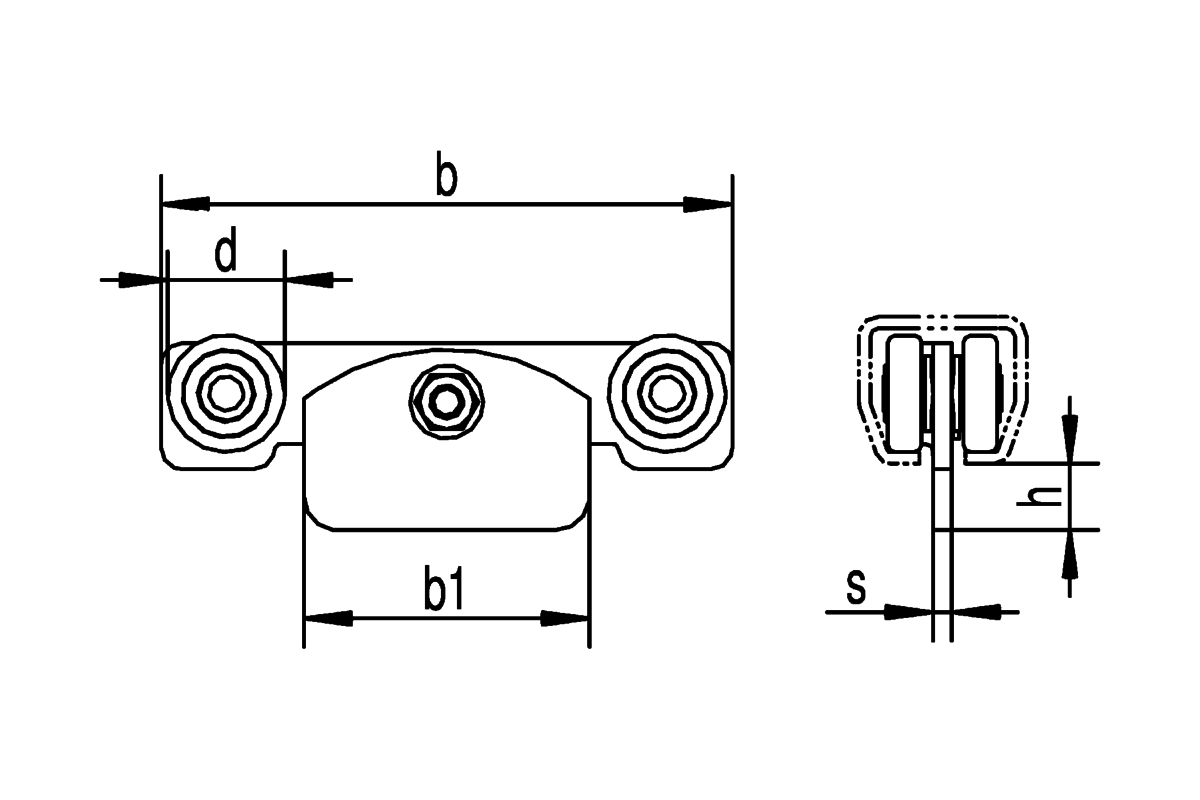

Dimensions (in mm)
| Article Art. no. | HELM 191 S HELM 019121 | HELM 391 S HELM 039121 | HELM 491 S HELM 049121 | HELM 591 S HELM 059121 | HELM 691 S HELM 069121 | HELM 791 S HELM 079121 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 | HELM 700 |
| b | 105 | 136 | 180 | 238 | 234 | 308 |
| b1 | 50 | 68 | 90 | 110 | 60 | 80 |
| d1 | Ø 22 | Ø 28 | Ø 34 | Ø 48 | Ø 60 | Ø 89 |
| h | 11,75 | 16 | 20,5 | 28 | 18,5 | 29 |
| s | 3 | 4,5 | 6 | 8 | 15 | 19,5 |
